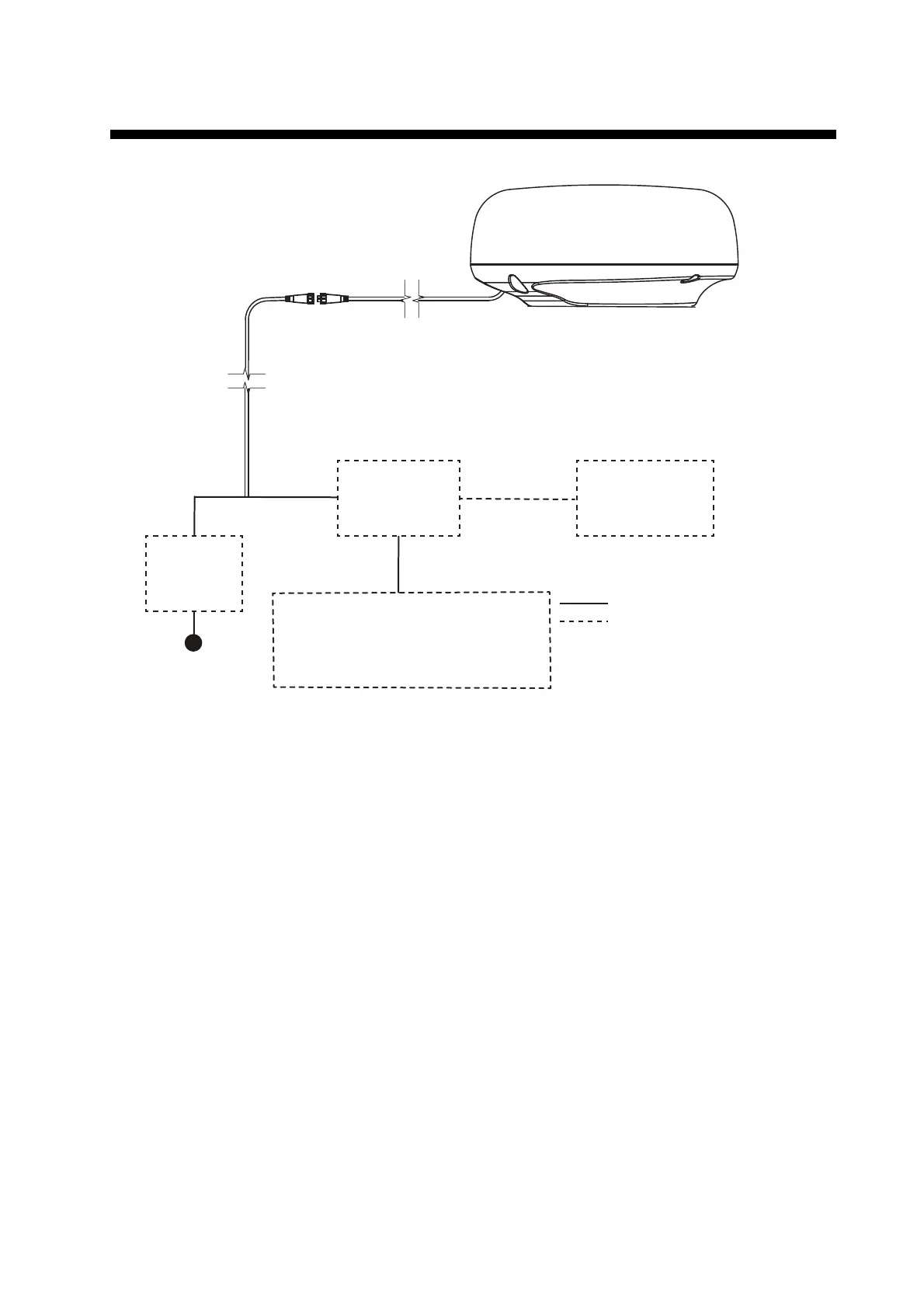

SYSTEM CONFIGURATION
Power Supply
12-24 VDC
RADAR SENSOR
DRS4D X-Class
Marine Radar (Display Unit)
FR-10/12
LAN cable
Power/LAN cable (1 m, pre-attached)
Cable Assy.
FRU-2P5S-FF-10M-A (10 m) /
FRU-2P5S-FF-15M-A (15 m) /
FRU-2P5S-FF-20M-A (20 m) /
FRU-2P5S-FF-30M-A (30 m)
Distribution
Switchboard
Ethernet
HUB-101
Sub Display,
LAN compatible
chart plotter
: Standard supply:
: Option, or local supply
TZTL12F/TZTL15F/TZT2BB
*1
TZT9F/TZT12F/TZT16F/TZT19F
*2
*1
: Software version 8.01 or higher (scheduled)
*2
: Software version 3.01 or higher (scheduled)
Note: When using the EMC Modification Kit
(OP03-259), refer to the power/LAN cable
replacement instructions (C32-01803),
included with the kit.
