1. INSTALLATION
2
• It is almost impossible to install the antenna unit in a place where there are no ob-
stacles all around. When checking the operation, check if there is a blind spot. if
there is a blind spot, note the direction.
• Avoid mounting directly above the cabin where crew (occupants) are present, as the
motor drive noise of the antenna may echo inside the cabin.
• Observe the compass safe distances mentioned in the safety instructions, to pre-
vent interference to a magnetic compass.
• Referring to the outline drawings at the back of this manual, allow space for main-
tenance and service.
• The antenna unit should not be operated or stored in any position other than the
proper operational position (upright).
• Use the optional waterproof kit when using a retractable mast.

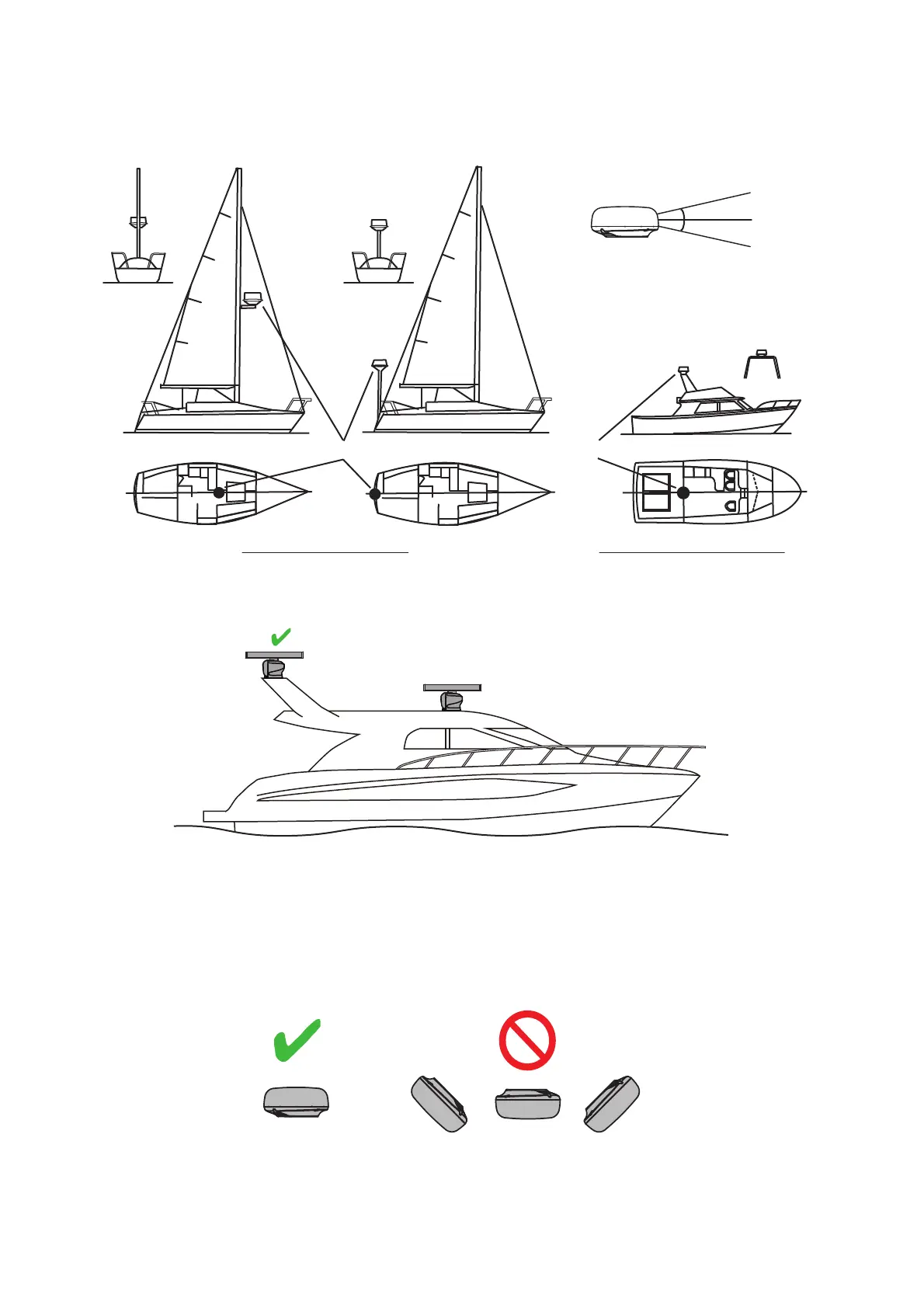

Installation on a sailboat
Installation on a powerboat
Radar sensorRadar sensorRadar sensor
Radar sensorRadar sensorRadar sensor
Rear View
(Rear View)
(Rear View)
Horizontal Beam Width
12.5°
12.5°
