Furuno FAR-2238S-NXT-BB User Manual

1. OPERATIONAL OVERVIEW
1-103

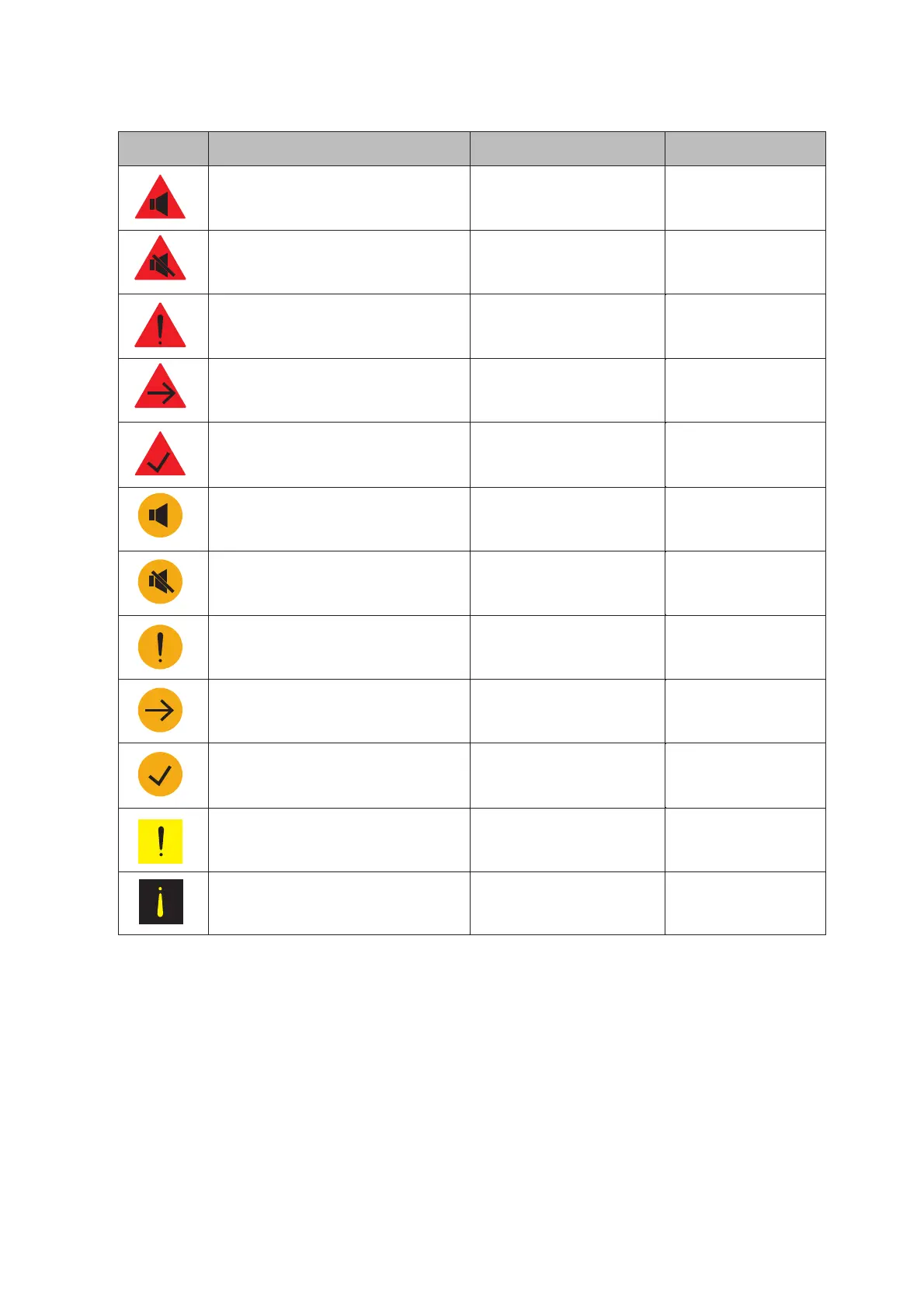

1.52.6 Alert icons and their meanings
Icon Status Visual indication Audible alert
Active - unacknowledged alarm
Active - acknowledged alarm
Active - responsibility
transferred alarm
Rectified - unacknowledged
alarm
Active - unacknowledged
warning
Active - silenced alarm
Red, flashing
Yellow-orange, flashing
Active - silenced warning Yellow-orange, flashing
Red, flashing Silent
Red Silent
Red Silent
Red, flashing Silent
Silent
Active - acknowledged warning Yellow-orange Silent
Active - responsibility
transferred warning
Yellow-orange Silent
Rectified - unacknowledged
warning
Yellow-orange, flashing Silent
Caution Yellow Silent
3 short, audible
alerts repeated
every 7 seconds.
2 short, audible
alerts repeated
every 60 seconds.
Indication
SilentYellow

Furuno FAR-2238S-NXT-BB Specifications

General

Display Size	12.1 inches
Antenna Type	Open Array
Magnetron	Yes
AIS Display	Yes
Antenna Rotation Speed	24/48 rpm
Range	0.125 to 48 nautical miles
Antenna Length	1.8 m (6 ft) or 2.4 m (8 ft)
Target Tracking	Up to 100 targets
Radar Type	Solid State
Power Supply	24 VDC
Operating Temperature	-25°C to +55°C
