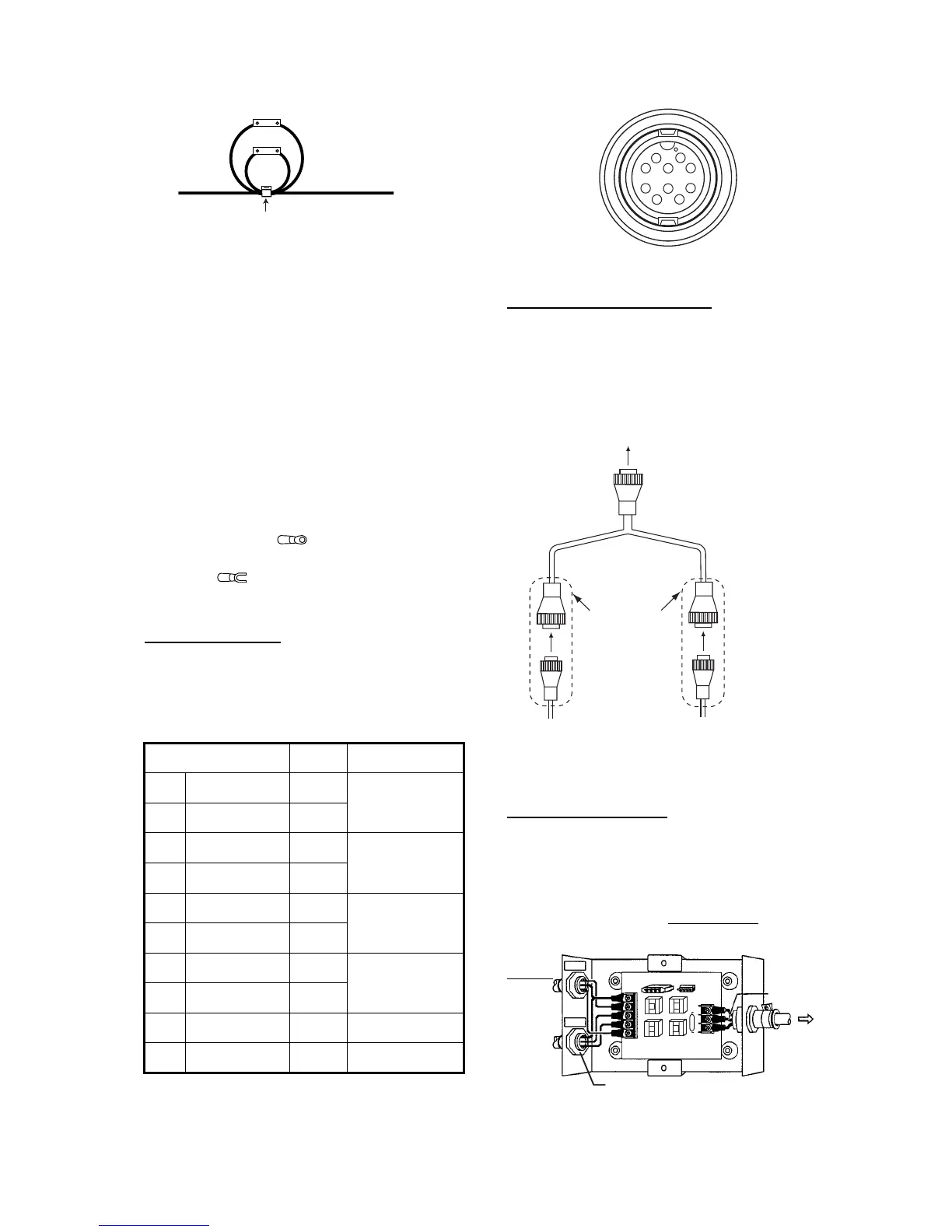

4. INSTALLATION
36
How to fix fuse holders
Establishing the ground
The ground wire (1.25 sq or more, local
supply) should be as short as possible. The
signal line ground is isolated from the chassis
ground, however the power line is not insu-
lated. Therefore, when connecting eternal
equipment having positive ground, do not
ground the signal line to the chassis. If exces-
sive noise shows on the screen, the ground
may be inadequate. In this case, attach a
steel plate measuring 20 cm by 30 cm on the
outside of the hull to provide a ground point.
Connect the ground wire there. Use a
"closed" type lug ( ) to make the connec-
tion at the display unit. Do not use an "open"
type lug ( ).
Optional equipment
Power connector
The power supply port is commonly used for
connection of external equipment such as a
GPS receiver or wind indicator. Refer to the
interconnection diagram to connect cables.
Pin assignment (front view)
Water temp/speed sensor
Connect the optional water temp/speed
sensor to the XDR port with the optional con-
version cable (Type 02S4147) as shown
below.
Connection of conversion cable 02S4147
Optional transducer
The optional matching box (Type: MB-1100,
Code No.: 000-041-353) is required to con-
nect the optional transducers 50B-6, 50B-6B,
200B-5S, 50/200-1T.
Matching box MB-1100, cover removed
Connector Color Remarks
1 TD-A WHT
IEC61162-1/
NMEA0183
2TD-B BLU
3RD-A YEL
IEC61162-1/
NMEA0183
4 RD-B GRN
5 TEMP-IN BRN
Temperature
analog input
6TEMP-IN-0V ORG
7 DC-P-IN (+) RED
Power input
12-24 VDC
8 DC-M-IN (-) BLK
9NC -
10 SHIELD -
Power supply line
To Next Page
