MOUNTING
1.1 Display Unit
Mounting considerations
The display unit can be installed on a tabletop or on the overhead.
When selecting a mounting location for the display unit keep the
following in mind:
• Keep the display unit out of direct sunlight.
• The temperature and humidity should be moderate and stable.
• Locate the unit away from exhaust pipes and vents.
• The mounting location should be well ventilated.
• Mount the unit where shock and vibration are minimal.
• Keep the unit away from electromagnetic field-generating equip-
ment such as motors and generators.
• For maintenance and checking purposes, leave sufficient space
at the sides and rear of the unit and leave slack in cables.
• A magnetcompass will be affected if placed too close to the
display unit. Observe the following compass safe distances to
prevent disturbance to the magnetcompass:
Standard compass: 0.8 meters
Steering compass: 0.6 meters
Cover
Tabletop
Overhead

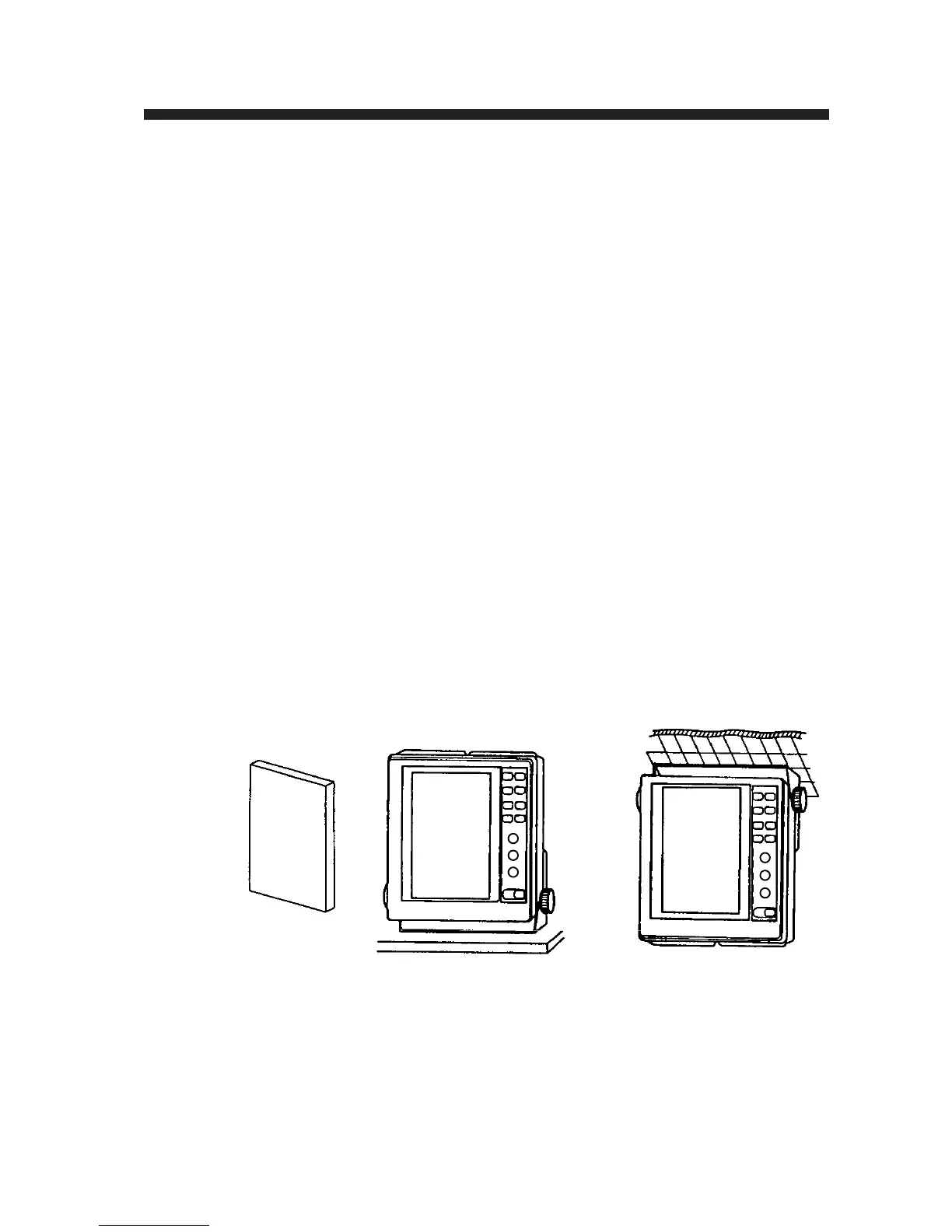

Figure 1-1 Display unit mounting methods
To Next Page
