3.9 How to Configure the Own Ship Mark
Set your ship’s length and width and the position of the transducer, to accurately dis-
play the own ship mark on the screen.
1. Access the System menu, referring to .
2. Select [Own Ship Mark] then left-click.
3. Select [Ship’s Length] then left-click.
4. Use the scrollwheel to set length. The setting range is 15 to 150 m.
5. Set ship’s width and transducer positions similarly.
• [Ship’s Width]: The width of the ship at
its widest point. (Setting range: 5 to 30
m)
• [TD Position 1]: Distance from transduc-
er to bow. (Setting range: 5 to 50 m)
• [TD Position 2]: Distance from transduc-
er to keel. Select “+” for starboard, “-” for
port. (Setting range: -10 to 10m)
6. Long-press the MENU/ESC key to close
all menus.
3.10 Others Menu
The [Others] menu sets the equipment according to the external equipment connect-
ed.
3.10.1 Interface Setting menu
NMEA1/2 Baud Rate: Set the transmission rate for the NMEA 1 and NMEA 2 ports.
(4800 bps, 9600 bps, 19200 bps, 38400 bps)
CIF1/2 Baud Rate: Set the transmission rate for the CIF 1 and CIF 2 ports. (2400 bps,
4800 bps, 9600 bps, 19200 bps)
Sensor Baud Rate: Set the transmission rate of the satellite compass, which is con-
nected to the transceiver unit. For a FURUNO satellite compass, select 38400. (4800
bps, 9600 bps, 19200 bps, 38400 bps) Set the NMEA output format for the satellite
compass as follows: - Output format: IEC ed1 - Sentence: ATT, HVE (disable all other
sentences except those two) - Baud rate: 38400 bps - Interval: 25 ms (Any talker)
EXT KP Input: Set the input logic of KP from external equipment. (Disable, Enable)
Disable: Disable external KP. Enable: Use KP from external equipment.
PC Connection: Select whether a PC is connected or not. (Enable, Disable)

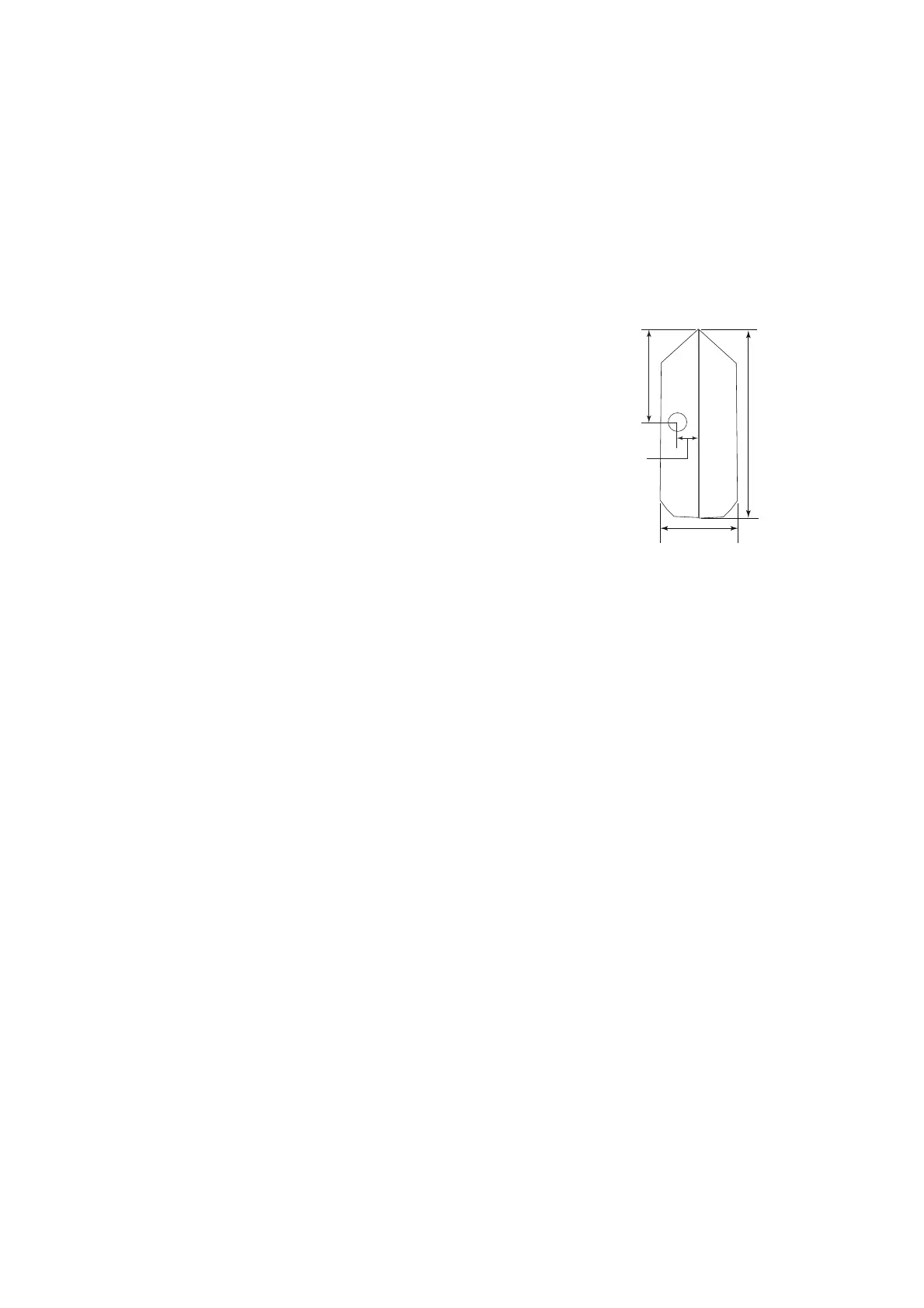

TD Position 1
Ship’s
Length
Ship's Width
TD Position 2
(Negative value
for port)
