When coaxial cable RG-10/UY
(shipyard s
upply) is used, attach the coaxial plug
M-P-7 (dockyard supply) as shown on the next page.

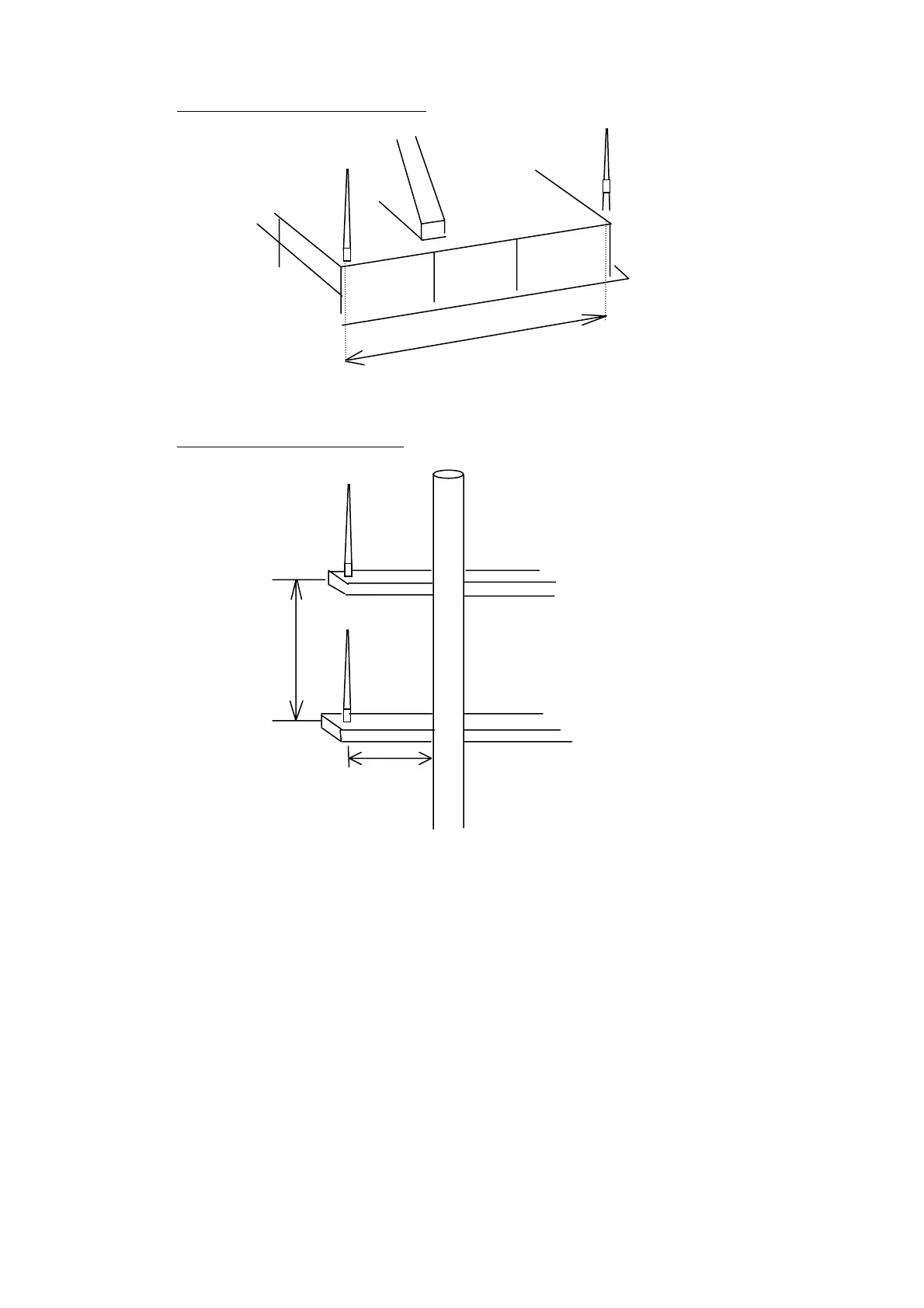

Horizontal sep
aration distance
More than 10 m
More than 0.5 m
More than
2.8 m
V
ertical separation dist
ance
Other VHF whip antenna
Whip antenna for
AIS
(GPS/VHF combined
antenna)
9
11
