Fusion MS-AM702 User Manual

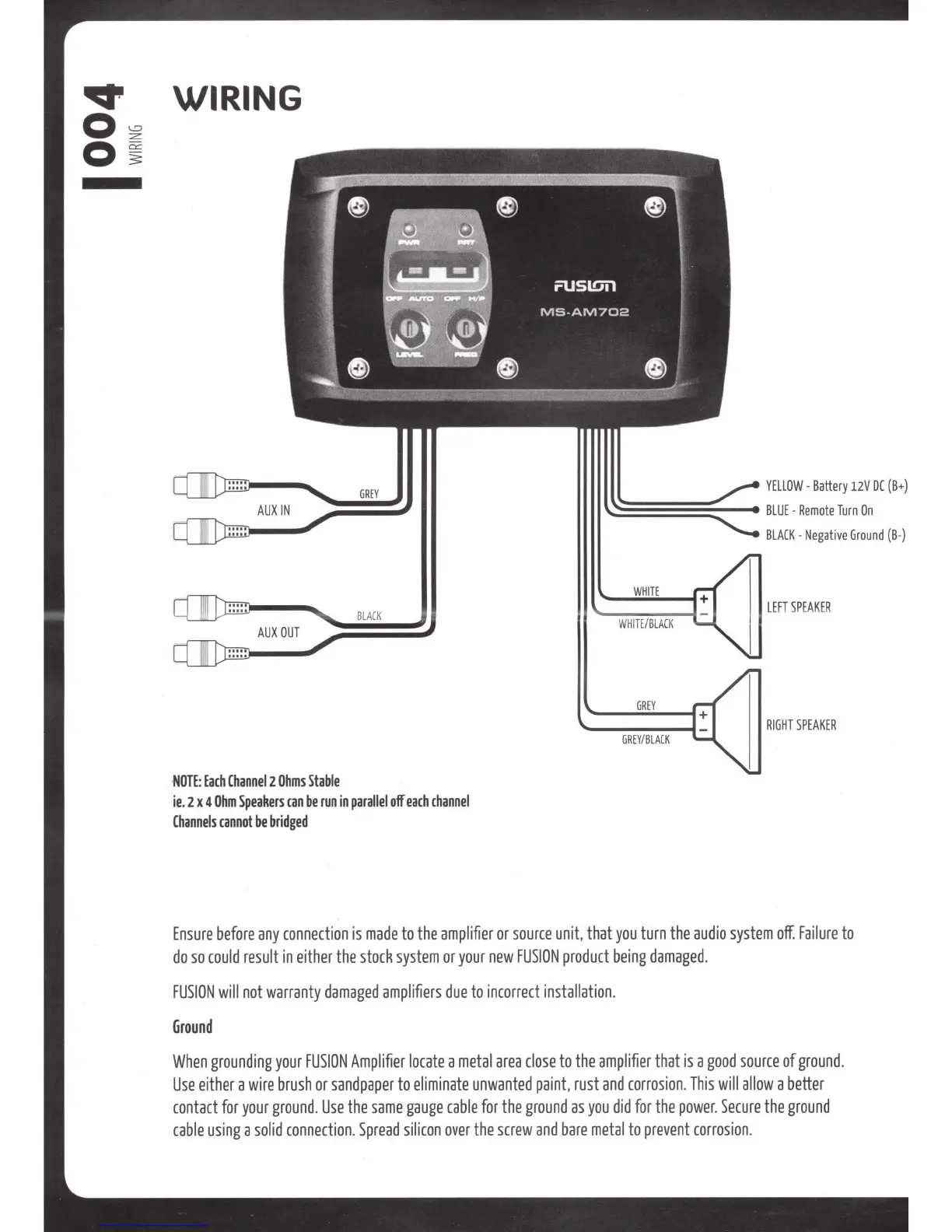

IIIII' WIRING
o~
0 3
GREY
BlACK
· NOTE: Each Channel2 Ohms Stable
ie. 2 x 4 Ohm Speakers can be run in parallel off each channel
Channels cannot be bridged
YELLOW - Batte ry 12V DC (B+)
~====~__,. BLUE- Remote Turn On
BLACK - Negative Ground (B -)
LEFT SPEAKER
RIGHT SPEAK ER
Ensure before any connection is made to the amplifier or source unit, that you turn the audio system off. Failure to
do so could result in either the stock system or your new FUSION product being damaged.
FUSION will not warranty damaged amplifiers due to incorrect installation.
Ground
When grounding your FUSION Amplifier locate a metal area close to the amplifier that is a good source of ground .
Use either a wire brush or sandpaper to eliminate unwanted paint, rust and corrosion. This will allow a better
contact for your ground. Use the same gauge cable for the ground as you did for the power. Secure the ground
cable using a solid connection. Spread silicon over the screw and bare metal to prevent corrosion.

Fusion MS-AM702 Specifications

General

Brand	Fusion
Model	MS-AM702
Category	Marine Audio
Language	English
