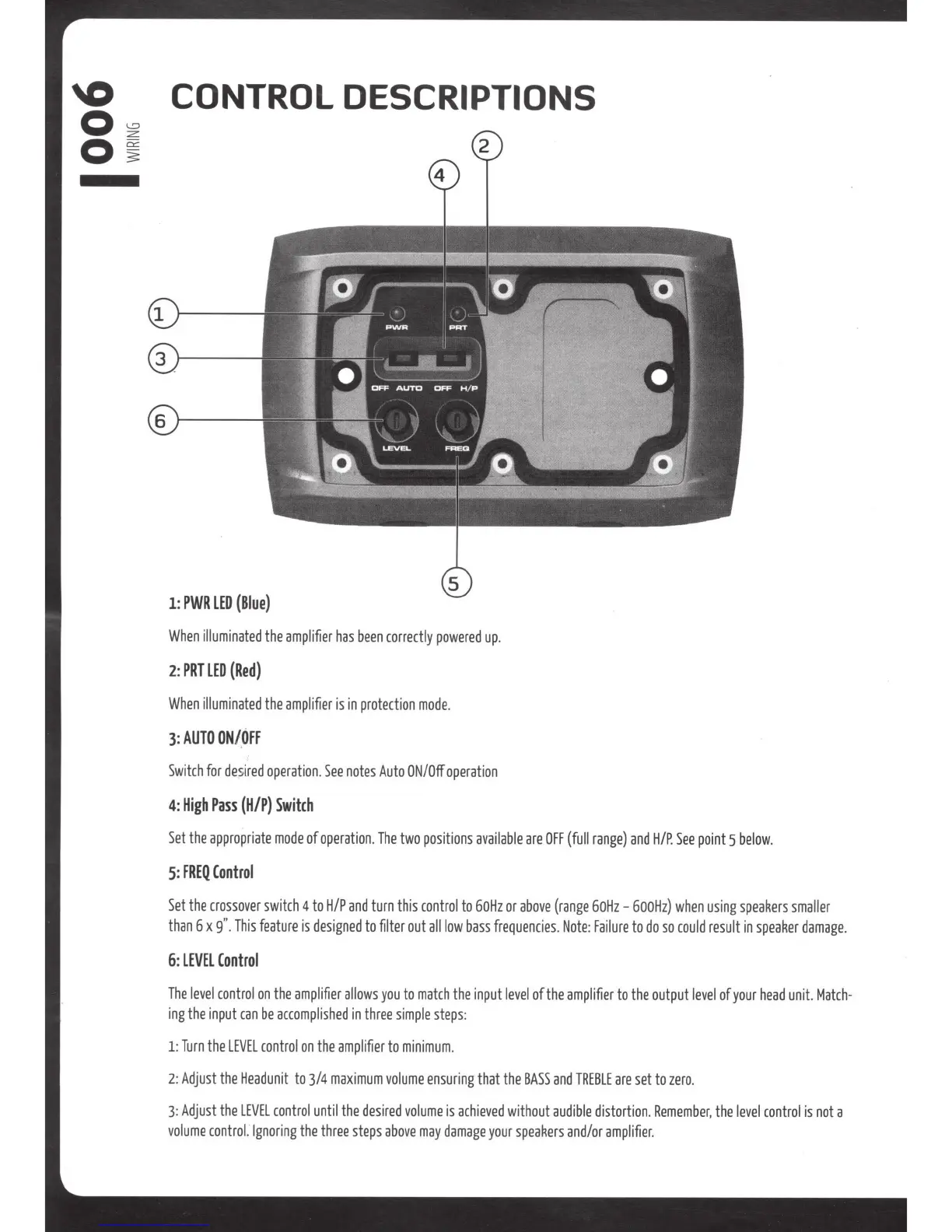

CONTROL DESCRIPTIONS
1:
PWR
LED
(Blue)
When
illuminated
the
amplifier
has
been
correctly
powered
up
.
2:
PRT
LED
(Red)
When
illuminated
the
amplifier
is
in
protection
mode.
3:
AUTO
ON/
.
OFF
Switch
for
desired
operation
.
See
notes
Auto
ON/Off
operation
4:
High
Pass
(HIP)
Switch
Set
the
appropriate
mode
of
operation
.
The
two
positions
available
are
OFF
(full
range)
and
H/P.
See
point
5
below.
5:
FREQ
Control
Set
the
crossover
switch
4
to
H/P
and
turn
this
control
to
60Hz
or
above
(range
60Hz-
600Hz)
when
us
i
ng
speakers
smaller
than
6 x
g"
.
This
feature
is
designed
to
filter
out
all
low
bass
fr
equencies
.
Note:
Failure
to
do
so
could
r
esult
in
speaker
damage
.
6:
LEVEL
Control
The
level
control
on
the
amplifier
allows
you
to
match
the
input
level
of
the
amplifier
to
the
output
level
of
your
head
un
i
t.
Match
-
i
ng
the
input
can
be
accomplished
in
three
simple
steps
:
1:
Turn
the
LEVEL
control
on
the
amplifier
to
minimum
.
2:
Adjust
the
Head
unit
to
3/4
maximum
volume
ensuring
that
the
BASS
and
TREBLE
are
set
to
z
ero
.
3:
Adjust
the
LEVEL
control
until
the
desired
volume
is
achieved
wi
thout
audible
distortion
.
Remembe
r,
the
level
control
is
not
a
volume
control.
Ignoring
the
three
steps
above
may
damage
your
speakers
and/or
amplifie
r.
