SERIES AND PARALLEL SUBWOOFER WIRING FOR
DUAL VOICE COIL SUBWOOFERS

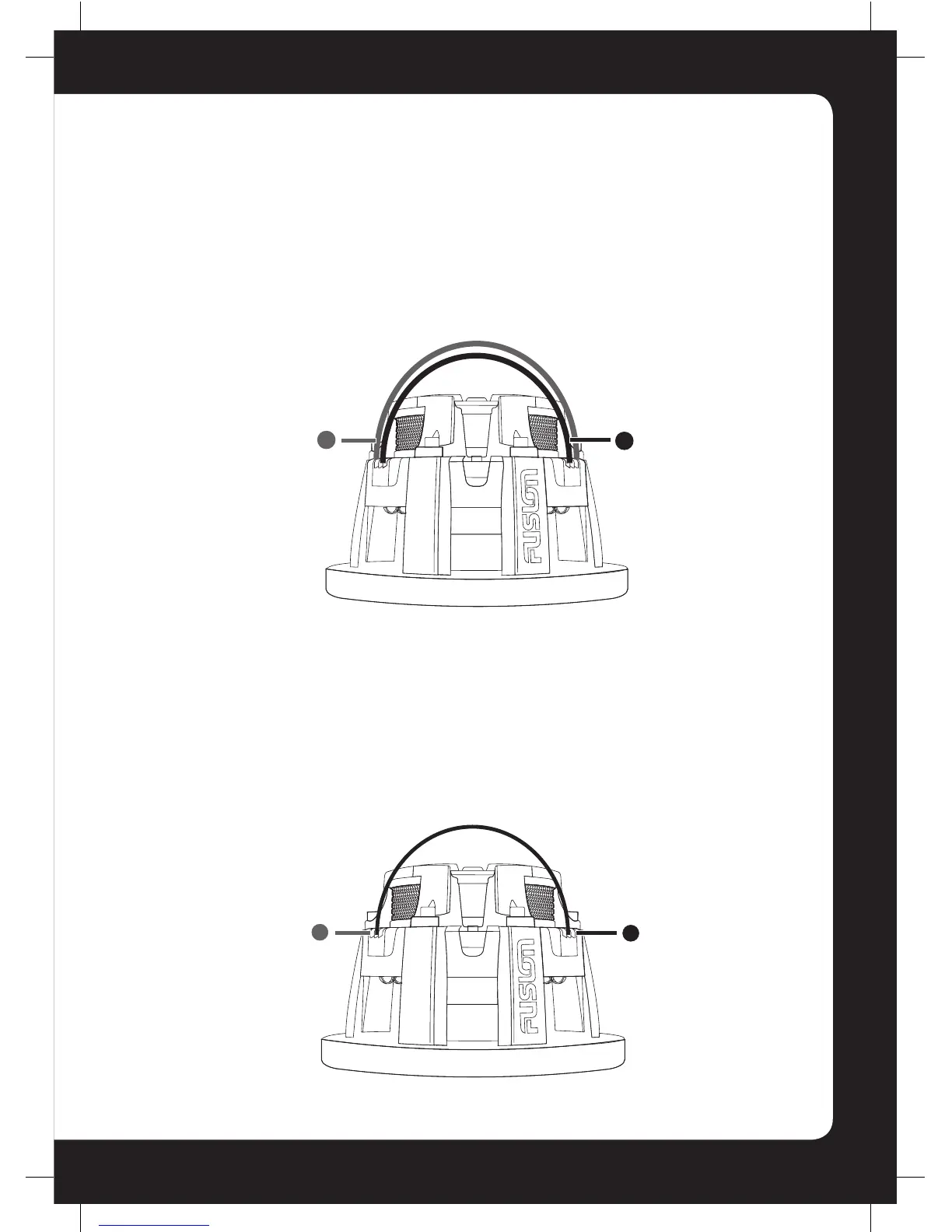

PARALLEL VOICE COIL WIRING (2 OHM OPERATION)
To wire a 4 Ohm DVC subwoofer in parallel to get 2 Ohm, use two short pieces of speaker wire and link the positive
from one coil to the positive of the second coil, and do the same for the negative as shown below. Then wire the
amplifier to opposite sides of the subwoofer in order to equalise any connection resistance.
SERIES VOICE COIL WIRING (4 OHM OPERATION)
To wire a 4 Ohm DVC subwoofer in series to get 8 Ohms, use one short piece of speaker wire and link the positive
from one voice coil to the negative of the second coil as shown below. Then wire the amplifier to opposite sides of
the subwoofer.
2 Ohm operation
8 Ohm operation
+
-
+
-
