• The device must be mounted in a location where
there is at least 75 mm (3 in.) of clearance behind
the mounting surface and you can access the
controls after it is mounted.
• If you want to mount the device outside the boat,
it must be mounted in a location well above the
waterline, where it is not submerged.
• If you want to mount the device outside the boat,
it should be mounted in a location where it will not
be damaged by a docks, pilings, or other pieces
of equipment.
Mounting the Remote Control
1
At the mounting location, use a 50 mm (2 in.) hole
saw to cut through the mounting surface.
2
Place the remote control in the cutout and mark
the pilot holes.
3
Remove the remote control from the cutout, and
using a 2.5 mm (
3
/
32
in.) drill bit, drill the pilot
holes.
4
Apply marine sealant around the cutout (optional).
5
Place the gasket on the back of the remote
control.
6
Feed the attached NMEA 2000 cable through the
cutout.
7
Place the remote control in the cutout.
8
Secure the remote control to the mounting
surface using the included screws.
9
Install the decorative bezel around the edges of
the remote control.
10
Route the NMEA 2000 cable away from sources
of interference and connect it to the NMEA 2000
network or the FUSION remote control network.
More Information
Specifications
Specification Measurement
Operating voltage From 10.8 to 16 Vdc negative
ground
Electrical input current 110 mA at 12 Vdc
NMEA 2000 Load
Equivalency Number
(LEN)
3 (150 mA)
Operating temperature From 0 to 50°C (from 32 to
122°F)
Storage temperature From -20 to 70°C (from -4 to
158°F)
Water rating IEC 60529 IPX7

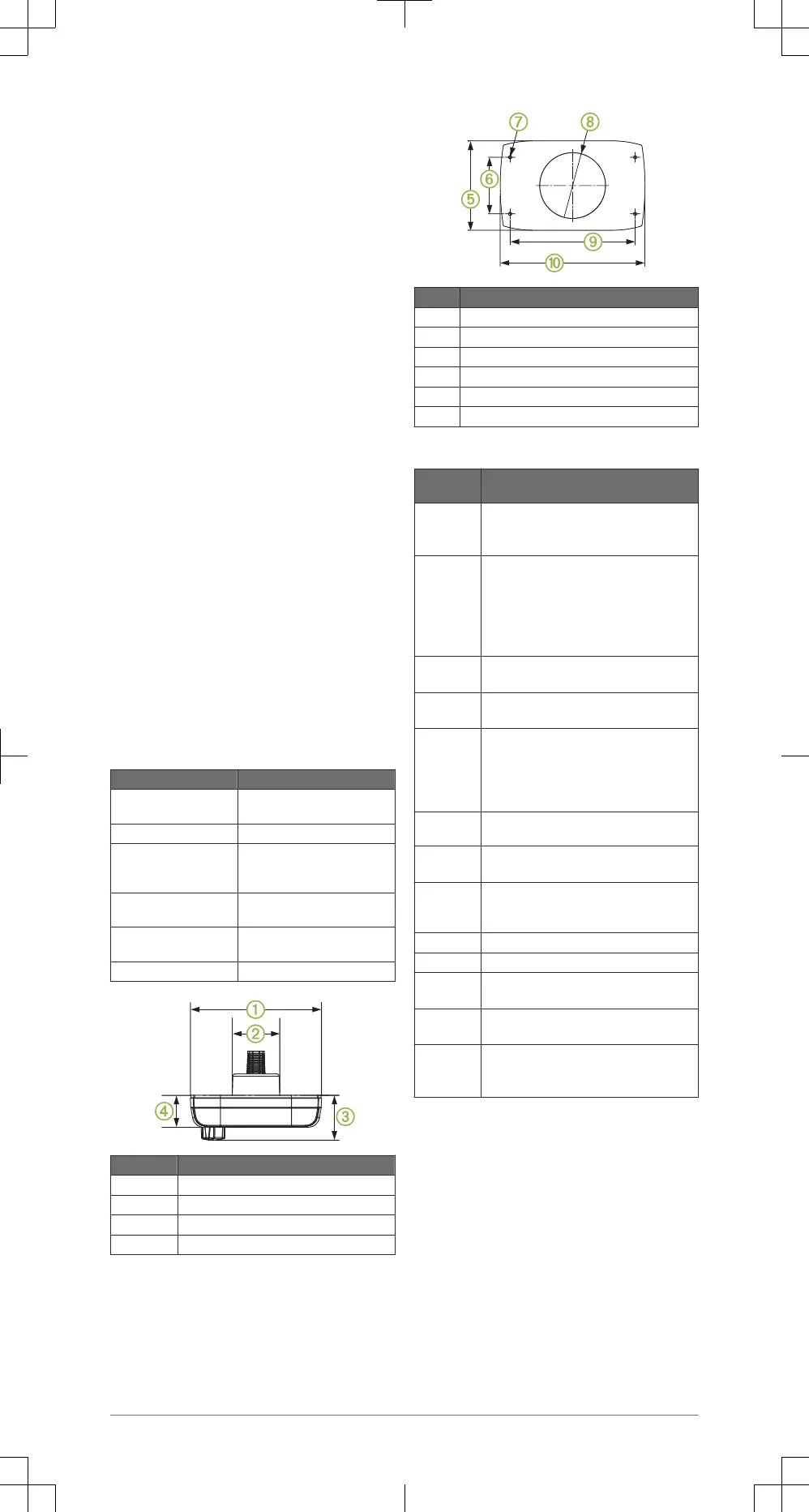

Item Measurement
À
110 mm (4
5
/
16
in.)
Á
42 mm (1
5
/
8
in.)
Â
28 mm (1
3
/
32
in.)
Ã
16.5 mm (
41
/
64
in.)
Item Measurement
Ä
70 mm (2
3
/
4
in.)
Å
43 mm (1
11
/
16
in.)
Æ
2.5 mm (
3
/
32
in.) (pilot hole bit)
Ç
42 mm (1
5
/
8
in.) (hole saw)
È
95 mm (3
3
/
4
in.)
É
110 mm (4
3
/
8
in.)
Supported NMEA 2000 PGN Information
PGN
Number
Data Field
127250 Heading sensor reference:
• 0: True
• 1: Magnetic
128259 Water speed reference:
• 00: Paddle wheel
• 01: Pitot tube
• 02: Doppler log
• 03: Correlation log (ultrasound)
• 04: Electromagnetic (EM) log
128267 Water depth:
• Offset add or subtract
129025 Position:
• Latitude and longitude
129026 Course Over Ground (COG) and Speed
Over Ground (SOG)
COG reference:
• 0: True
• 1: Magnetic
129029 Global Navigation Satellite System (GNSS)
position data
129284 Navigation data:
• ETA date
130306 Wind data reference:
• 0x02 : Apparent wind (relative to the
vessel centerline)
130310 Water temperature and air pressure
130311 Water temperature and air pressure
130312 Temperature and temperature source:
• - 00 : Sea temperature
130314 Actual pressure and pressure source:
• 00 : Atmospheric pressure
130577 Direction data and COG reference:
• 0: True
• 1: Magnetic
Registering Your FUSION MS-NRX300
Help us better support you by completing our online
registration today.
• Go to www.fusionentertainment.com.
• Keep the original sales receipt, or a photocopy, in
a safe place.
Software Updates
For best results, you should update the software in all
FUSION devices at the time of installation to ensure
compatibility.
Go to www.fusionentertainment.com/marine to
download the latest software. Software updates and
instructions are available on your device product
page.
Installation Instructions 3
