CABLES
Description (colour)
Power +12VDC (Yellow)
Negative ground (Black)
Remote amplifier turn on (Blue)
Dim +12V switched (Orange)
Dim
Connect to vessel lighting system to dim LCD and button illumination when vessel lights are
turned on.
Aux input
Connect an Auxiliary source to the left and right RCA (White = L, Red = R).
Lineout
Connect to an external amplifier (White = L, Red = R).
13
PLAYING CONTENT
Before you can use your iPod as an input source you must first connect the device to the
RA50. For further details, see “Preparing for iPod Input” on page 22.
To listen to input from your iPod:
Press the Input source key ( ) until the iPod input source screen is displayed.
Continuing to press the key will display the input source screens for Auxiliary, AM and FM as
described in the section “Input Source Screens” on page 7.
iPod SOURCE SCREEN

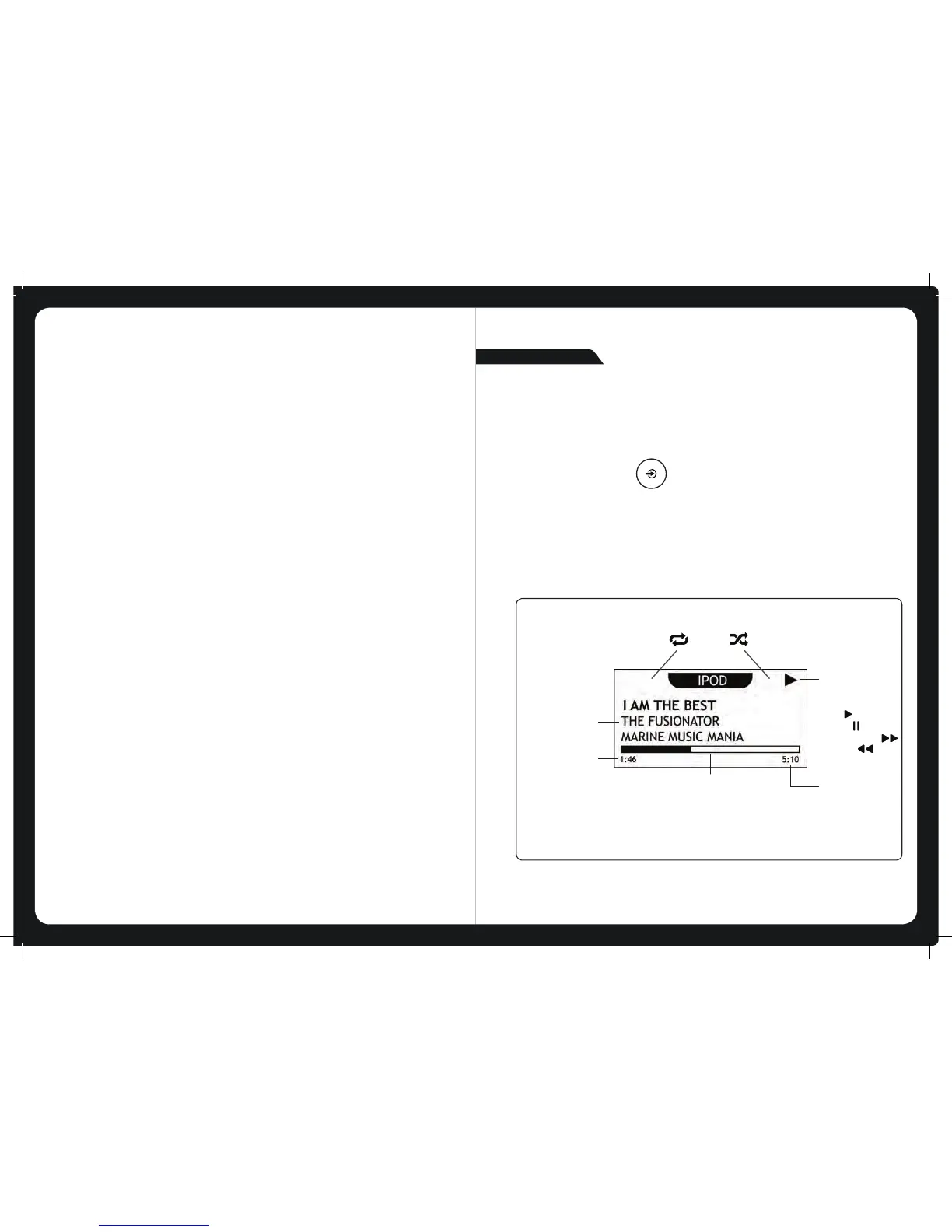

An example of a typical iPod input source screen is shown in Figure 3 below.
iPod
Figure 3 – Example iPod input source screen
CURRENT
TRACK DETAILS
ELAPSED TIME
TRACK
DURATION
PROGRESS BAR
PLAYBACK MODE INDICATOR:
Repeat Shuffle (if active)
PLAYBACK
STATUS
INDICATOR:
Play
Pause
Fast forward
Rewind
