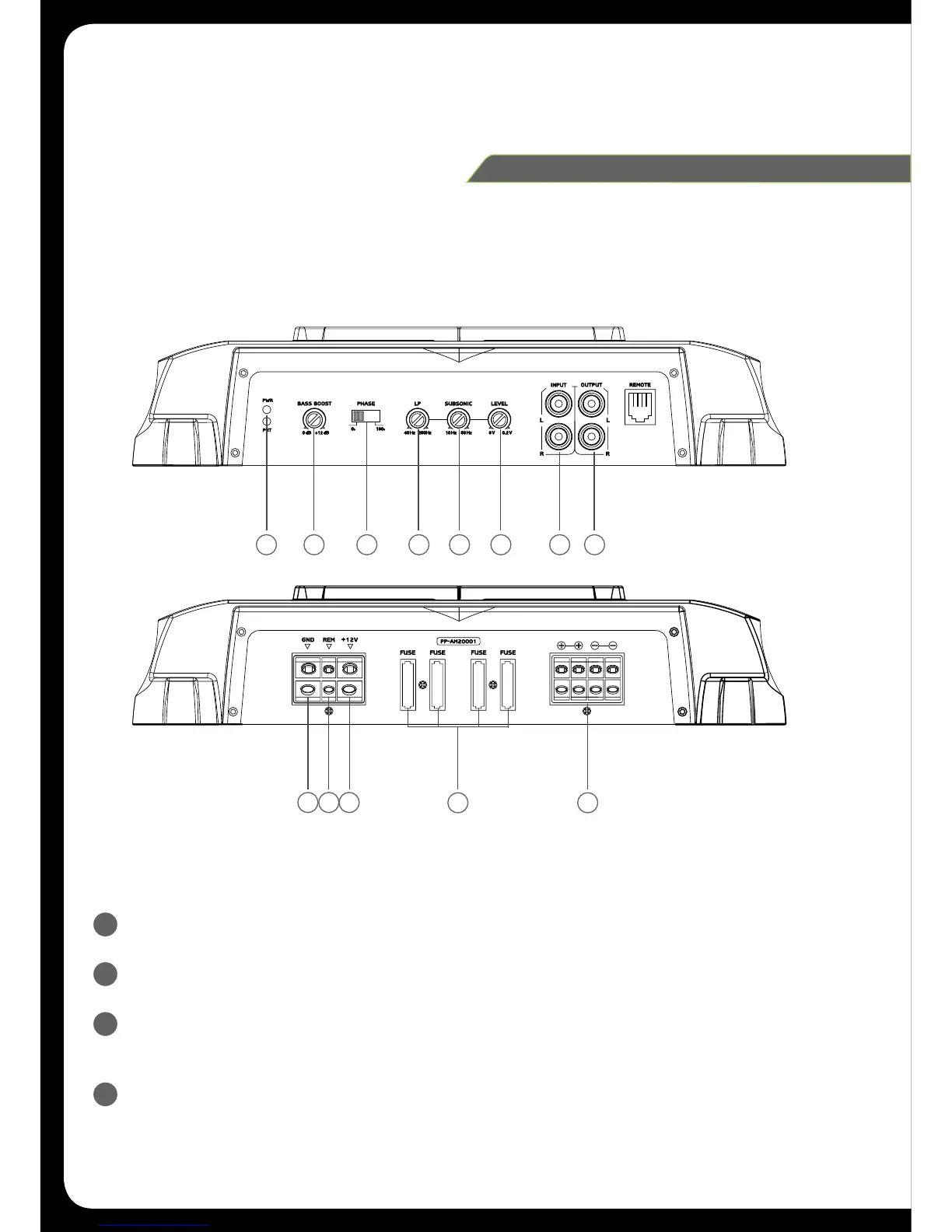

CONTROL DESCRIPTIONS
1 POWER AND STATUS LED’S:
This displays ‘Green’ if the amplifier has been correctly powered up and ‘Red’ if any faults are present.
2 BASS BOOST:
This is a variable control to increase the bass boost at 45Hz from 0 – +12dB of gain, adjust to suit.
3 PHASE SWITCH:
Select the phase switch to 0 or 180 degree to adjust the in phase or out of phase subwoofer direction to
the vehicles system.
4 LOW PASS:
Ensure the crossover frequency is set at 100Hz or below. This feature is designed to filter out all mid to
high frequencies that only full range speakers should produce.
Note: Failure to do so could result in speaker damage.
MONOBLOCK AMPLIFIER
PP-AM10001, PP-AM15001, PP-AM20001
9
10
11
12 13
1 2 3 7 4 8
5
6
To Next Page
