Fusion Signature Series User Manual

Amplifier class Class D
Frequency response 10 Hz to 40 kHz (-3 dB @ 4 Ohm rated power)
Peak power output 1500 W
Input impedance 7 kOhm nominal
Signal to noise ratio 85 dB @ rated power output, 4 Ohm 53.1 dB @ 1 W, 4 Ohm
Separation/crosstalk 60 dB
High-pass/low-pass filter User-selectable
Filter crossover frequency 32 Hz to 320 Hz, user-adjustable
Filter crossover slope 12 dB/octave
Bass boost 0 to 9 dB, user-adjustable (ZONE 3 only)
Remote turn-on 6 Vdc threshold
Protection circuits
Reverse voltage
Input under/over voltage Over temperature
Output short circuit
Compass-safe distance 55 cm (22 in.)
Operating temperature range
From 0 to 50
°
C (from 32 to 122
°
F)
Storage temperature range
From -20 to 70
°
C (from -4 to 158
°
F)
Water rating Must be installed in a dry location
Weight 4.5 kg (9.9 lb) with the cover installed

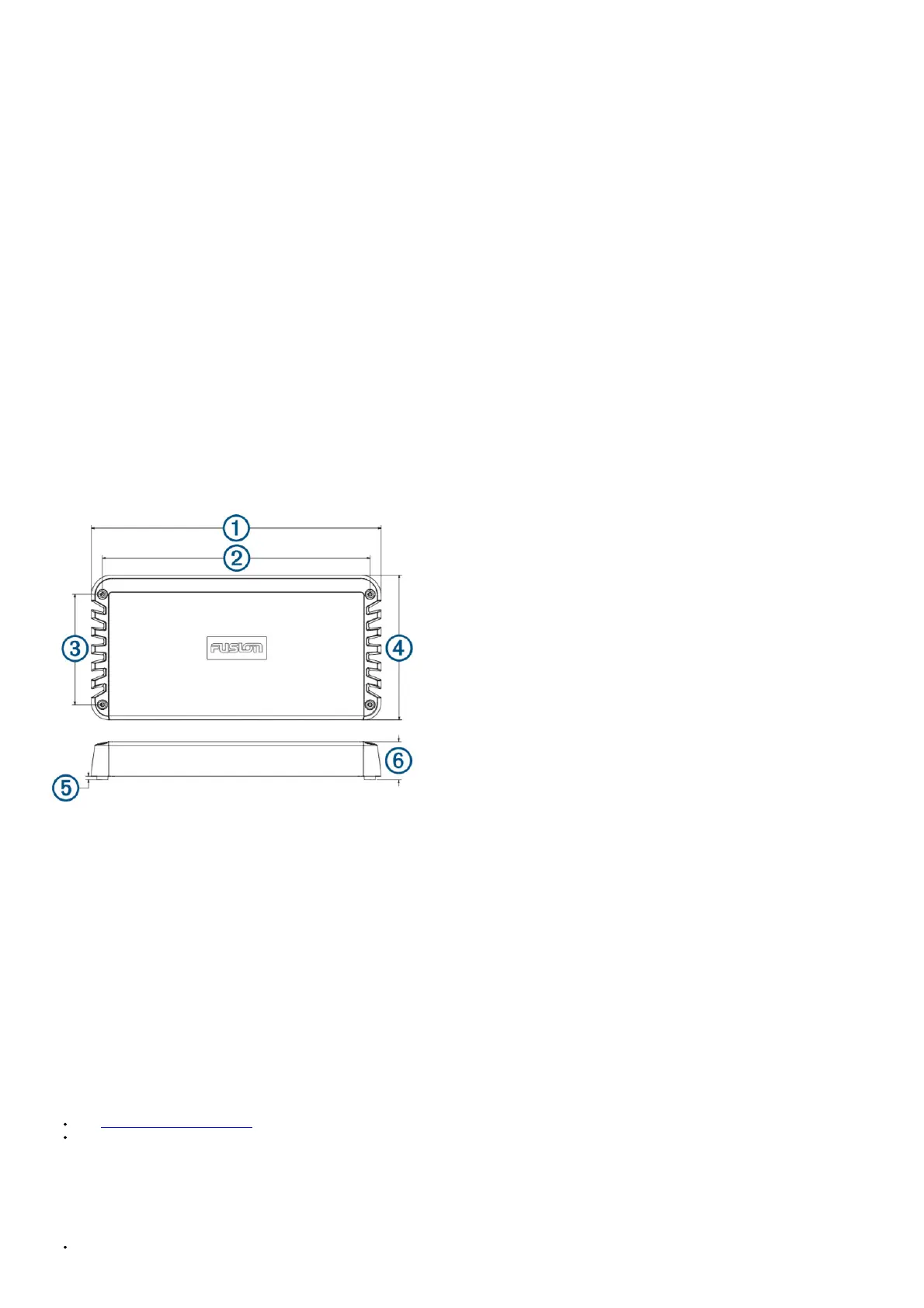

Dimensions
1
420 mm (16
9
/16 in.)
2
388 mm (15
1
/4 in.)
3
160 mm (6
5
/16 in.)
4
210 mm (8
9
/32 in.)
5
5 mm (
3
/16 in.)
6
56.6 mm (2
1
/4 in.)
More Information
Registering Your SG-DA61500/SG-24DA61500 Signature Series
Help us better support you by registering the product online.
Go to www.fusionentertainment.com.
Keep the sales receipt, or a copy, in a safe place.
Troubleshooting
Before you contact your FUSION dealer or service center, you should perform a few simple troubleshooting steps to help diagnose the problem.
If the FUSION amplifier has been installed by a professional installation company, you should contact the company so a technician can assess the problem and advise you about
possible solutions.
There is no sound, and the POWER LEDs are off
Check the amplifier turn-on wire connection to the stereo or switch, and tighten or reconnect all wires, if needed (Connecting to Power, page 2).

Fusion Signature Series Specifications

General

Impedance	4 Ohms
Sensitivity (dB)	90 dB
Speaker Size	6.5 inches
Woofer Size	6.5 inches
Tweeter Size	1 inch
