FUTABA 10CAG User Manual

21
7UDQVPLWWHUV$QWHQQD

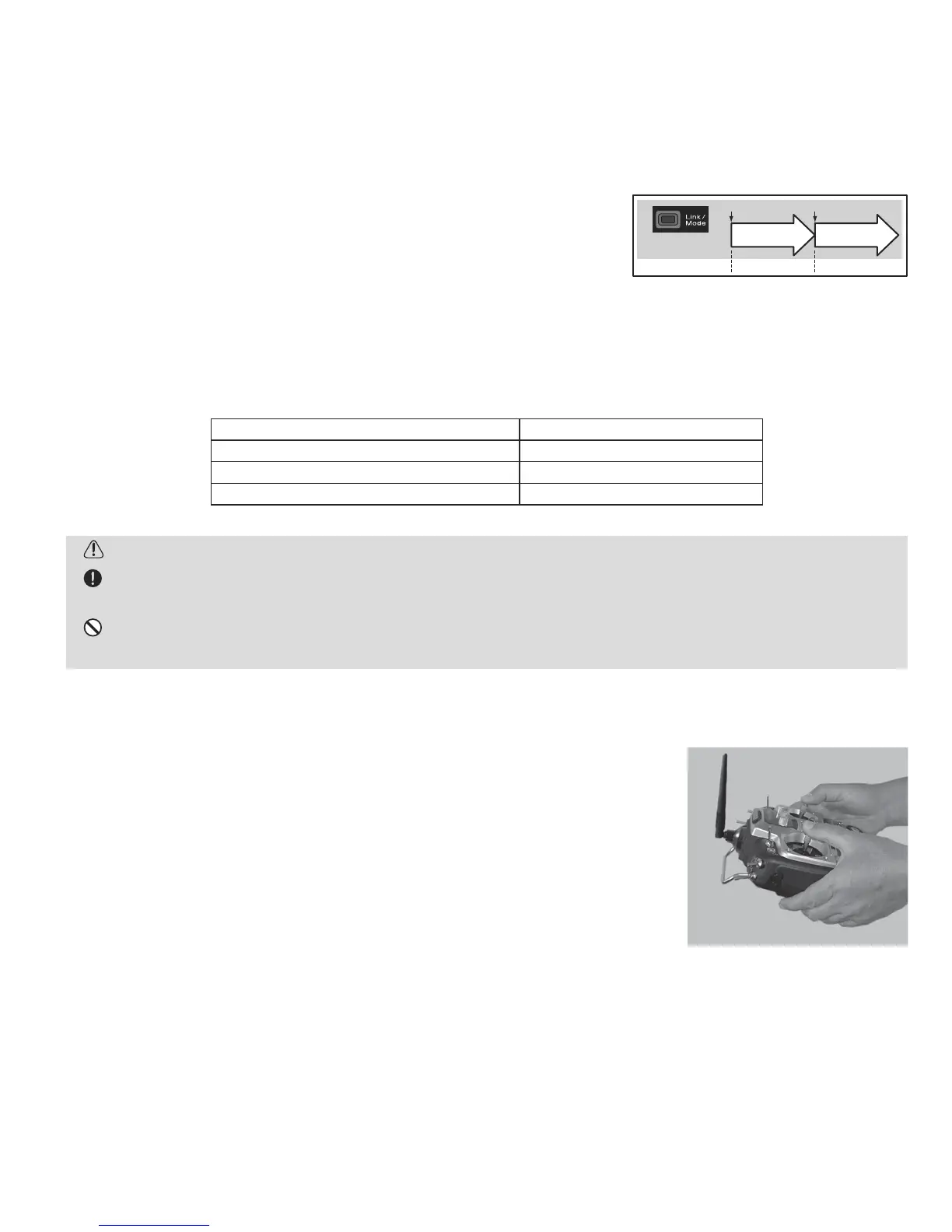

1. As with all radio frequency transmissions, the strongest area of signal transmission is
from the sides of the transmitter's antenna. As such, the antenna should not be pointed
GLUHFWO\DWWKHPRGHO,I\RXUÀ\LQJVW\OHFUHDWHVWKLVVLWXDWLRQHDVLO\PRYHWKHDQWHQQD
to correct this situation.
3OHDVHGRQRWJUDVSWKHWUDQVPLWWHUVDQWHQQDGXULQJÀLJKW'RLQJVRPD\GHJUDGHWKH
quality of the RF transmission to the model.
WARNING
After the linking is done, please cycle receiver power and check if the receiver to be linked is really under the
control by the transmitter to be linked.
Do not perform the linking procedure with motor's main wire connected or with the engine operating as it may
result in serious injury.
Link Procedure (T10CG transmitter/R6008HS or R6014HS receiver):
Each transmitter has an individually assigned, unique ID code. In order to start operation, the receiver must be linked with
the ID code of the transmitter with which it is being paired. Once the link is made, the ID code is stored in the receiver and
no further linking is necessary unless the receiver is to be used with another transmitter. When you purchase additional
5+65+6UHFHLYHUVWKLVSURFHGXUHLVQHFHVVDU\RWKHUZLVHWKHUHFHLYHUZLOOQRWZRUN
0 to 2 sec. More than 2 sec.
0 sec. 2 sec.
Press and Hold time
No function(Function)
Re-link(ID set)
1. Place the transmitter and the receiver close to each other within one (1) meter.
2. Turn on the transmitter.
3. Check the LED that is placed on the front side of the transmitter to see if the
RF signal is active. When the blue LED is ON solid, the RF signal is being sent.
4. Turn on the receiver.
5. Press down the Link/Mode switch for more than two seconds, and release the switch. The receiver begins the linking
operation.
:KHQWKHOLQNLQJLVFRPSOHWHWKH/('LQWKHUHFHLYHUZLOOFKDQJHWRVROLGJUHHQ3OHDVHFRQ¿UPWKDWWKHVHUYRVDUHQRZ
operational from your transmitter. Please refer to the table below for the LED status of the receiver's condition.
LED Indication (R6008HS/R6014HS)
No signal reception Red : On
Receiving signals Green: On
Receiving signals, but ID is unmatched. Green: Blink
Unrecoverable failure (EEPROM, etc.) Red and Green turn on alternately.
