FUTABA 10CAG - Throttle MIX; Swash Ring

96

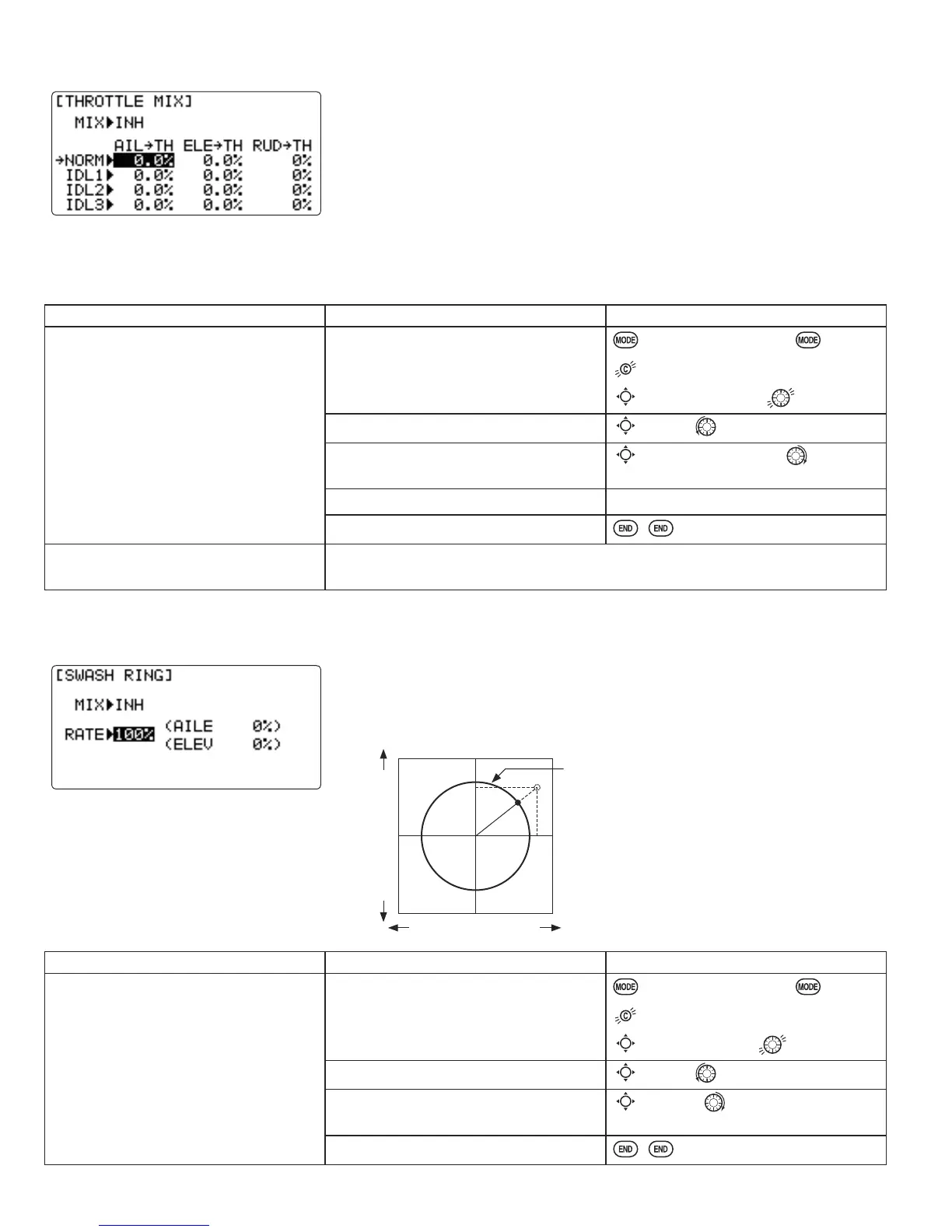

Throttle Mixing (
THROTTLE MIX
):
This function can be set for each flight condition, and is used to correct the
tendency of the model to change altitude when the rotor is tilted by aileron,
elevator, and rudder controls.
Adjustability:
0L[LQJPD\EHVHWIURPWRIRUHDFKÀLJKWFRQGLWLRQ
GOAL of EXAMPLE: STEPS: INPUTS:
Correct the tendency of the model to
change altitude.
Open
THROTTLE MIX
function.
for 1 second.
(If
BASIC
, again.)
to 2nd page of
ADVANCE
menu.
C
to
THROTTLE MIX
.
Activate the function.
C
to
MIX
to
ON
.
Adjust the rate.
Ex:
IDL1
(AIL to TH) 10%
C
to
IDL1
(AIL to TH) to
10%
.
Repeat as needed.
Close the menu.
Where next?
HI/LOW-PIT
: see p. 105.
GOVERNOR
set up: see p. 108.
Swash Ring (
SWASH RING
OLPLWVWKHVZDVKSODWHWUDYHOWRD¿[HGUDQJH
This function limits the swash travel to prevent damaging the swash linkage
by simultaneous operation of the ailerons and elevators. It is effective in 3D
aerobatics which use a large amount of travel.
GOAL of EXAMPLE: STEPS: INPUTS:
To prevent damaging the swash linkage
by simultaneous operation of the
ailerons and elevators, set the limit
point where swash throw stops.
*Adjust the rate at the maximum swash
tilt by simultaneous operation of the
ailerons and elevators
Open
SWASH RING
function.
for 1 second.
(If
BASIC
, again.)
to 2nd page of
ADVANCE
menu.
C
to
SWASH RING
.
Activate the function.
C
to
MIX
to
ON
.
Adjust the rate.
Ex: 90%
C
to
RATE
to
90%
.
Close the menu.
•Swash travel by simultaneous operation of
the ailerons and elevators is limited within the
circle(
SWASH RING
rate).
Adjustability:
• Initial value: 100%.
• Adjustment range: 0 to 200%.
Aileron operation
Elevator operation
