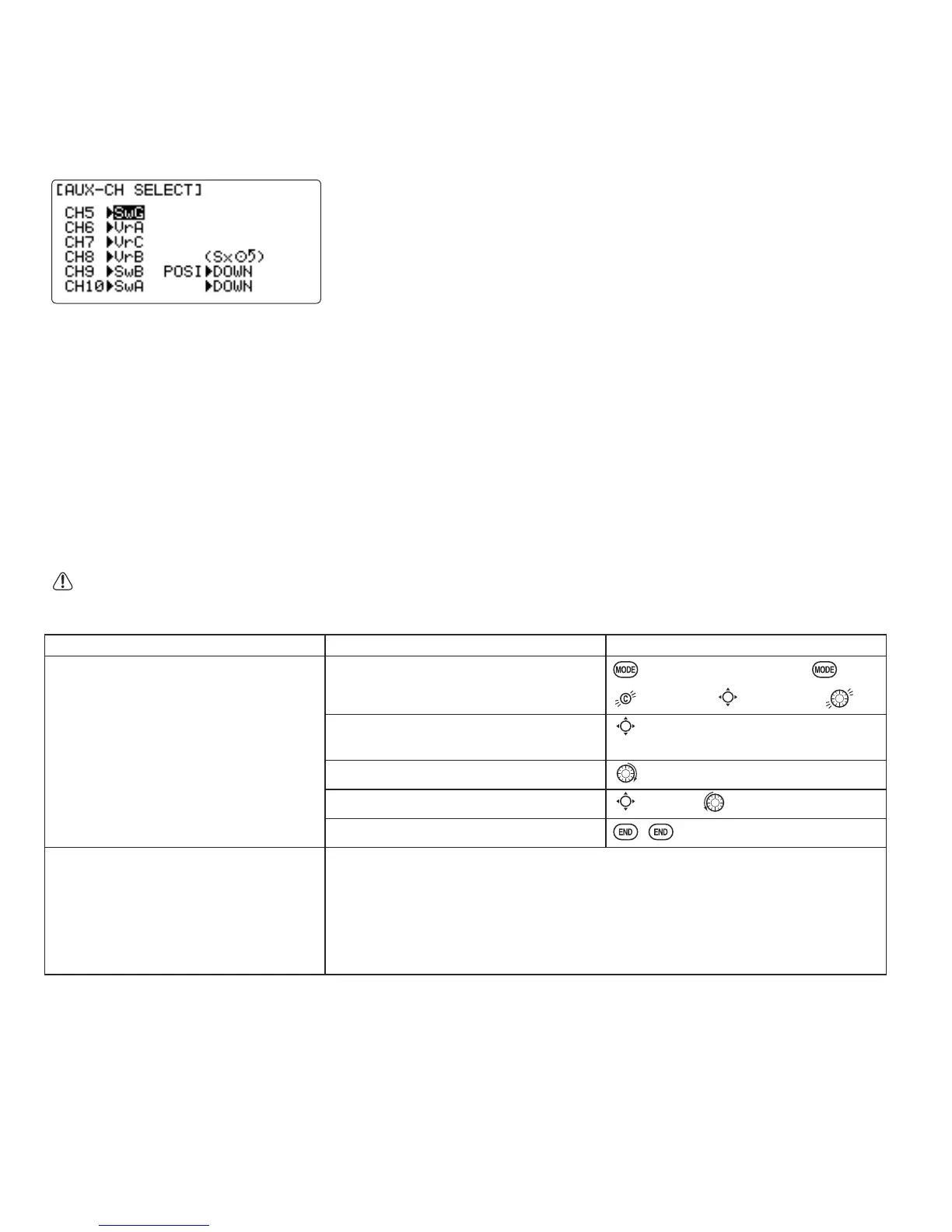

Auxiliary channel function (including channel 9-10 controls)(
AUX-CH
GH¿QHVWKHUHODWLRQVKLSEHWZHHQWKHWUDQVPLWWHU
controls and the receiver output for channels 5-10. Also, the
CH9-10 POSI
are used to change the CH9-10 servo direction.
Note that the CH9-10 functions are only visible in the
AUX-CH
screen when
2.4H-10CH
modulation is selected. Channels
8-10 are not supported in
2.4G-7CH
modulation.
Adjustability:
• Channels 5-8 may be assigned to any
SWITCH (A-H), LOGIC SWITCH
(Lsw1-Lsw3), slider [VR(D) and VR(E)], or knob [VR(A-C)] for example,
moving flaps to a switch or slider, but not the primary control sticks (use
programmable mixes to do so, p. 68). (
GLID 1A+1F
only): Channel 6 may be
assigned to Airbrake control stick (
STK-ARBK
).
• Channels 9-10 may be assigned to any
SWITCH (A-H), LOGIC SWITCH
(Lsw1-Lsw3) and the servo direction may be changed.
• Multiple channels may be assigned to the same switch, slider or knob;
• Channels set to "NULL" are only controlled by mixes. (Ex: utilizing 2
channels for 2 rudder servos. See mixes, p. 68.)
•If
GYRO SENSE
,
GOVERNOR
, and
THR-NEEDLE
functions are activated,
AUX-CH
settings of related channels become invalid automatically.
Related channels:
GYRO SENSE
(
ACRO
): ch. 5, 7, or 8: see p. 73.
GYRO SENSE
(
HELI
): ch. 5: see p. 107.
GOVERNOR
(
HELI
): ch. 7, or ch. 7 and 8: see p. 108.
THR-NEEDLE
(
ACRO

HELI
): ch. 8: see p. 65.
Remember that if you assign primary control of a channel to a switch which you later use for other functions (like
GXDOWULSOHUDWHVRUDLUEUDNHVHYHU\WLPH\RXXVHWKDWRWKHUIXQFWLRQ\RXZLOODOVREHPRYLQJWKHDX[LOLDU\FKDQQHO
GOAL of EXAMPLE: STEPS: INPUTS:
$VVLJQÀDSVWRWKHULJKWVOLGHU>VR(E)]
and set channel 7 to
NULL
in preparation
to use it as a smoke system control (the
smoke system being activated later by a
throttle-to-ch.-7 mix).
Open
BASIC
menu, then open
AUX-CH
function.
for 1 second.
(If
ADVANCE
, again.)
to page 2.
C
to
AUX-CH
.
Choose the channel to change. (ex: ch.
6.)
C
to
Ch 7
.
Change primary control. (ex: to slider.)
to
Vr-E
.
Repeat as needed. (ex: ch. 7 to
NULL
.)
C
to
Ch 7
. to
NULL
.
Close.
Where next? Programmable mixes: see p. 68.
6HWXSGXDOWULSOHUDWHVDQGH[SRQHQWLDO
D/R
,
EXP
): see p. 42.
Adjust
SUB-TRIM
of auxiliary channel to adjust center SWITCH position:
see p. 49.
Adjust
END POINTs
(sets end points of travel even when using a switch):
see p. 39.
