FUTABA 18SZ - Advanced Motor and Compensation Settings; Turbo Speed Configuration; Motor to Elevator Compensation

Magnus Hedlund Page 9

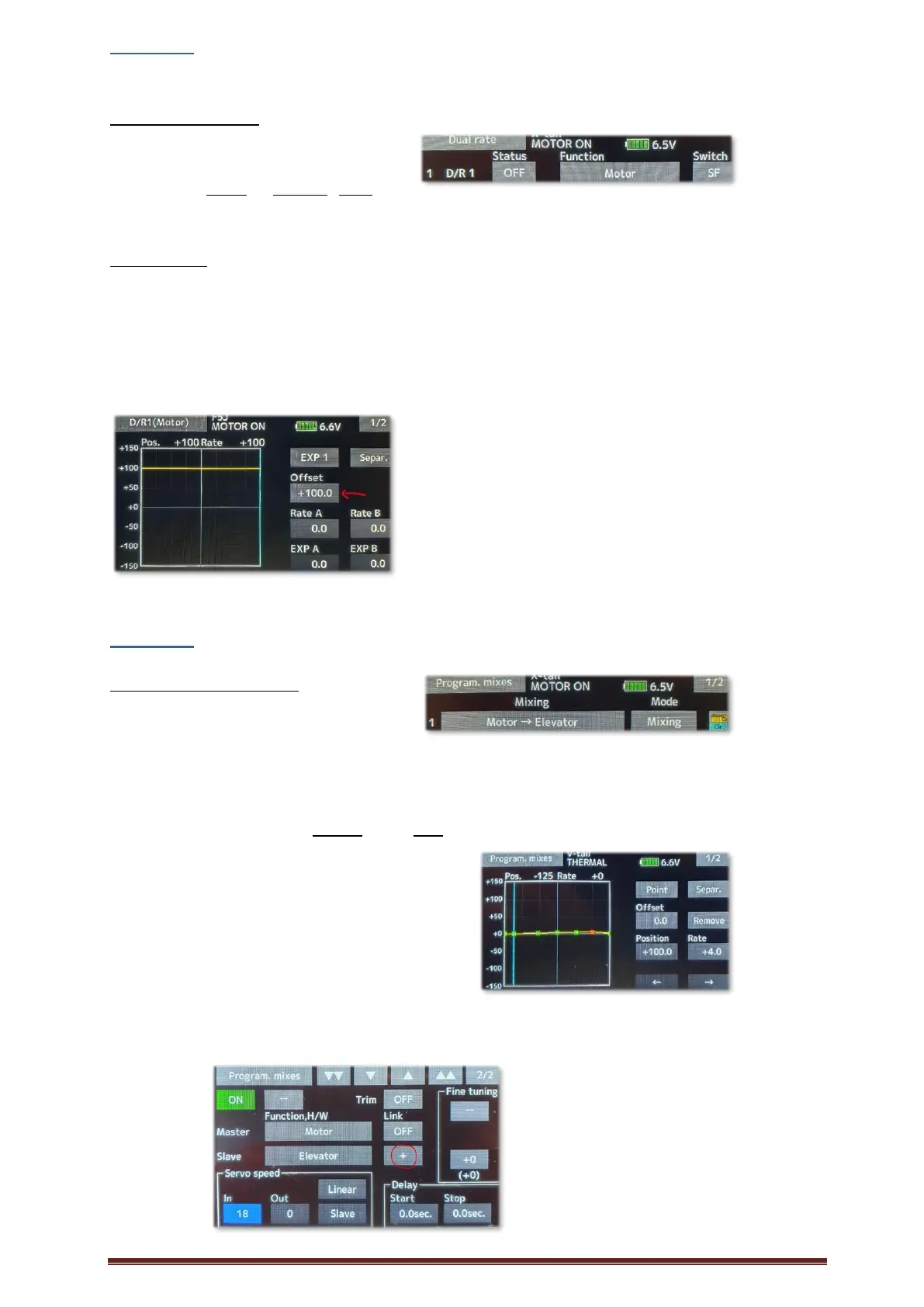

HOW-TO: TURBO SPEED (Optional)
Dual Rate is used for the Turbo speed function (Max motor speed)
GLIDER – DUAL RATE
Set flight condition = ‘MOTOR ON’
Status Function Switch
D/R 1 OFF/ON Motor SF (ON in-flight condition ‘MOTOR ON’)
(Switch = “SF”, On = down)
GLIDER – AFR
Menu 2: Set Function = Motor
Menu 1: Motor – Dual rate
D/R 1 in flight condition ‘MOTOR ON’: (Set D/R 1 with SF=ON)
Set Rate A = Rate B = 0
Set Offset = +100
HOW-TO: MOTOR TO ELEVATOR COMPENSATION (when needed)
GLIDER – PROGRAM MIXES
Select new mixer, Mode = Mixing
Menu 2:
Set Mixer to ‘ON’
Master: Motor
Slave: Elevator
Menu 1: Point: Position Rate (elevator compensation, usually down.)
-152.5 0
-125 0 = Off
-65 0 = Low
-0 +2 = Mid
+65 +3 = High
+100 +4 = Max
+152.5 0
For V-Tail:
Set Slave - Elevator - Link to ‘+’.
