ADDITIONAL INFORMATION
Trim T5 as global elevator trim: (missing on 16SZ, use T3 instead)
Trim T2 is used ”as usual” for elevator trim, i.e. it sets elevator trim separate for every flight condition.
Trim T5 is used, at the same time, and adjusts the elevator trim for all (wanted) flight conditions.
This trim T5 is useful to set the elevator neutral position (when flying) for all flight conditions at the same time.
It is still possible to adjust every flight condition individually with trim T2.
Elevator Trim = T5 + T2
LINKAGE – FUNCTION

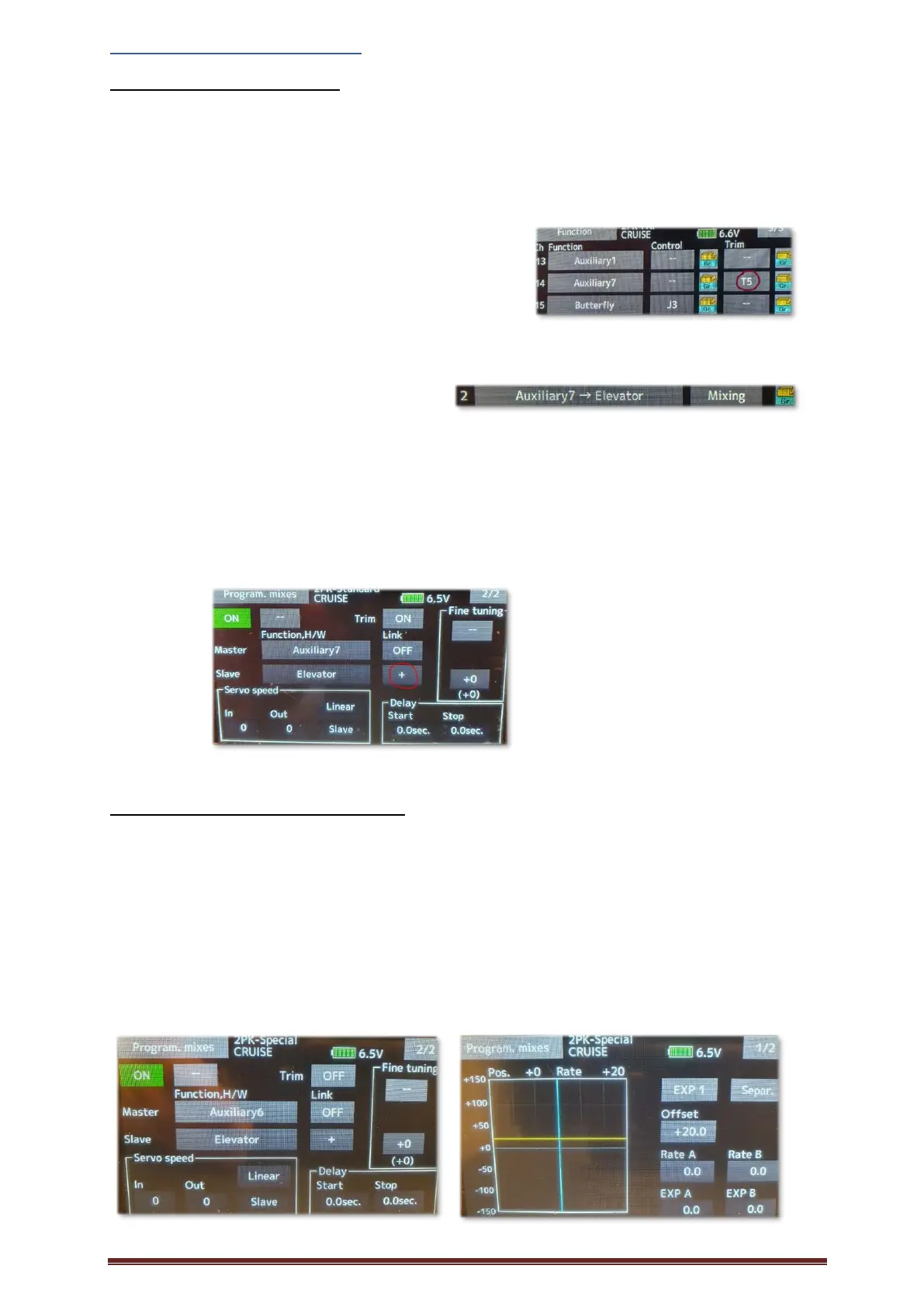

Channel 14, Auxilary7, Control = “- -”, Trim = “T5”
GLIDER – PROGRAM MIXES
Mode = Mixing
Mixing menu 2:
ON (not INH), Trim= ON
Master = Auxilary7
Slave = Elevator
Mixing menu 1:
Rate A, Rate B = +100)
For V-tail:
Set Slave - Elevator - Link to ‘+’.
Using Mixer for adjusting T5 trim values
When using T5 as global elevator and then zero out the T5 value by asserting the trim
via Auxiilary 6.
GLIDER – PROGRAM MIXES
Mode = Mixing
Mixing menu 2:
ON (not INH), Trim= OFF
Master = Auxilary6
Slave = Elevator (Link = + for V-tail)
Mixing menu 1:
Offset = ‘Trim value’ (The T5 trim value before clearing T5 value.)
