22
Before Using
Warning
Please do not grasp the transmitter's antenna while driving.
Doing so may degrade the quality of the RF transmission to the model.
*
A small glitch may occur if the transmitter antenna is brought close to servos, ESCs or other pe-
ripheral devices. This is not a serious issue, but keep it in mind (especially during setup).

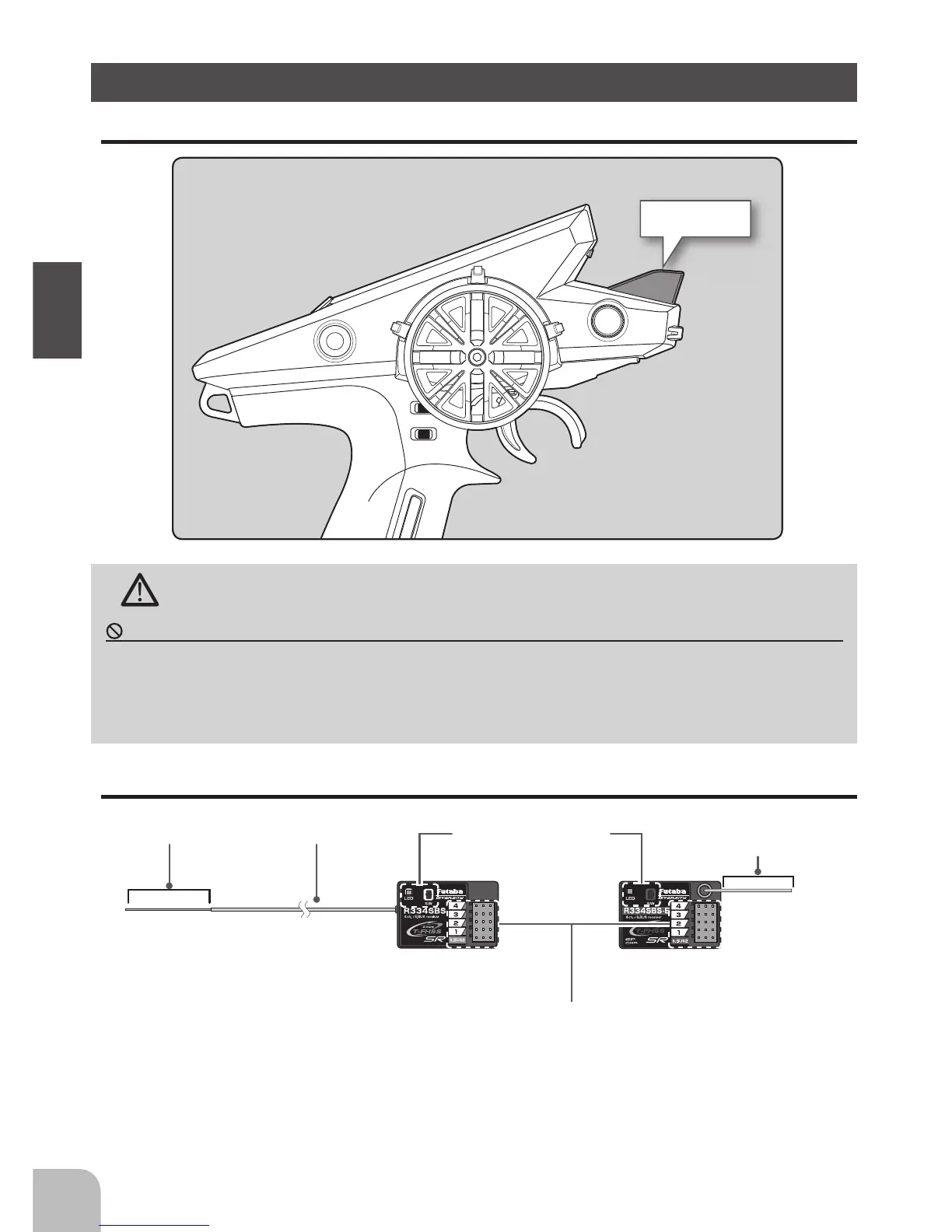

About The Transmitter Antenna
About Transmitter Antenna and Receiver
Antenna
Receiver Terminology
Antenna
Antenna
*R314SB-E has no external antenna. LED /
Link switch and connector part are the same as
R314SB.
*The receiver power supply can be connected to
the S.BUS2 connector or each of CH1-4.
Coaxial cable Link switch/LED
Connectors
4: CH4 servo(CH4)
3: CH3 servo(CH3)
2: Throttle servo(CH2)
1: Steering servo(CH1)
S.BUS2: Power /S.BUS2 connector
