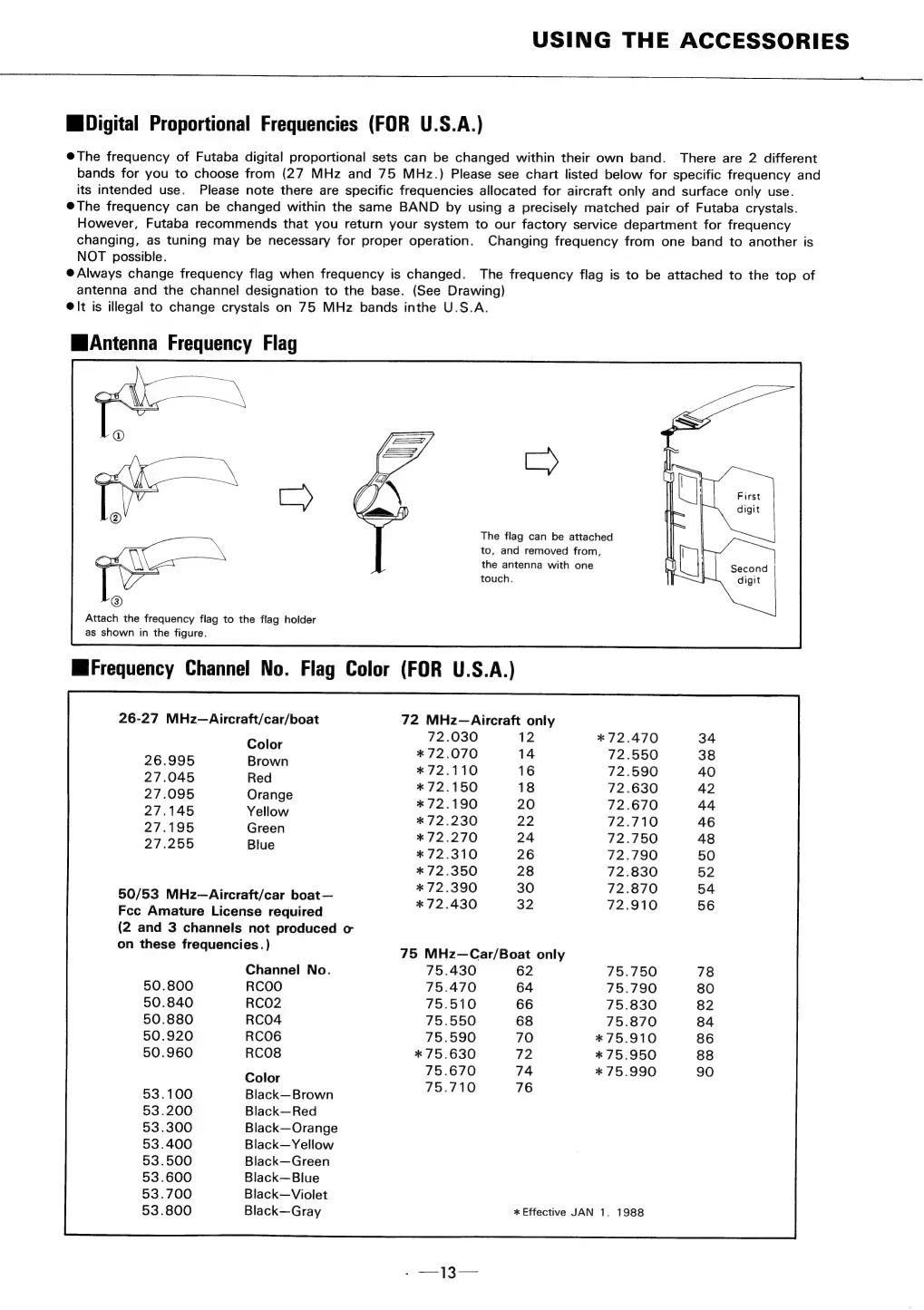

USING THE ACCESSORIES
Mi Digital Proportional Frequencies (FOR U.S.A.)
@The frequency of Futaba digital proportional sets can be changed within their own band. There are 2 different
bands for you to choose from (27 MHz and 75 MHz.) Please see chart listed below for specific frequency and
its intended use. Please note there are specific frequencies allocated for aircraft only and surface only use.
@The frequency can be changed within the same BAND by using a precisely matched pair of Futaba crystals.
However, Futaba recommends that you return your system to our factory service department for frequency
changing, as tuning may be necessary for proper operation. Changing frequency from one band to another is
NOT possible.
@ Always change frequency flag when frequency is changed. The frequency flag is to be attached to the top of
antenna and the channel designation to the base. (See Drawing)
@ İt is illegal to change crystals on 75 MHz bands inthe U.S.A.
MAntenna Frequency Flag
The flag can be attached
to, and removed from,
the antenna with one
touch.
Attach the frequency flag to the flag holder
as shown in the figure.
WFrequency Channel No. Flag Color (FOR U.S.A.)
26-27 MHz—Aircraft/car/boat
Color
26.995 Brown
27.045 Red
27.095 Orange
27.145 Yellow
27.195 Green
27.255 Blue
72 MHz—Aijircraft only
72.030
*72.070
* 72.110
* 72.150
* 72.190
* 72.230
* 72.270
* 72.310
* 72.350
* 72.390
50/53
MHz—Aircraft/car
boat—
*
72.430
Fcc Amature License required
(2 and 3 channels not produced o
on
these
frequencies.
)
75
MHz—Car/Boat
only
50.800
50.840
50.880
Channel No.
RCOO
RCO2
RCO4
75.430
75.470
75.510
75.550
75.750
75.790
75.830
75.870
50.920 RCO6 75.590 * 75.910
50.960 RCO8 * 75.630 * 75.950
75.670 * 75.990
75.710
Color
53.100 Black—Brown
53.200 Black—Red
53.300 Black—Orange
53.400 Black—Yellow
53.500 Black—Green
53.600 Black—Blue
53.700 Black—Violet
53.800 Black—Gray * Effective JAN 1. 1988
