16
DATA SETTING

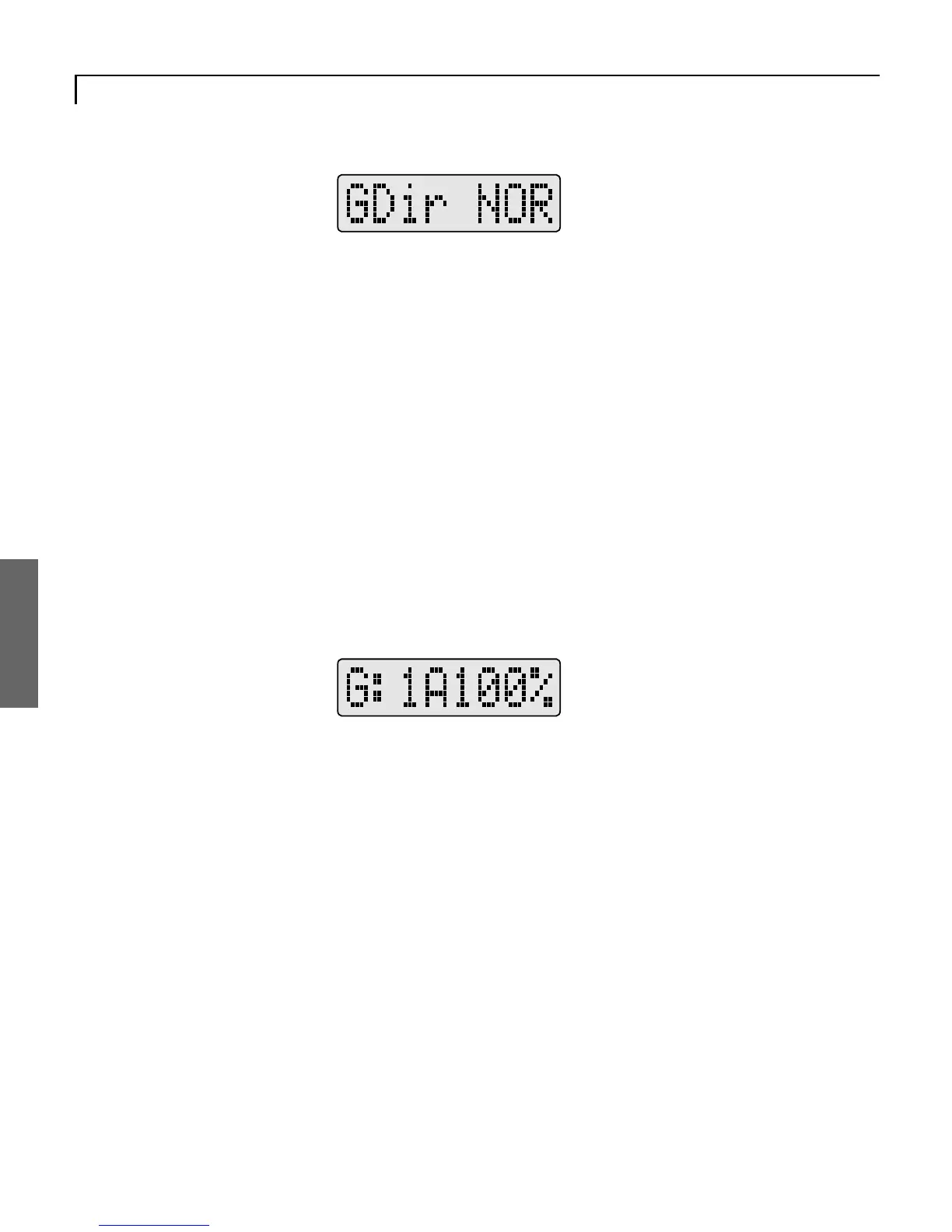

Gyro Reverse
Initial value: NOR
Sets the gyro operation direction. NOR or REV can be selected.
Set so that when the helicopter is banked right, left correction rudder
is applied and when the helicopter is banked left, right correction
rudder is applied.
Gyro Gain Adjustment
Initial value: 100%
Adjusts the gyro gain. Setting range is 0 to 120%.
Two-point (G:1, G:2) gain adjustment is possible. When A is
displayed, the gyro is in the AVC mode and when N is displayed, the
gyro is in the NOR mode in accordance with the operation mode
setting.
