FUTABA GY601 - T9 Z Programmable Mixing Setting Example

25
DATA SETTING
PROG MIX 1
01 . MODEL-01. NORML HEL PCM 0: 23: 17
ACTIVE : MODE ( ON) TRIM:
******
MSTR MIX MODE:
******
: SLAVE
: MIX TYPE
LIN OFS HOV CRV CTL END
GYR
OFS
*** : MASTER
SWT
NXT
PROG MIX 1
01 . MODEL-01. NORML HEL PCM 0: 23: 17
: RATE+ 70 %
0 20 40 60 80 100 END
+70%
+40%
-70%
-40%
70% 40%
(Setting Example)

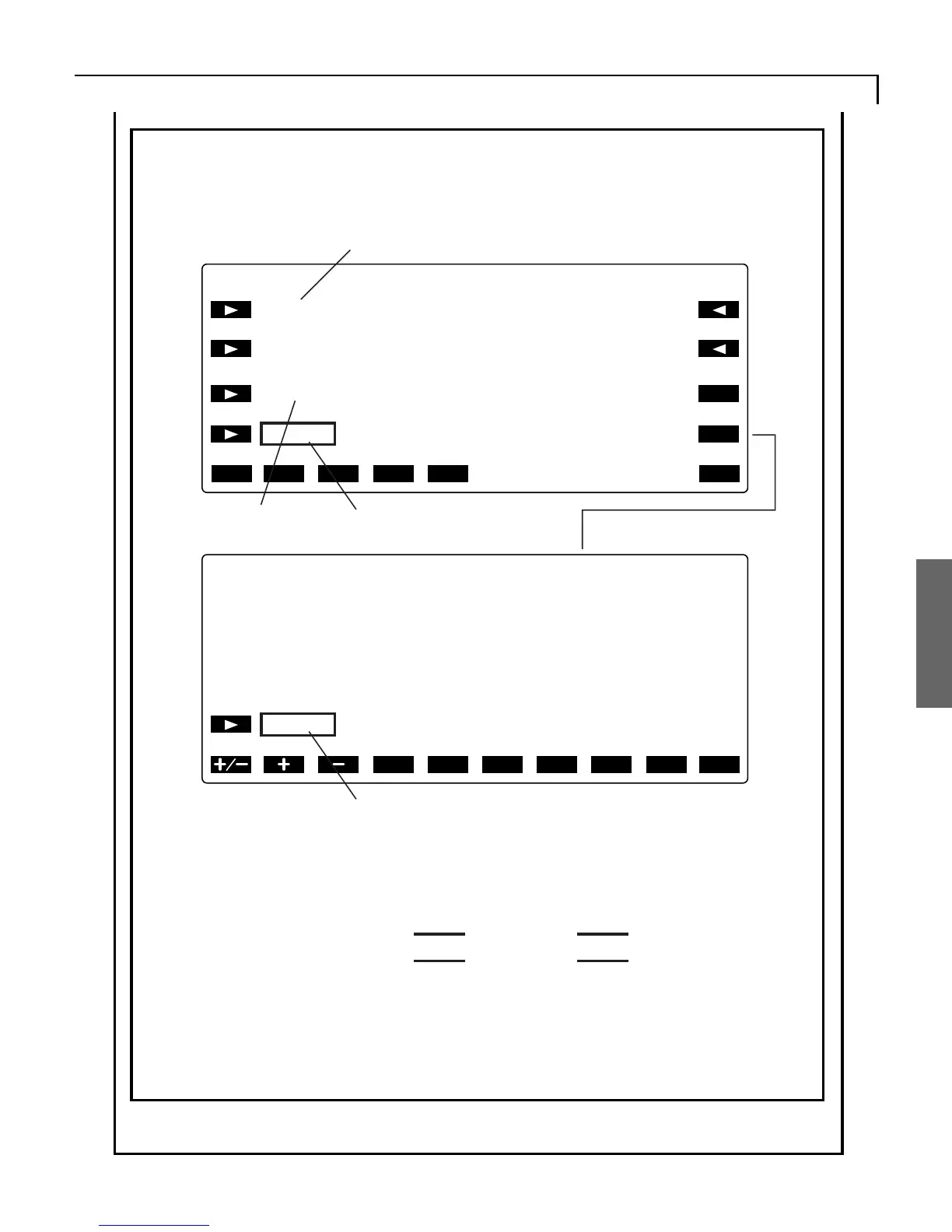

Adjust the gyro gain at the Programmable Mixing setup screen at each
condition. The following shows a setting example in the CMT mode.
Select the “ACTIVE”.
Select the “GYR”.
Select the “OFS”.
Sensitivity rate
Use the following values as the sensitivity setting standard:
AVCS mode
Normal mode
Actual gain
Hovering Flight
When set over 0%, the GY601 operates in the AVCS mode and when
set under 0%, the GY601 operates in the Normal mode.
