42
ڀ ŪŲŃƗƒŃŷŤťůŨŃŲũŃŦŲűŷŨűŷŶ
Ɣ7DLOOHVVZLQJ:LQJOHW5XGGHU
2XWSXWFKDQQHOVGL൵HUE\HDFKV\VWHPRIDWDEOH:KHQXVLQJDV\VWHPZLWKIHZFKDQQHOV
there is a wing type which cannot be used. It cannot be used when there is a function
UHTXLUHGRXWRIWKHUDQJHRIWKHDUURZRID¿JXUH
Rudder2servos
ŤƌƕƓƏƄƑƈŒƊƏƌƇƈƕ
RX
CH

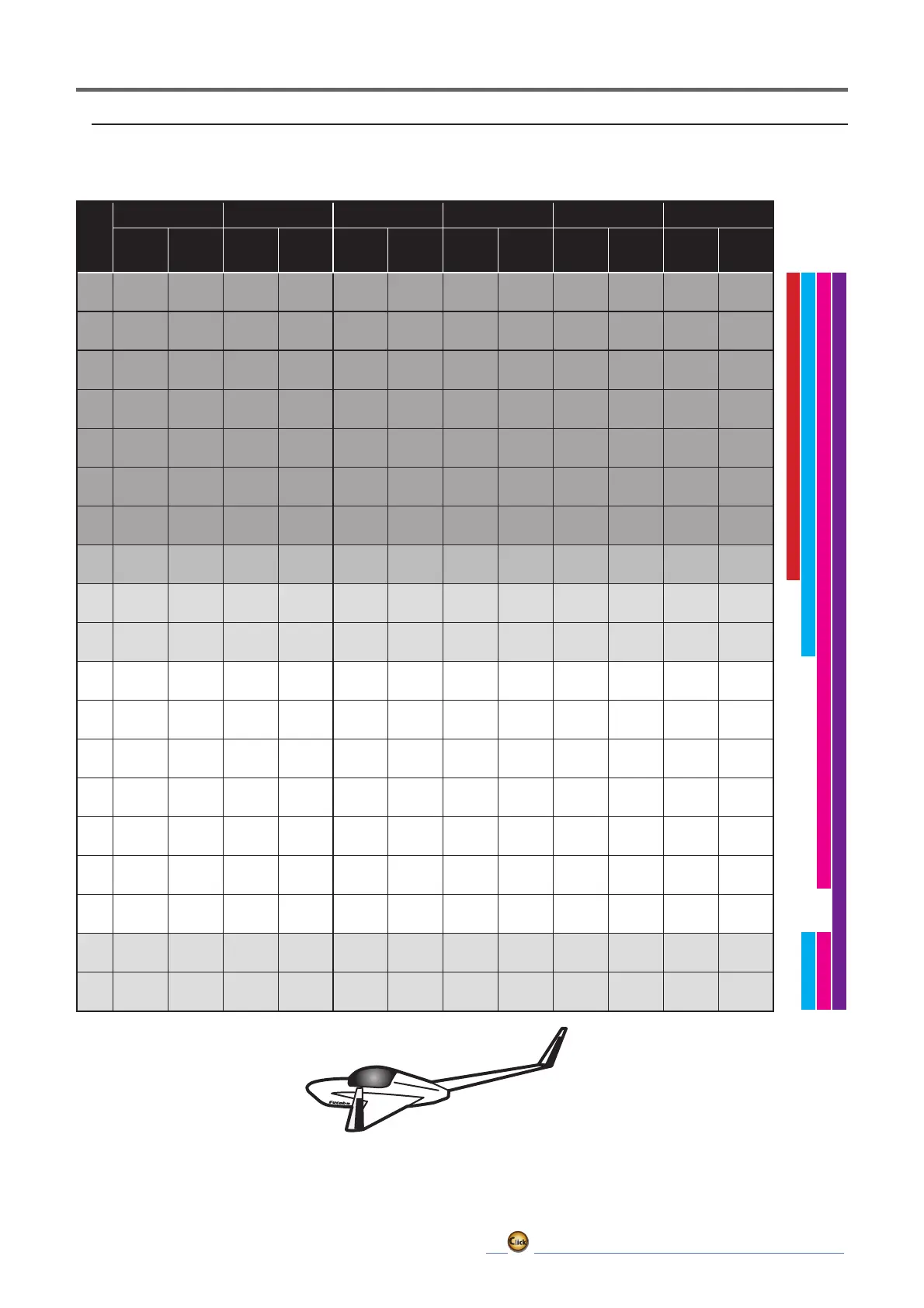

2AIL 2AIL+1FLAP 2AIL+2FLAP 2AIL+4FLAP 4AIL+2FLAP 4AIL+4FLAP
Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider Airplane Glider
1 Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron Aileron
2 Rudder2 Rudder2 Rudder2 Rudder2 Rudder2 Rudder2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2 Aileron2
3 Throttle Motor Throttle Motor Throttle Motor Throttle Motor Throttle Motor Throttle Motor
4 Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder Rudder
5 Gear AUX6 Gear AUX6 Aileron2 Aileron2 Flap Flap Aileron3 Aileron3 Aileron3 Aileron3
6 Aileron2 Aileron2 Aileron2 Aileron2 Flap Flap Flap2 Flap2 Aileron4 Aileron4 Aileron4 Aileron4
7 AUX5 AUX5 Flap Flap Flap2 Flap2 Flap3 Flap3 Flap Flap Flap Flap
8 AUX3 AUX3 AUX5 AUX5 Gear AUX6 Flap4 Flap4 Flap2 Flap2 Flap2 Flap2
9 AUX2 AUX2 AUX3 AUX3 AUX5 AUX5 Rudder2 Rudder2 Rudder2 Rudder2 Flap3 Flap3
10 AUX1 AUX1 AUX2 AUX2 AUX3 AUX3 Gear AUX6 Gear AUX6 Flap4 Flap4
11 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX5 AUX5 AUX5 AUX5 Rudder2 Rudder2
12 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX3 AUX3 AUX3 AUX3 Gear AUX6
13 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX2 AUX2 AUX2 AUX2 AUX5 AUX5
14 AUX1 AUX1 AUX1 Butterfly AUX1 Butterfly AUX1 Butterfly AUX1 Butterfly AUX3 Butterfly
15 Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber Camber
16 Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator Elevator
17-24 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1 AUX1
DG1 SWSD SWSD SWSD SWSD SWSD SWSD SWSD SWSD SWSD SWSD SWSD SWSD
DG2 SWSA SWSA SWSA SWSA SWSA SWSA SWSA SWSA SWSA SWSA SWSA SWSA
S-FHSS FASSTest12CH
FASSTest18CHT-FHSSAIR FASSTest26CH
Theoutput
CHofeach
system
