INSTALLATION
Coil Cord Connection
Insert coil cord into modular jack located on side housing. Connect the other end
into the modular jack located on handset.
Line Cord Connection
Insert the modular plug of the straight cord into the rear side of base unit, the
insert the other end of RJ11C plug into the wall jack.

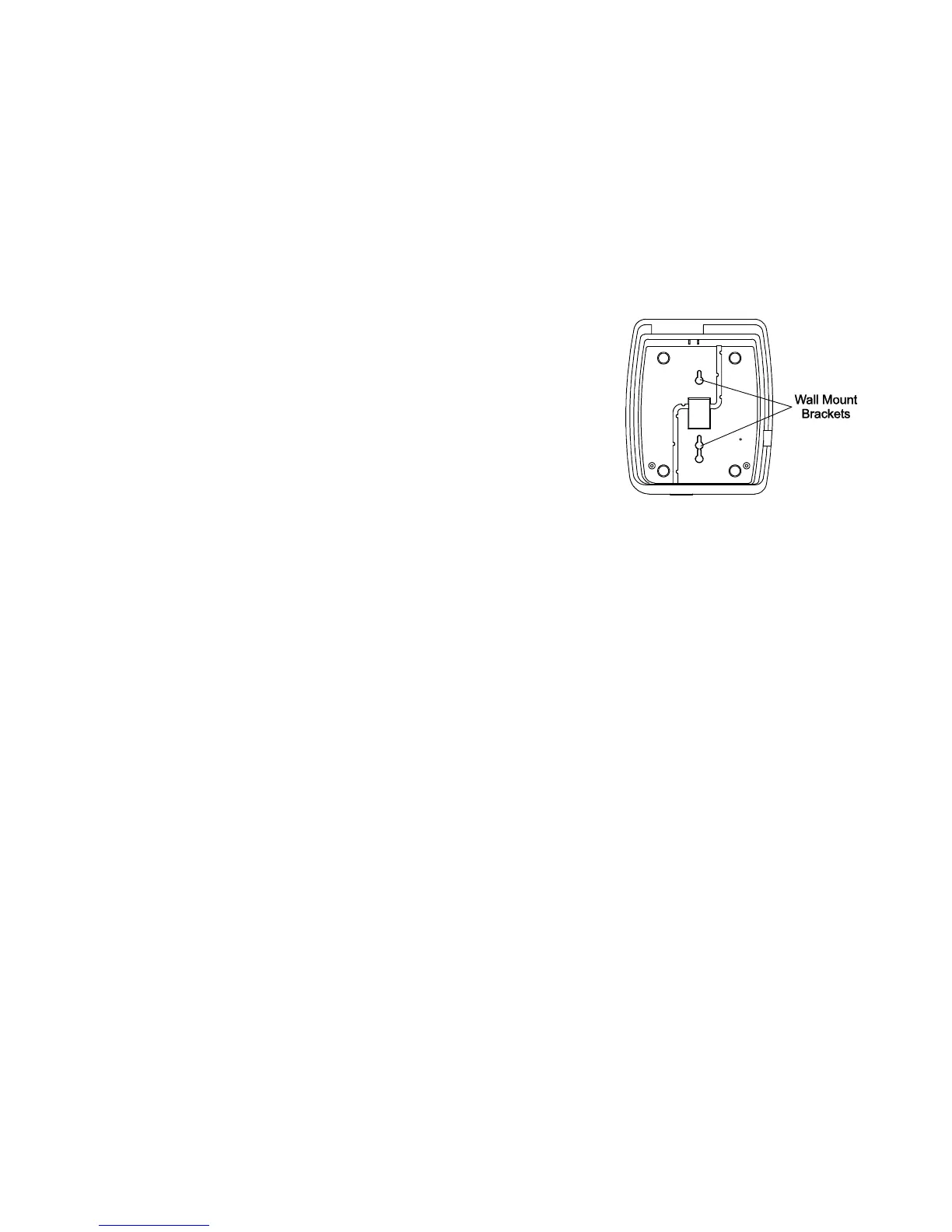

Wall Mounting
Your PHONE is also designed to mount on a wall.
Position the wall mount slots on the bottom of the
base over the two studs of the wall plate. Pull down
to lock in place.
