Future light PHS-200 - Overview

51838165X87NXS_V_1_1.DOC
25/75

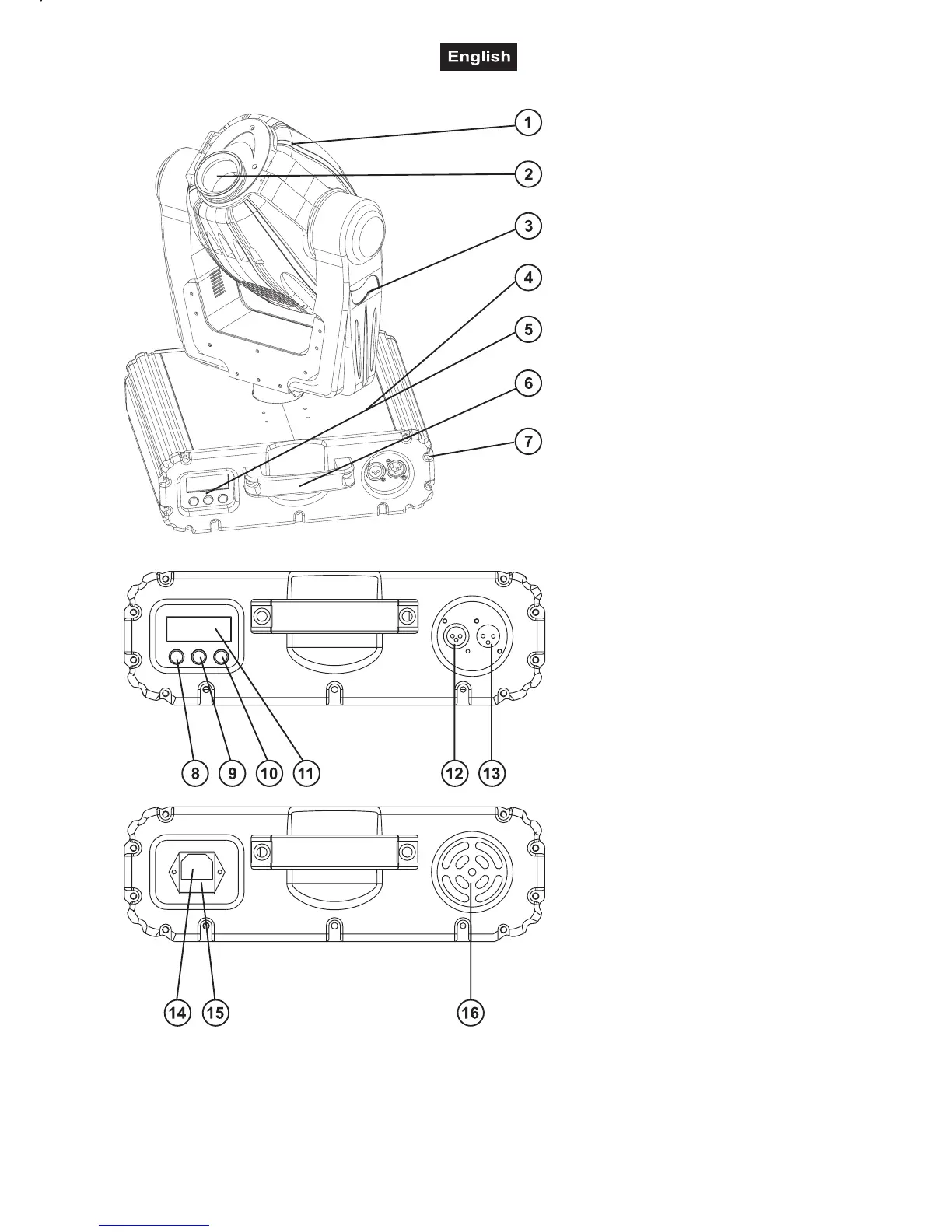

Overview
(1) Projector head
(2) Objective-lens
(3) Yoke
(4) Base
(5) Control Board
(6) Carrying handle
(7) Housing screw
(8) Mode/Enter-button
(9) Down-button
(10) Up-button
(11) Display
(12) DMX-Out socket
(13) DMX-In socket
(14) Power supply
(15) Fuseholder
(16) Ventilation fan
