4. DMX-Protocol
4.1 Function of the control channels - 16 bit protocol

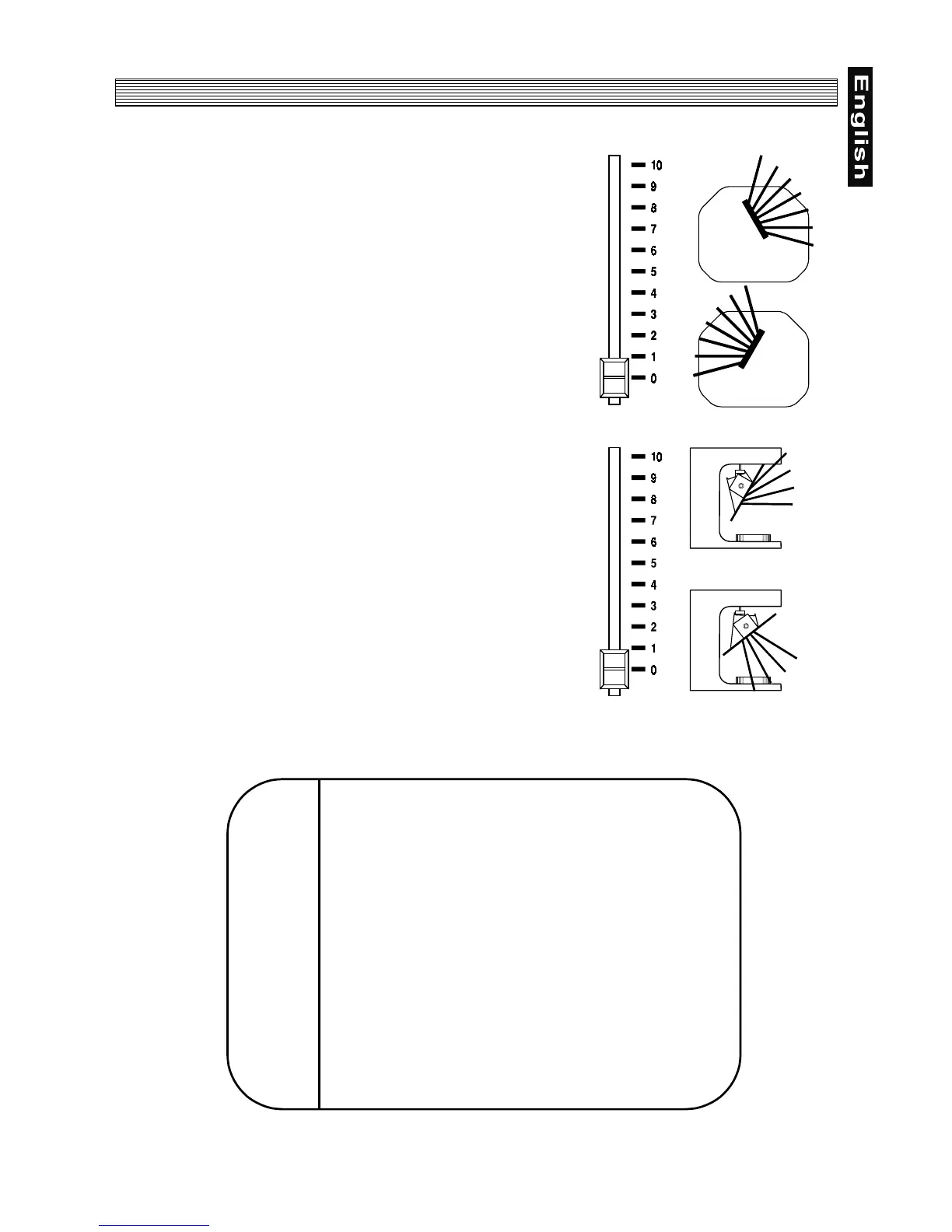

4.1.1 Channel 1 - Horizontal mirror movement (Pan)
Push slider up in order to move the mirror horizontally (PAN).
Gradual mirror adjustment from one end of the slider to the other (0-255,
128-center). The mirror can be stopped at any position you wish.
4.1.2 Channel 2 - Vertical mirror movement (Tilt)
Push slider up in order to move the mirror vertically (TILT).
Gradual mirror adjustment from one end of the slider to the other (0-255,
128-center). The mirror can be stopped at any position you wish.
4.1.3 Channel 3 - Colour-wheel
Linear colour change following the movement of the slider. In this way you can stop the colour-wheel in any
position - also between two colours creating double-coloured beams.
Between 128 and 190 and between 193 and 255, the colour-wheel rotates continuously the so-called
"Rainbow" effect.
0 - 7 Open/white
8 - 15 Turquoise
16 - 23 Red
24 - 31 Cyan
32 - 39 Light Green
40 - 47 Magenta
48 - 55 Light Blue
56 - 63 Yellow
64 - 71 Green
72 - 79 Pink
80 - 87 Blue
88 - 95 Orange
96 - 103 UV
104 - 111 Red/Blue
112 - 119 Yellow/Green
120 - 127 Light Blue/Magenta
128 - 190 Forwards rainbow effect from fast to slow
191 - 192 No rotation
193 - 255 Backwards rainbow effect from slow to fast
