Future light sc-240 Scanner - Description of the Fixture

7

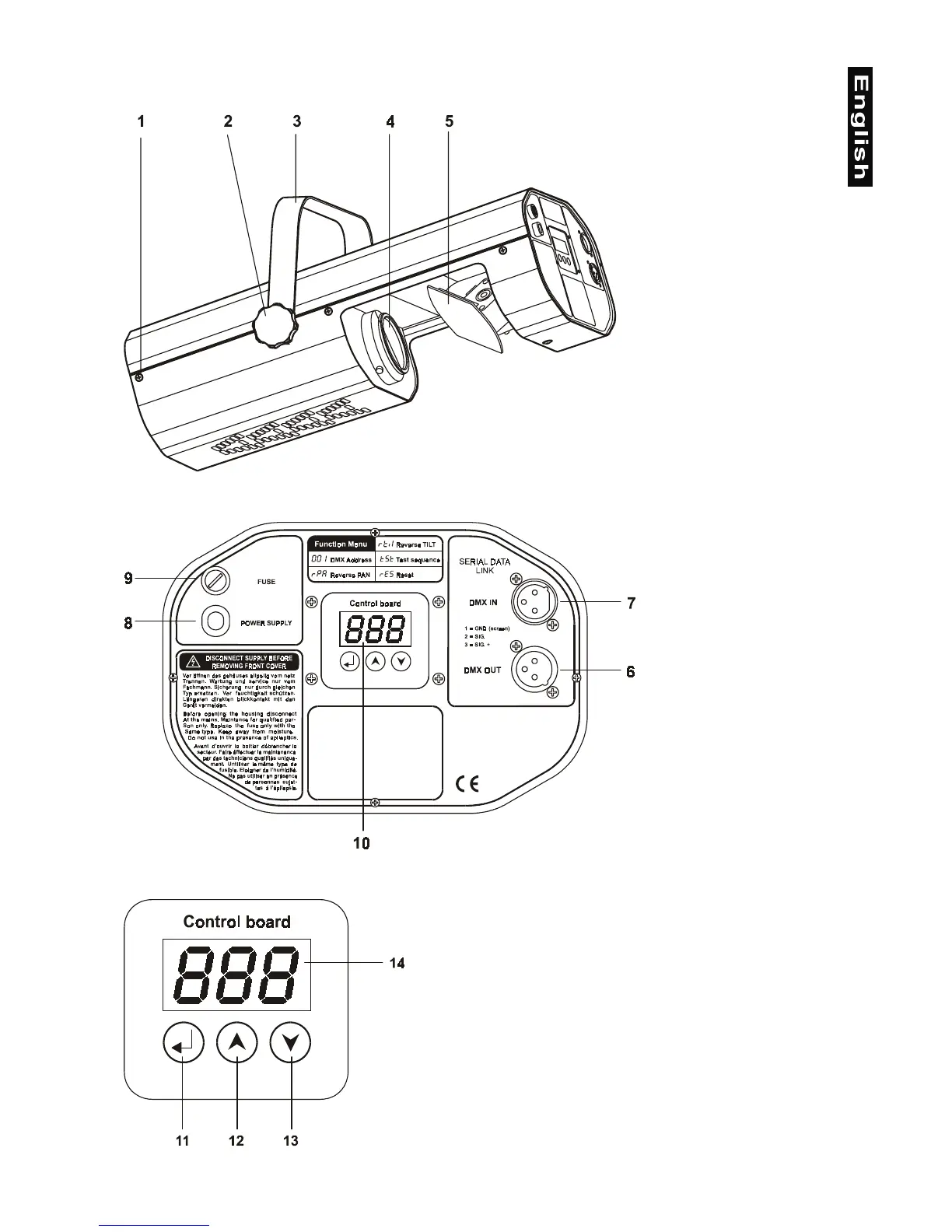

2.2 Description of the fixture
1
- Fastening screws
2
- Fixation screw for bracket
3
- Bracket
4
- Objective
5
- Mirror
Rearpanel:
6
- DMX Output
7
- DMX Input
8
- Powercord
9
- Fuseholder
10
- Control board
Control Board:
11
- Enter/release-button
12
- Up-button
13
- Down-button
14
- Display
