Original User Manual FX-4MS131_rev03

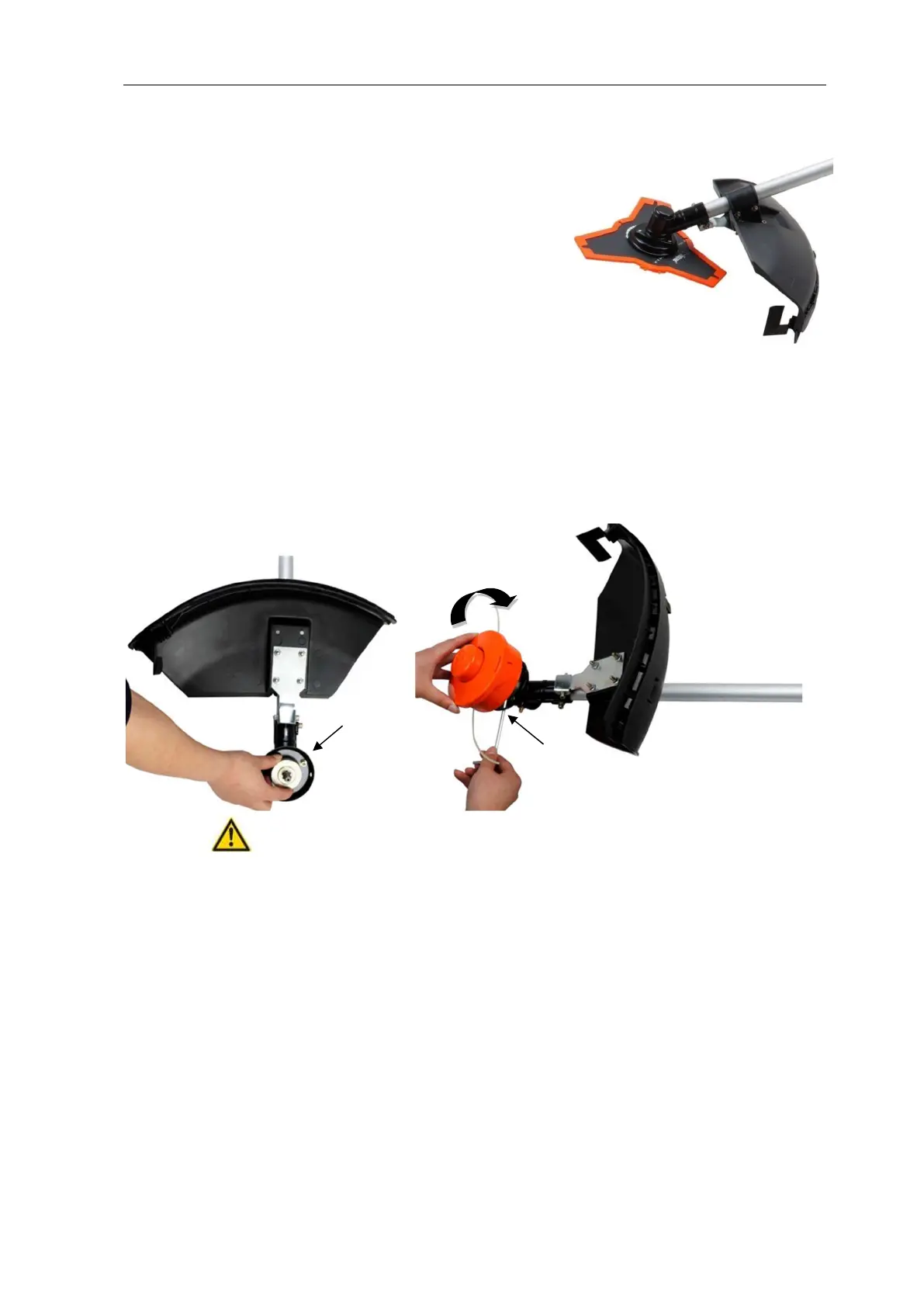

Installing the protective shield
Install the blade guard on the driveshaft tube against the
gear housing. Tighten the holder of the guard so that the
blade guard does not move or slide down during
operation.
Mounting the grass trimmer
Step 1:
Insert the key (1) into the hole in the gear head so that the gear shaft is locked. Unscrew and
remove the nut. Since it is a safety nut, please make sure that there is a left-hand thread here
Step 2:
mount the distance disk (2) and install the thread spool on the gear shaft. And then tighten it
by hand.
Warning!
Make sure that all components are correctly assembled and installed and that all screws are
tightened.
2
1
