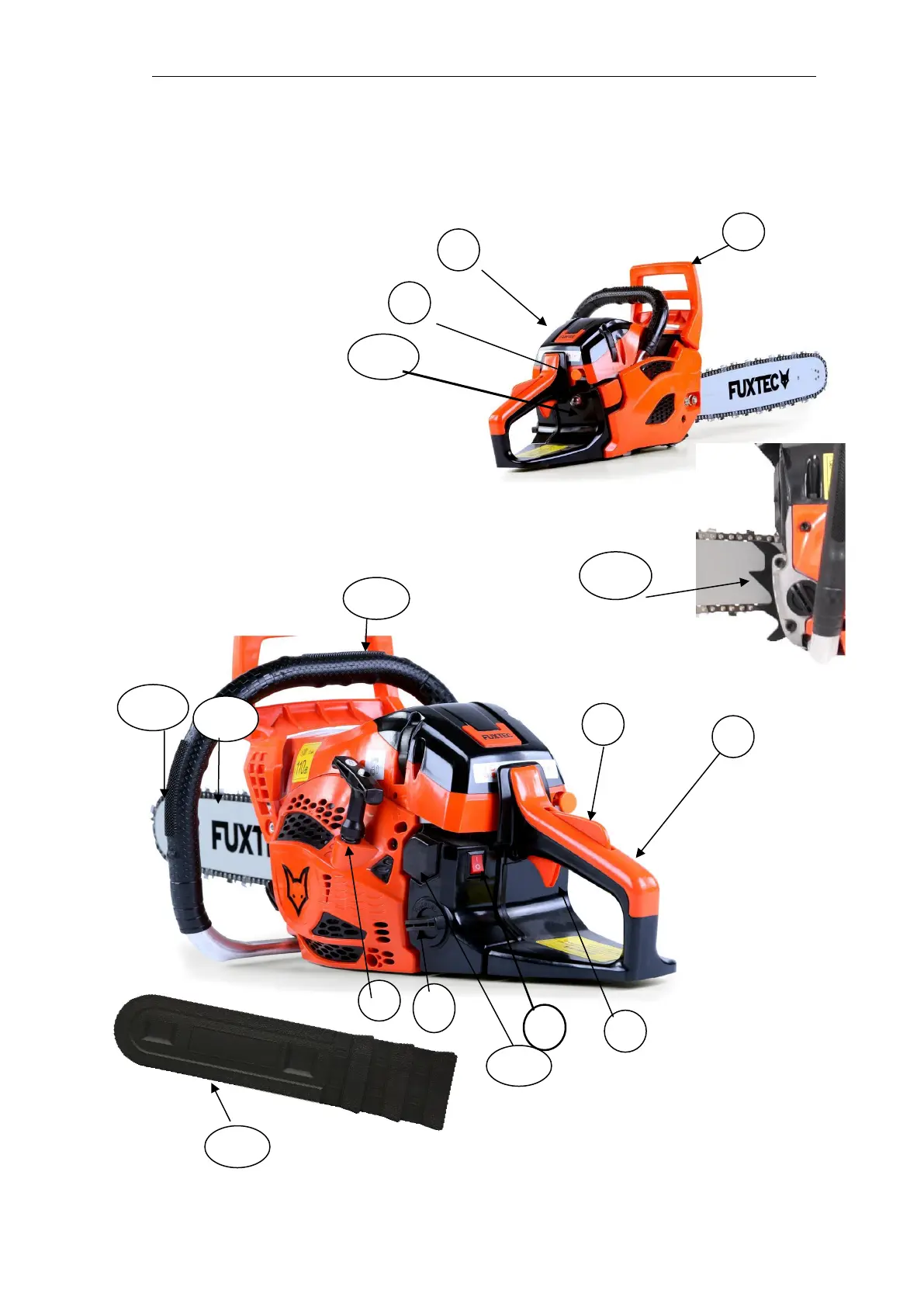

2. Parts overview
1. Front hand guard/chain brake lever
2. Starter handle
3. Air filter cover
4th choke
5. Throttle lock
6. Rear handle
7. Throttle lever
8. Stop switch
9. Fuel tank
10. Oil tank
11. Front handle
12. Saw chain
13. Guide rail
14. Transport protection
15. Claw stop
16. Primer pump
