Original User Manual FUXTEC Petrol Lawnmower FX-RM4180
30

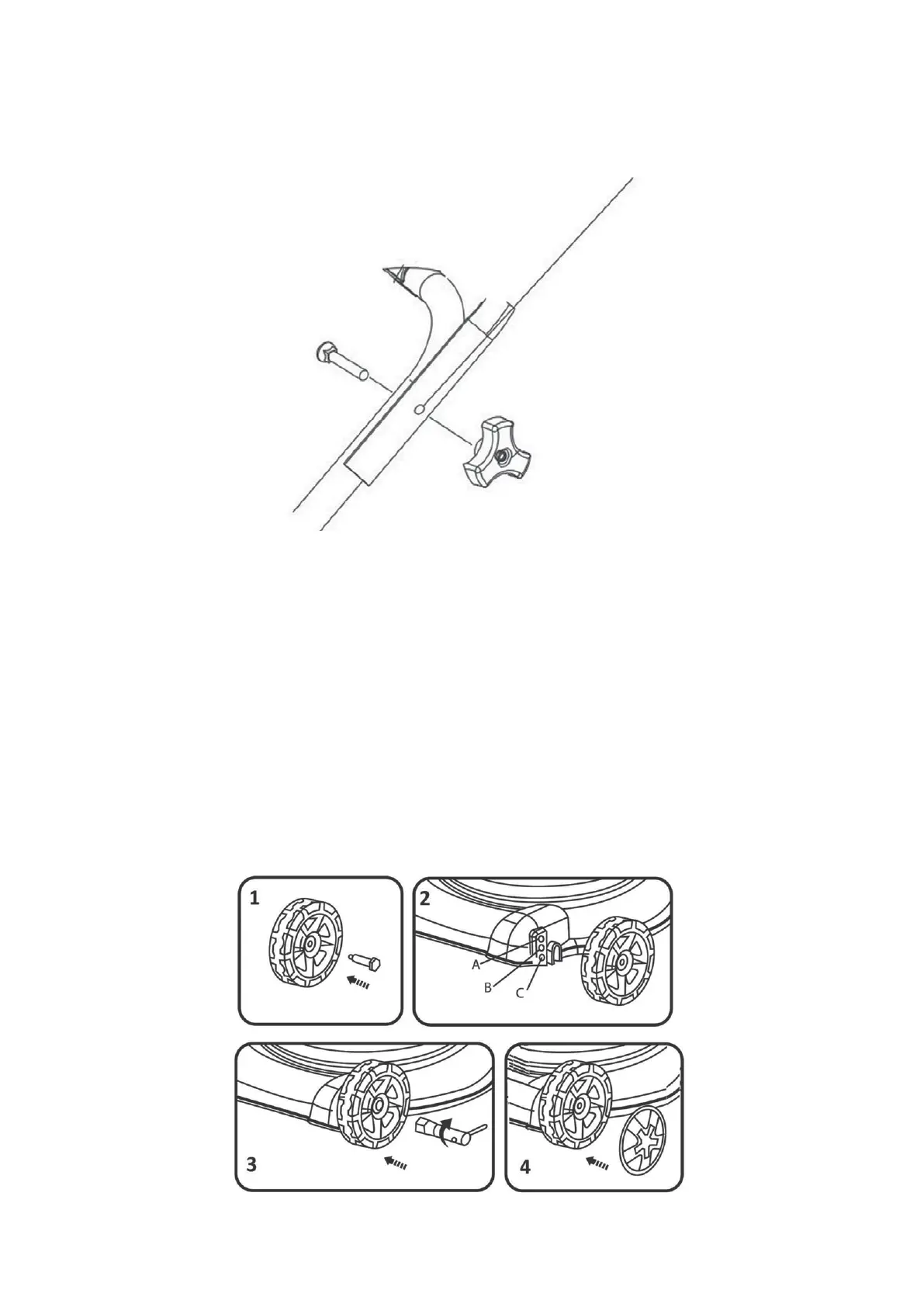

Attach the upper part of the handle to the lower part of the handle using the supplied screws with
wing nuts (see the following figure).
Mounting the wheels and adjusting the cutting height
Push the grub screw (fig. 1) through the wheel.
Select the desired cutting height and screw the wheel into the corresponding hole
(Fig. 2+3)
Cutting heights: A: 25mm B: 40mm C: 55mm.
Put on the wheel cover (Fig. 4). Repeat this procedure for all four wheels. Make sure all four wheels
have been mounted at the same cutting height!
