Original-Bedienungsanleitung FUXTEC Benzin-Rasenmäher FX-RM5170 / RM5170eS
40
Assembly upper and lower tie bar
Carefully unfold the lawnmower handle, not pinching or damaging the lawnmower control cables.

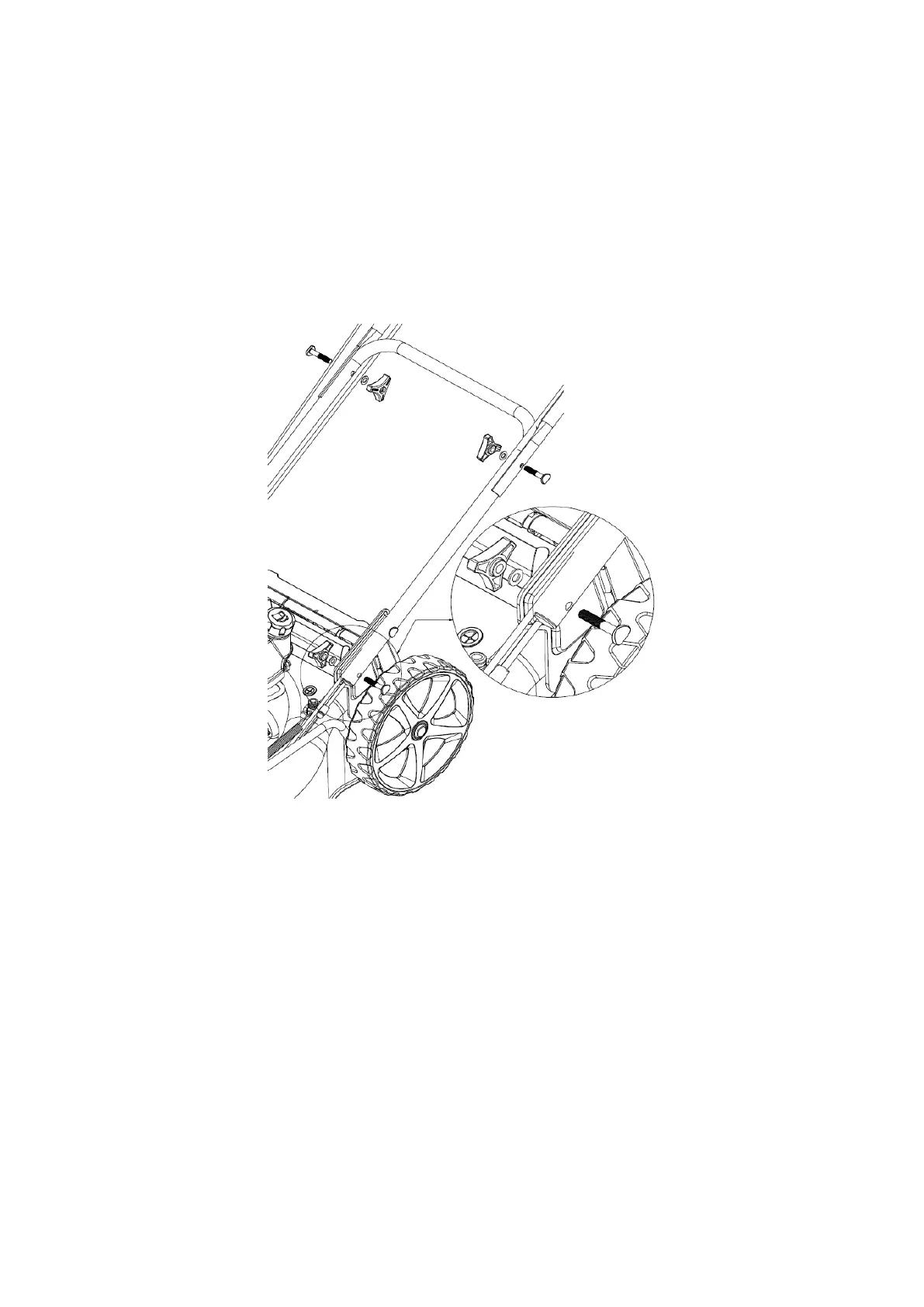

Open the handle and tighten the handle parts with the four wing nuts, one washer each and the
screws, as shown below. Insert the starter cable on the right side of the handle and secure it with the
plastic handle (see the following pictures).
