FXA 501741206 - Wheel and Cover Assemblies

- 7 -

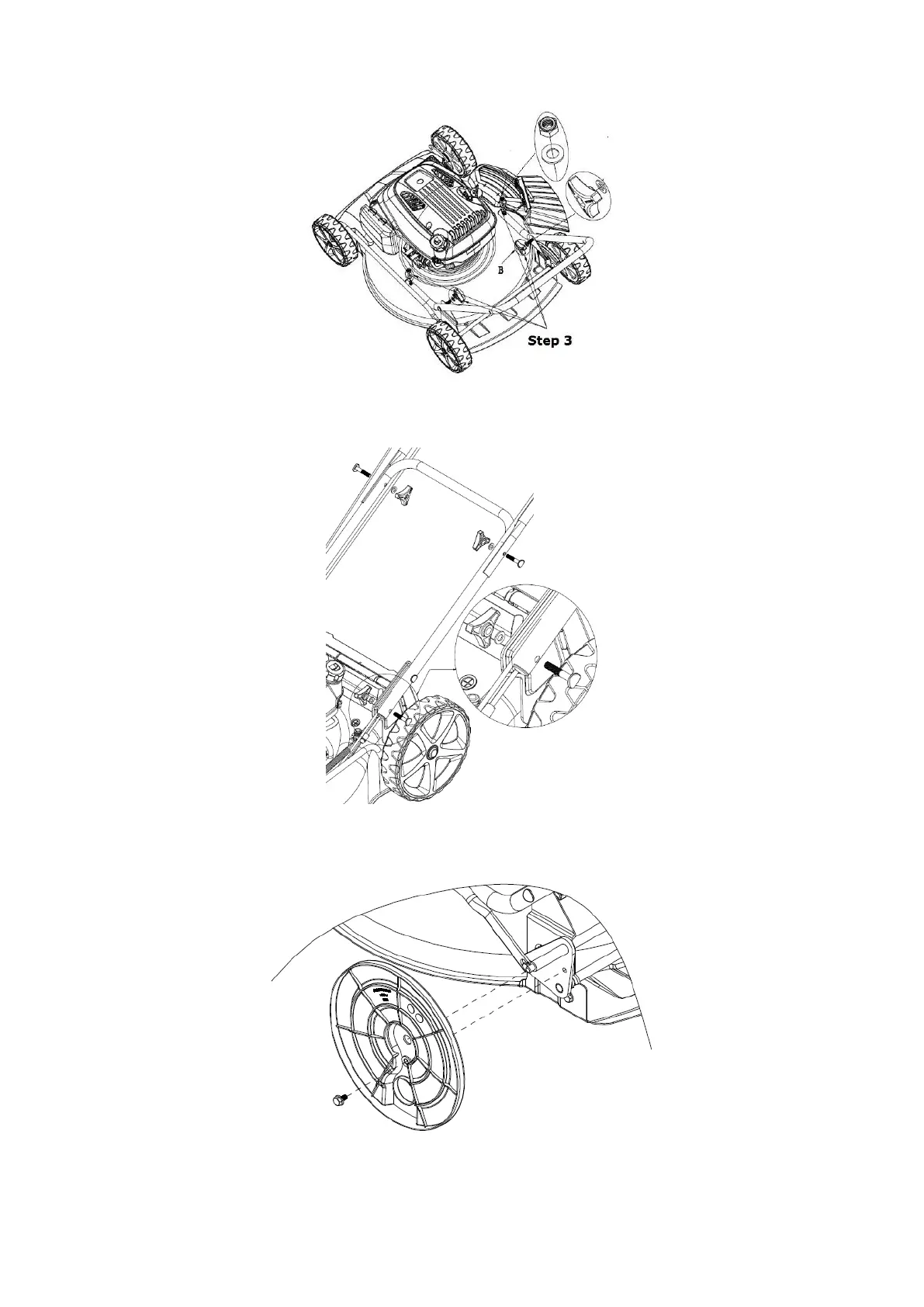

Step 3: Tighten two nuts and two knobs.
Step 4: Screw the upper handles parts with the two bolts and knobs. Put the recoil starter on the right of
the handle and fix the cable with the plastic collar.
Inner Rear Wheel Cover Assembly
- Mounting the inner wheel cover as shown in the illustration.
