PORTABLE BUT INDUSTRIAL LASER MARKING MACHINE
03
03/Installation Instructions

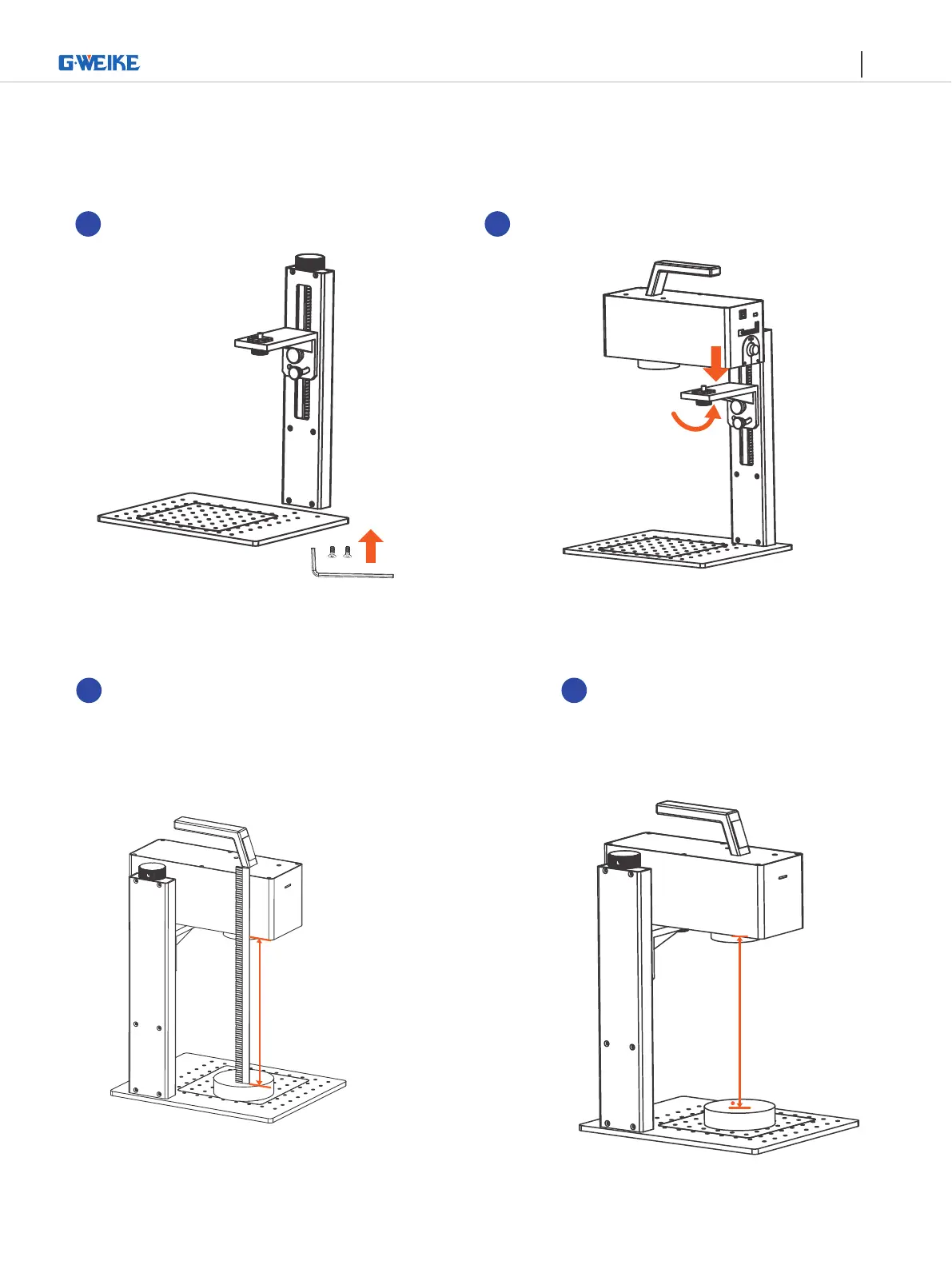

Install the lifting stand
1
Install and secure the main engine
2
Focalizing
Focal Length Ruler Dual Red Light Positioning
Put the zero section of the ruler on the surface of the
workpiece to be engraved, adjust the knob on the
upper end of the lifting stand, and adjust the distance
between the lower end of the main engine and the
surface of the workpiece by 211mm/261mm.
Adjust the knob on the upper end of the
lifting stand so that the two red lights
converge into one point.
Focal length
211mm/261mm
The focal length of each machine will have a slight
deviation, please refer to the red light focus distance
measurement for details.
Focal length
211mm/261mm
1
2
