3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021
Copyright © Gallagher Group Limited Page 12

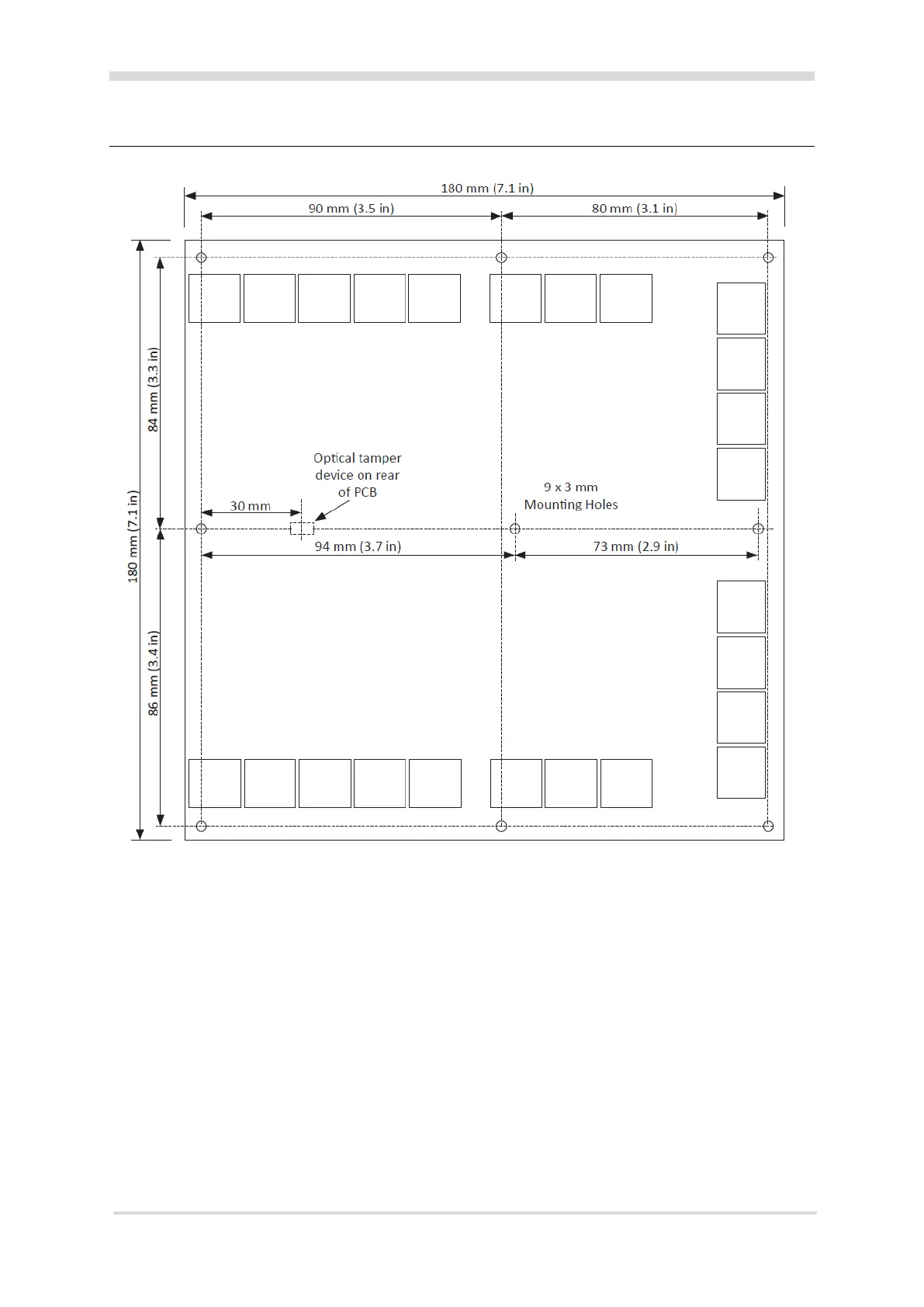

9 Mounting Dimensions
IMPORTANT
This picture is not to scale, therefore use the measurements provided.
