Gallagher HBUS 16 In 16 Out Board - Component Layout; Board Component Identification; HBUS LED Diagnostic Indications; LED Status Meanings

3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021
Copyright © Gallagher Group Limited Page 9

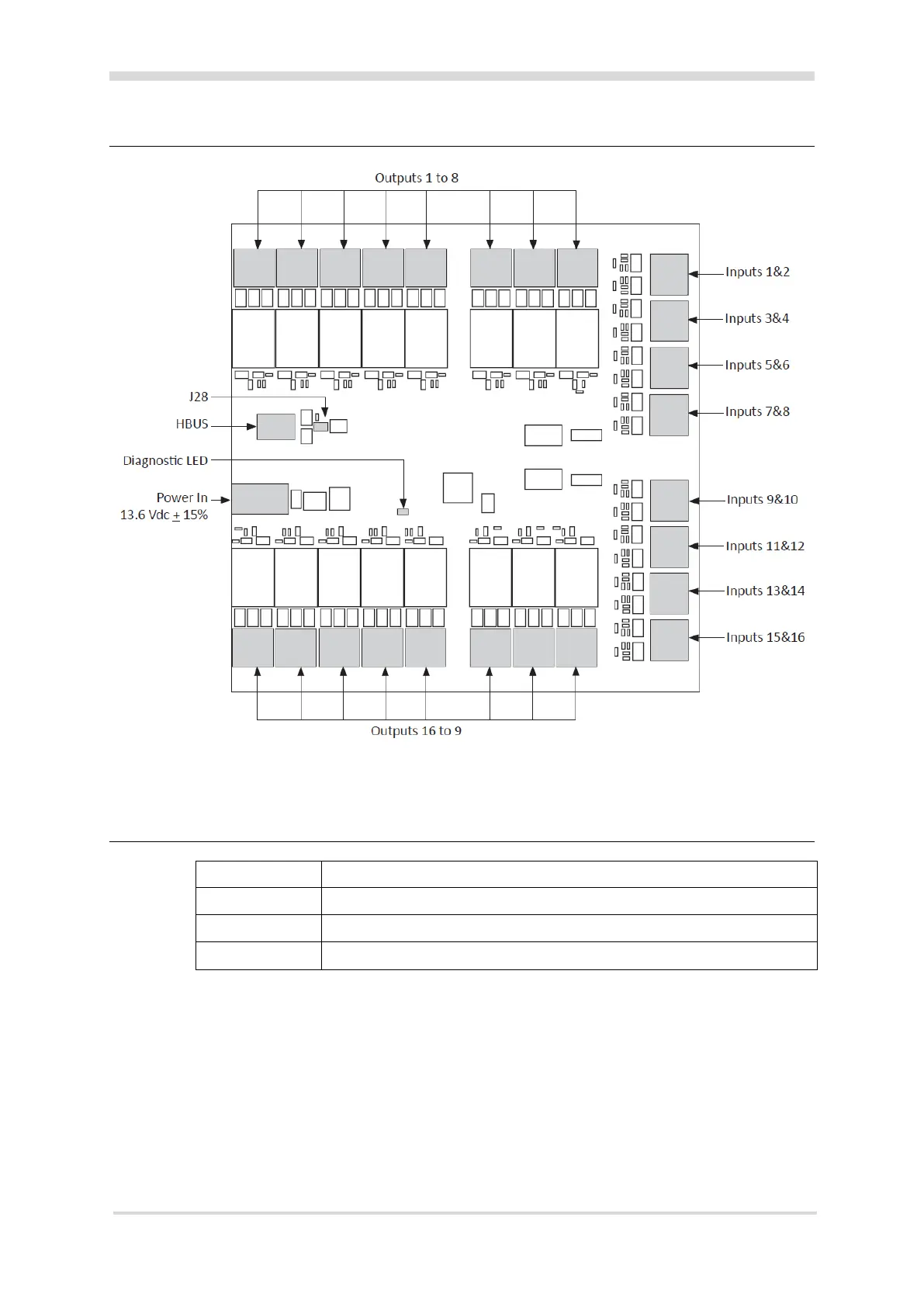

5 Component Layout
6 HBUS LED Diagnostic Indications
Diagnostic LED Diagnostic Indication
3 Flash (Red) No communications with the Controller.
2 Flash (Red) Communications with the Controller, but module is not configured.
1 Flash (Red) Fully configured and functioning normally.
