3E3473 Gallagher HBUS 16 In 16 Out Board Installation Note | Edition 10 | January 2021
Copyright © Gallagher Group Limited Page 7

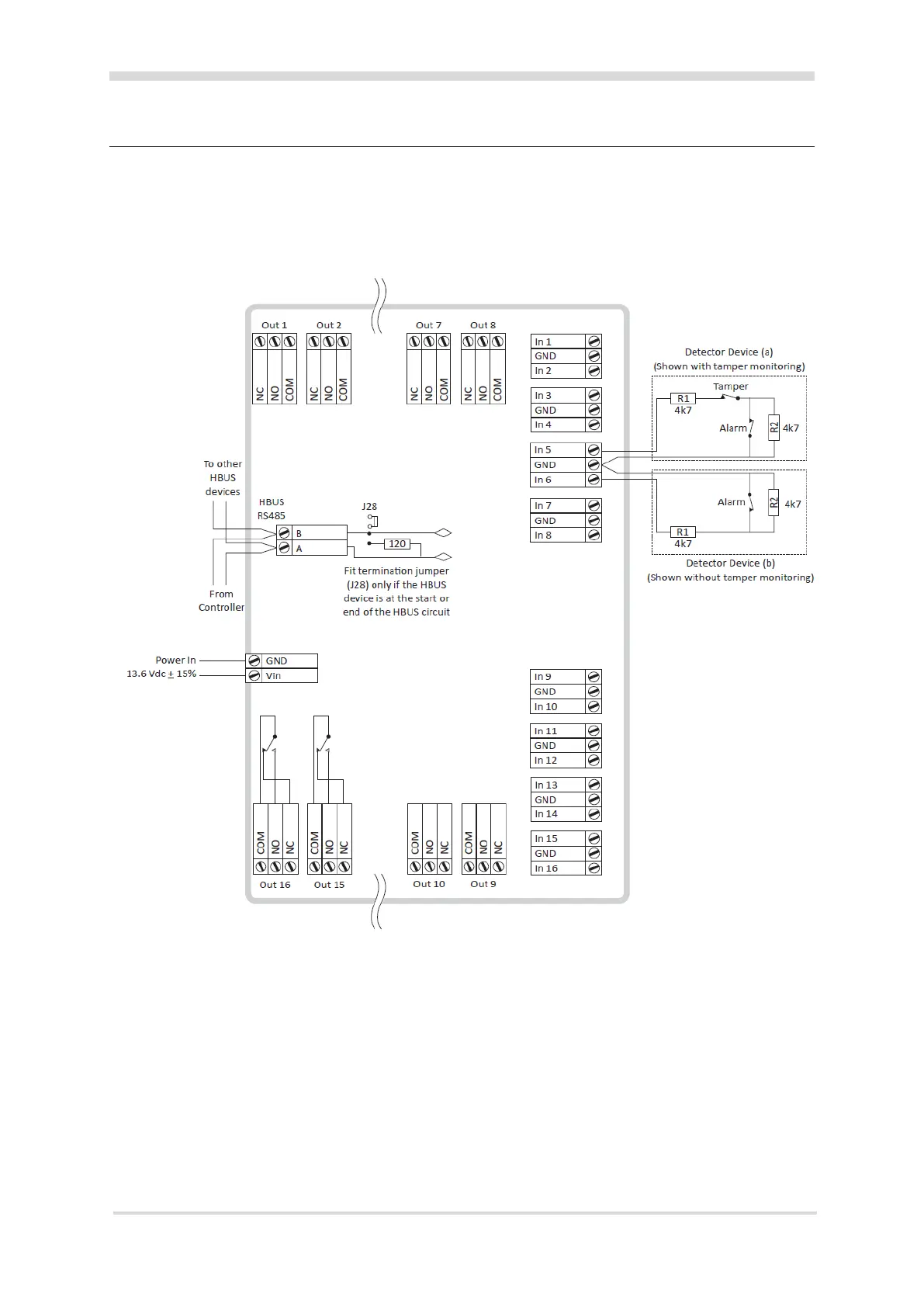

4 Connections
Notes:
• For UL installation the minimum cable size is 22 AWG.
• Run a common ground (-ve) from the Controller for all RS485 devices.
