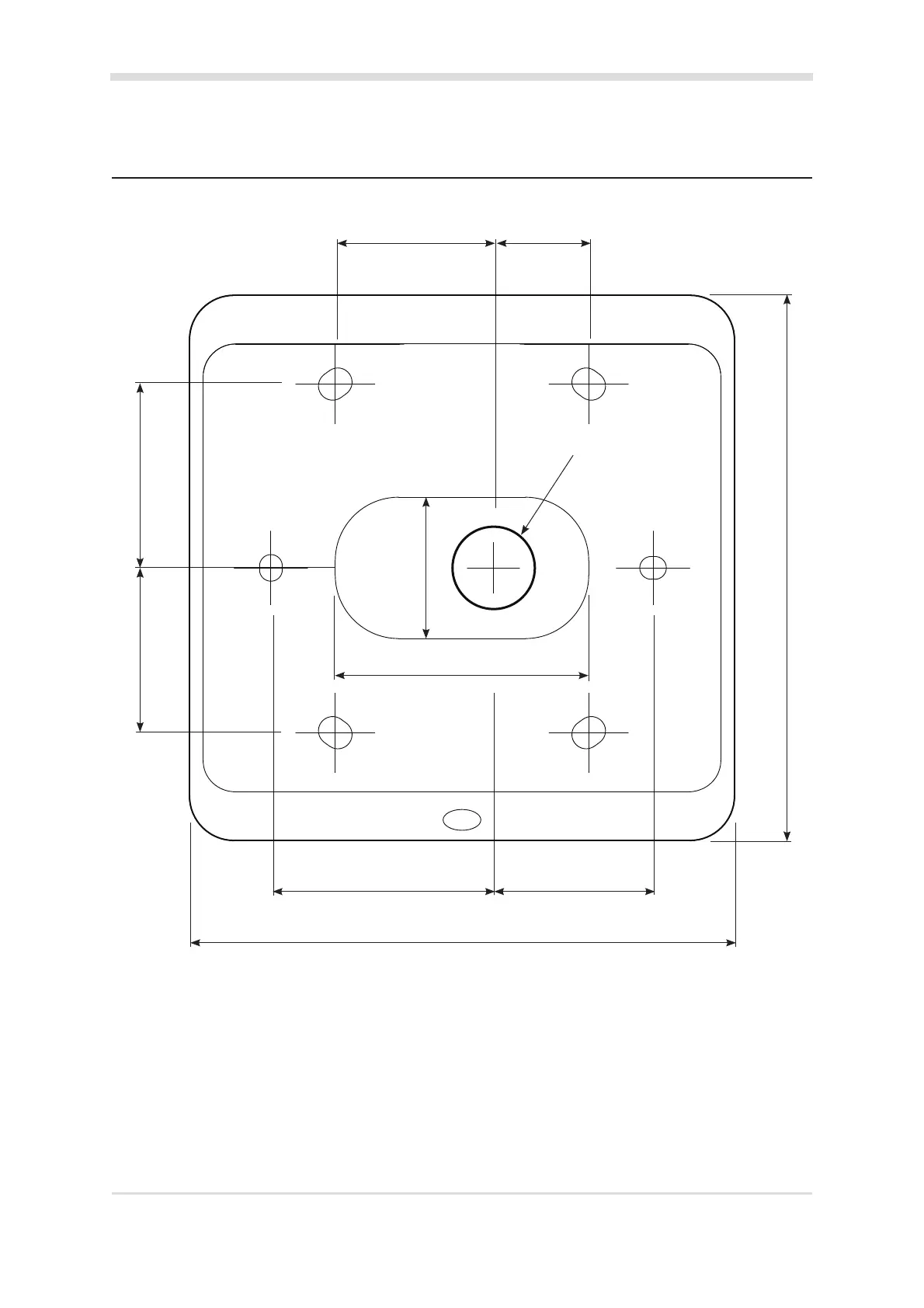

Gallagher T12 - Mounting Dimensions

Page 12
3E4720 Gallagher T12 Reader | Edi on 12 | May 2023
Copyright © Gallagher Group Limited
IMPORTANT
This picture is not to scale, therefore use the measurements provided.
35 mm (1.38")
26 mm (1") 29 mm (1.14")
86 mm (3.39")
13 mm (1/2") diameter
hole for cable
86 mm (3.39")
25 mm (1")
30 mm (1.18")
22.3 mm (0.88")
40 mm (1.57")
10 mm (0.39")
9 MounƟ ng dimensions
