3E2361 Weigh Scale W210 User Manual
9
Weigh Scale
1. Release the catches on the front of the Weigh Scale and open the case.

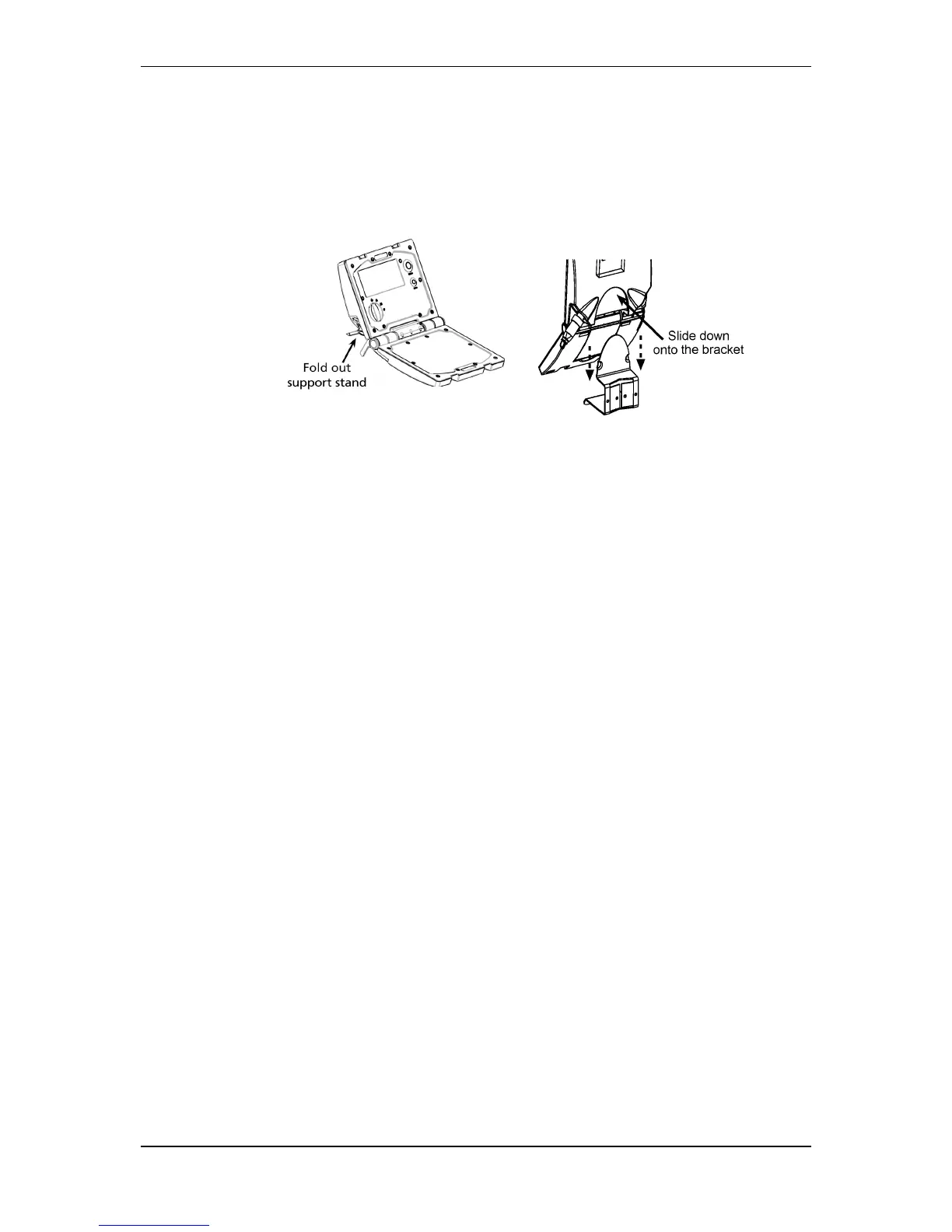

2. Either slide the Weigh Scale onto the bracket, or fold out the support
stand and place the Weigh Scale on a flat surface.
3. Connect the leads from both loadbars to the Weigh Scale.
4. If necessary, connect either the battery charger or an external 12 volt
battery.
5. Select the weighing mode. The Weigh Scale W210 comes with three
different weighing modes. To select the required weighing mode, rotate
the mode select switch located on the left side of the Weigh Scale.
A is the automatic mode
M is the manual mode
F is the fine mode.
6. Press the blue Zero button to zero-out any weight that is on the
platform.
Units of Weight
The Weigh Scale can display weights in either kilograms (kg) or pounds (lb).
To choose either unit of weight measure;
1. Turn the Weigh Scale off.
2. Hold down the green Weigh button and turn the Weigh Scale from Off
to Fine Mode.
3. The word "Unit" will display on the screen.
4. Press the green Weigh button to toggle between "kg" and "lb".
5. When the unit of weight measure that you wish is being displayed, turn
the Weigh Scale Off.
6. The unit of weight will be saved.
