INSTALLATION

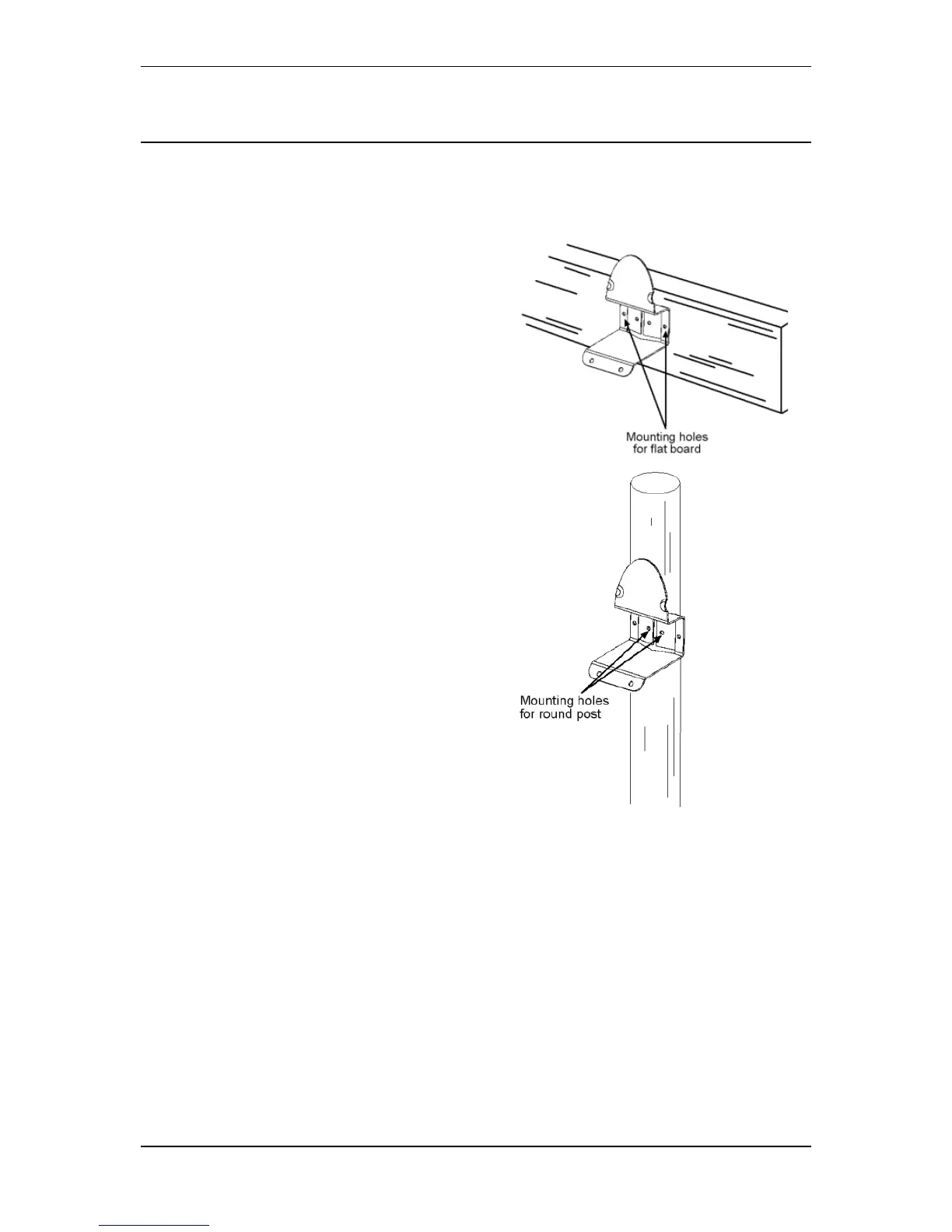

Installing the Weigh Scale bracket
The bracket can be mounted on a flat vertical surface, or on a round post.
To mount the bracket on
a flat vertical surface, for
example a square post or
board, use the outer
holes.
To mount the bracket on
a round post, use the
inner holes.
Don't mount the Weigh Scale bracket on the weighing crate or chute.
