LCA
RG66000986 – Rev.00
29
HMI
6
5
7
4
8
1493,5 85
Fronte unità Front unit
Retro Rear side
37,5
1197
Baricentro con serbatoio vuoto
1
2
3
Fianco sinistro Left side
150 870,5 780 157,5
810
157870 466
9
Vista dall'alto Top view
1960
265
1164
1 Water inlet (2" gas) 2 Water outlet (2" gas) 3 Power supply input 4 Electric control board 5 Refrigerant pressure gauges (optional) 6 Advanced control microprocessor (optional) 7 pump system (optional) 8 Inertial storage reservoir (optional) 9 Condenser protection grilles (optional)
Center of gravity with empty tank

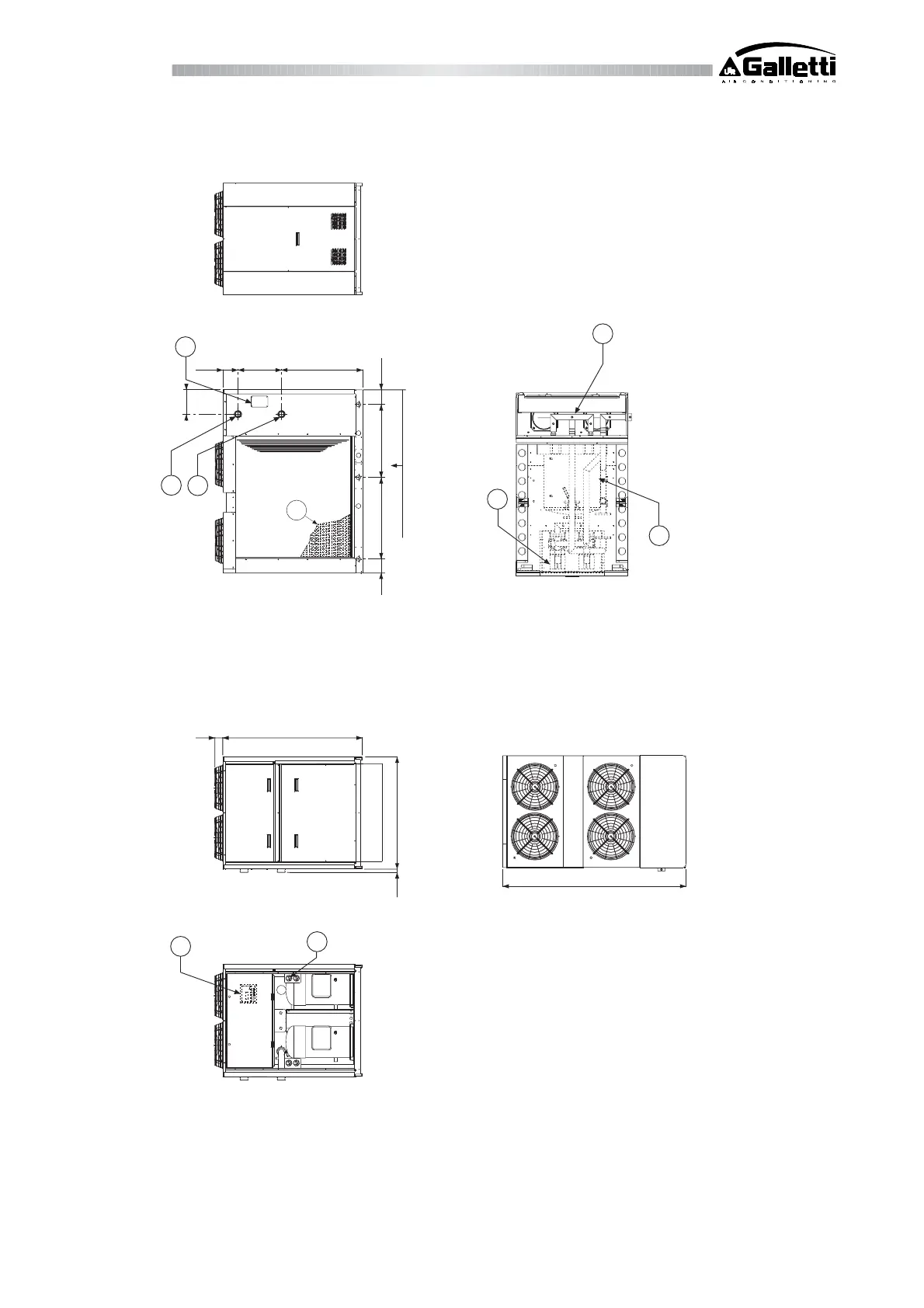

13 DRAWINGS SHOWING OVERALL DIMENSIONS
LCA 045 - 050
