Galletti LCA 080 - Page 30

LCA
RG66000986 – Rev.00
30
HMI
6
5
7
4
8

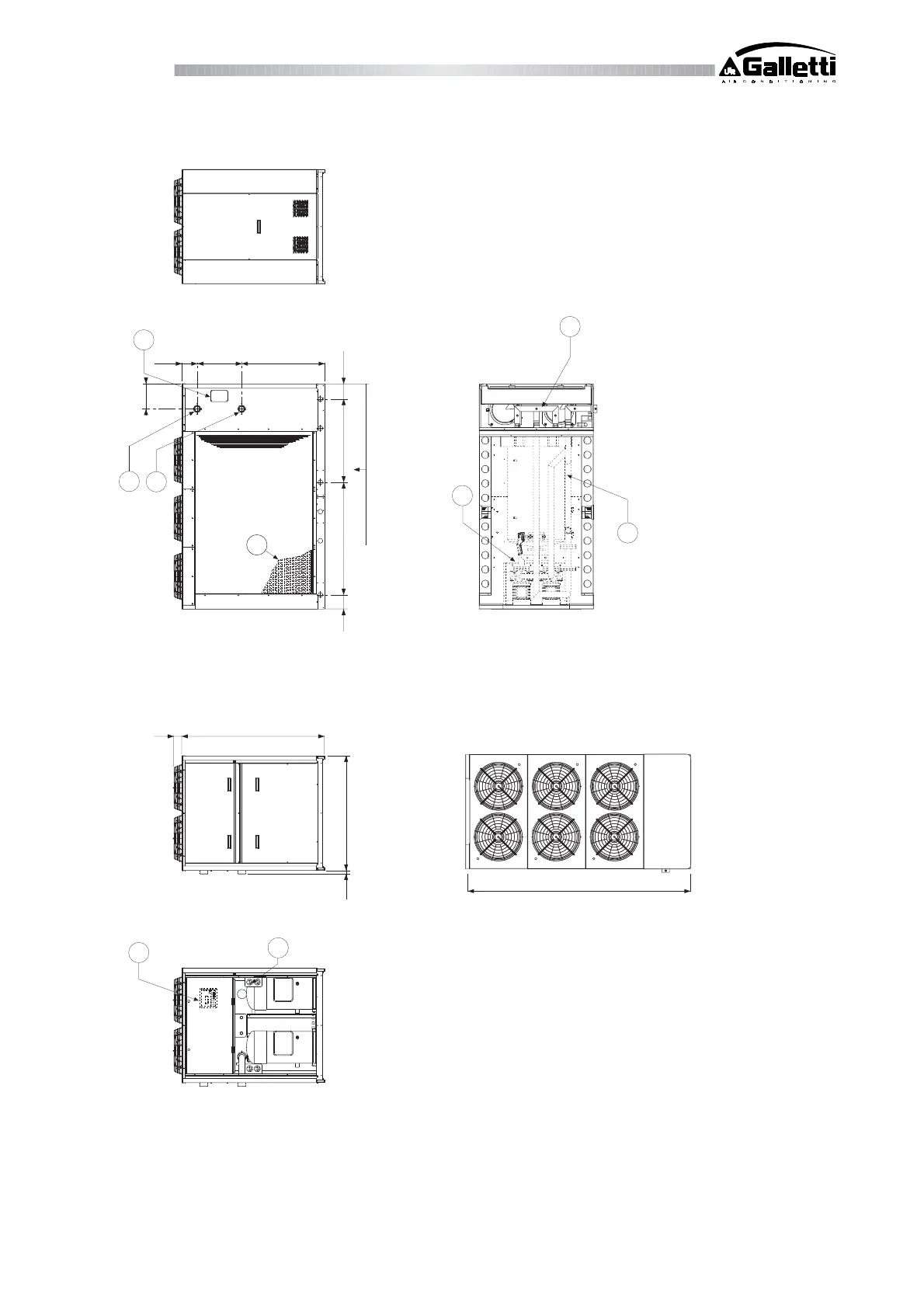

1493,5 85
Fronte unità Front unit
Retro Rear side
37,5 1197
Baricentro con serbatoio vuoto
1
2
3
Fianco sinistro Left side
150 1178 871 158
936
158870 466
Vista dall'alto Top view
2360
265
9
Center of gravity with empty tank
1 Water inlet (2" gas) 2 Water outlet (2" gas) 3 Power supply input 4 Electric control board 5 Refrigerant pressure gauges (optional) 6 Advanced control microprocessor (optional) 7 pump system (optional) 8 Inertial storage reservoir (optional) 9 Condenser protection grilles (optional)
LCA 060 – 070 - 080
