Support Post Installation (con’t)
After removing the mounting bolt, remove
and discard the plastic washers that are
installed for shipping purposes.
3
ASSEMBLY INSTRUCTIONS

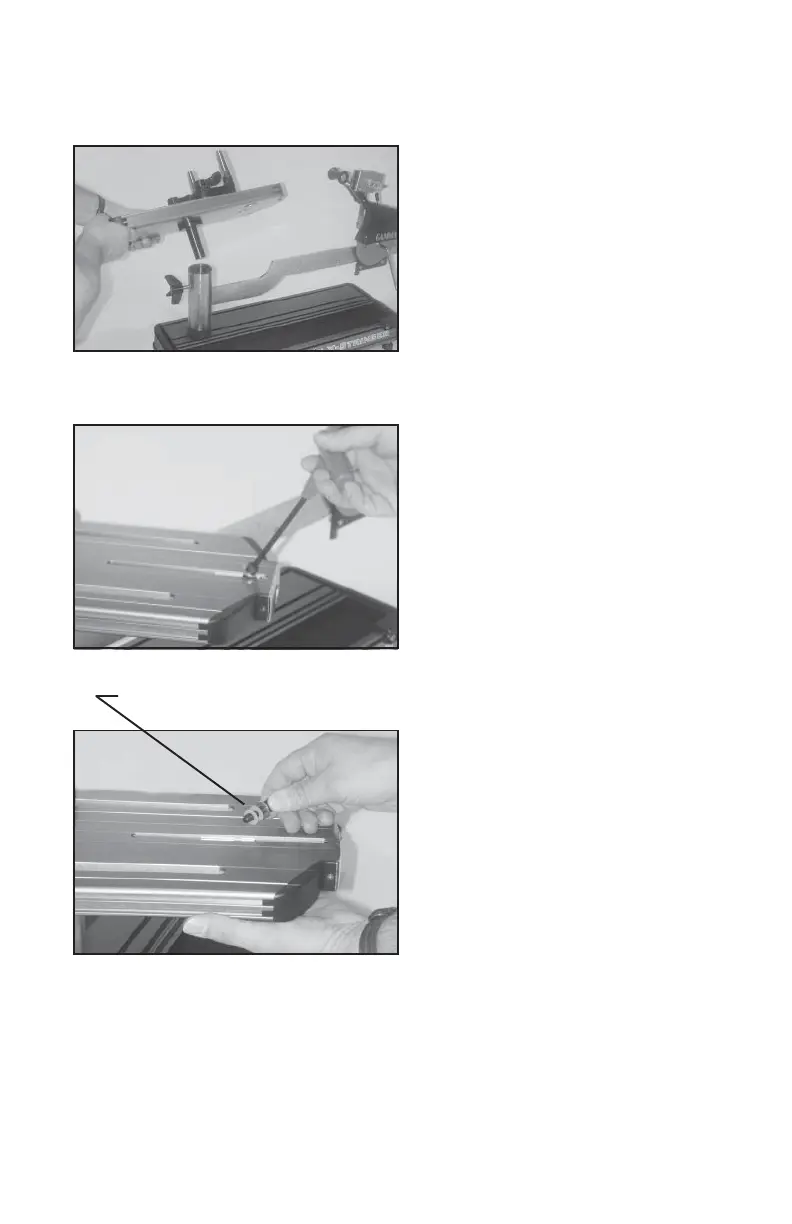

Turntable Installation
Insert the turntable pin into the bearing of the
machine base.
Support Post Installation
To install the support posts you must first
remove the mounting bolt from the mounting
plate that sets inside the central cavity of the
turntable. There are large holes stamped on
the underside of the turntable that allow you
to support the mounting plate with your
fingers while removing the mounting bolt.
Remove and Discard Plastic Washers
