Notes on Use
23

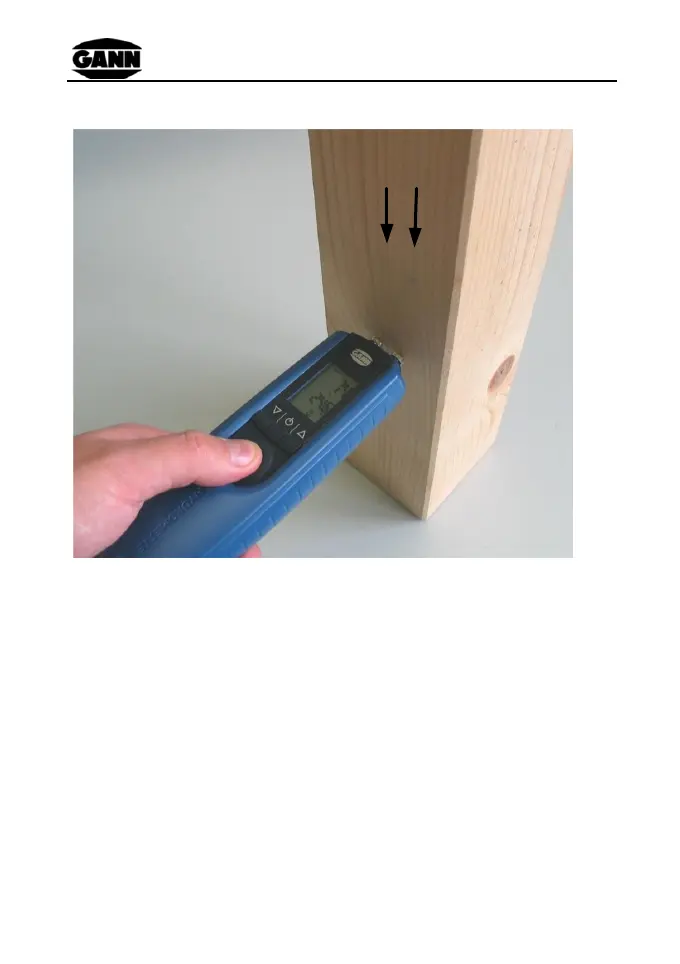

Figure 4-1 Measuring perpendicular to the grain
In order to achieve high-quality measurement results the selected
wood samples should be measured at several points. The
electrode pins must be pressed into the wood across the grain to at
least 1/4 of the total wood thickness, but 1/3 maximum. Care must
be taken that the knurled screws are always sufficiently tightened to
prevent measuring errors and the area between the tip slots is kept
clean.
It is not possible to measure frozen wood.
