INSTALLATION PART 2: POWER ADAPTER
Step 2: Placing Power Adapter

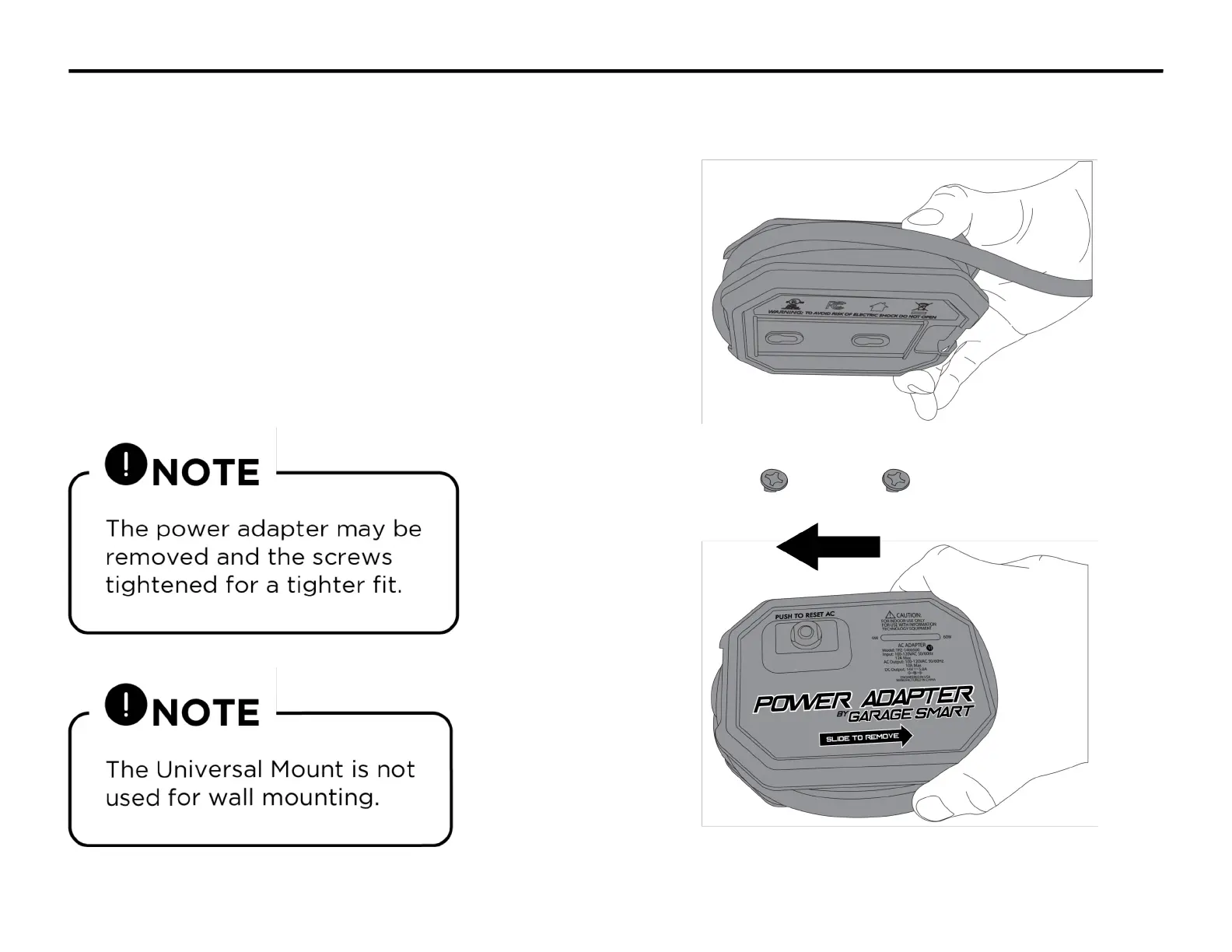

Line up the product mounting holes with the
screws as shown. Place the product over the
screws and slide to lock into place.
There is more than one orientation that can
be used.
Fig 2.3
Fig 2.4
17
