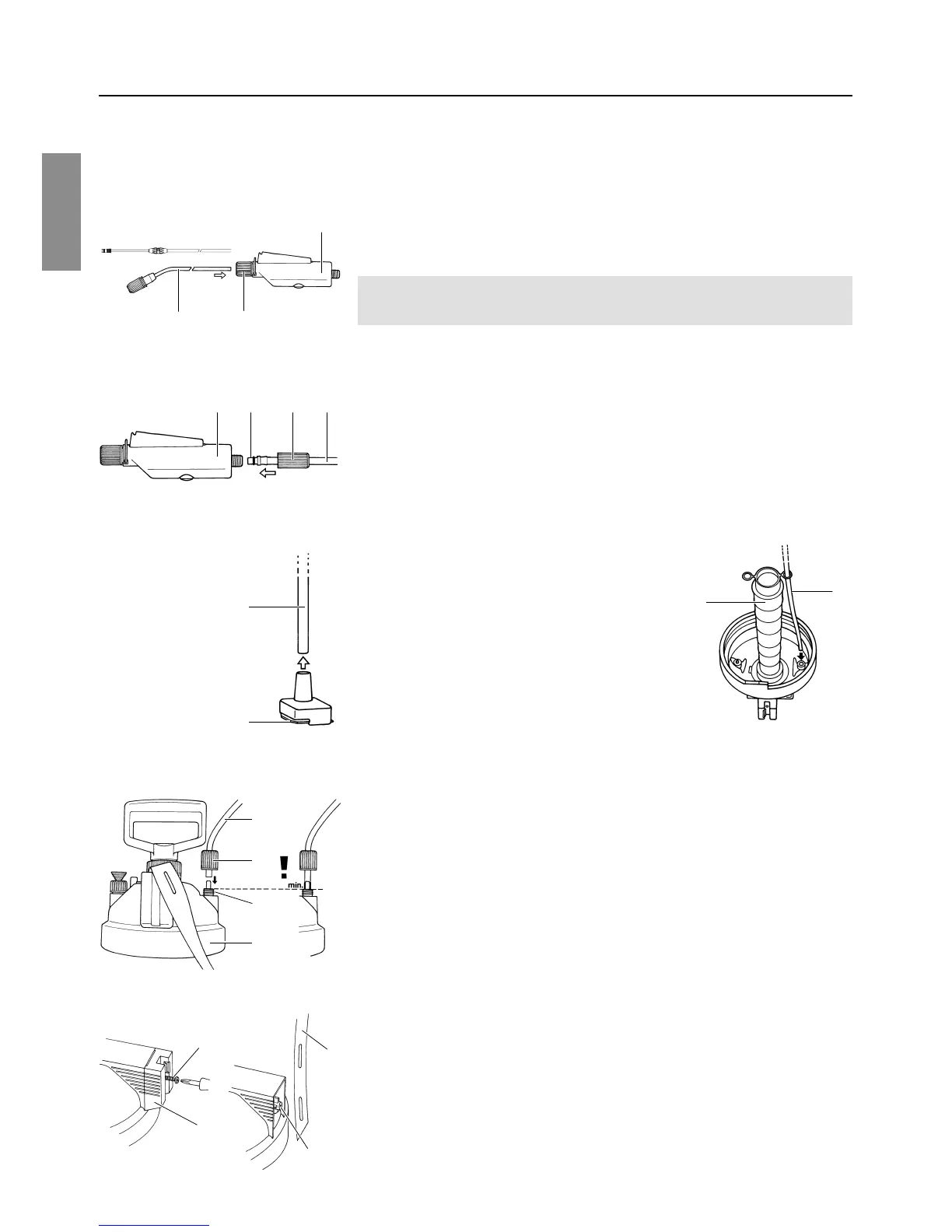

3. Assembly
3.1. General Assembly Instructions for all Pressure Sprayers
(Art. No. 867/ 869 / 875 / 879 / 880)
1. Unscrew the union nut
1
on the hand valve
2
.
2. Push the spray tube
3
all the way into the hand valve
2
.
3. Tighten the union nut
1
on the hand valve
2
by hand
(do not use pliers).
The sprayer tube of art. 880 is telescopic (min. / max. sprayer
tube length 60 /100 mm).
1. Push the long union nut
4
over the spray hose
5
.
2. Push the spray hose
5
with connection nipple
6
into the
hand valve
2
.
3. Tighten the long union nut
4
on the hand valve
2
by hand
(do not use pliers).
3.2. Assembly Instructions for Pressure Sprayer Art. No. 869
1. Shut the filter
7
and press firmly
into the suction pipe
8
.
2. Guide the suction pipe
8
through
the eyelet at the pump tube
9
and press firmly into the opening in
the container cap.
1. Push the short union nut
0
over the spray hose
5
.
2. Push on the spray hose
5
so that it covers at least the
beginning of the thread
A
.
3. Screw the short union nut
0
onto the container cap
B
and tighten by hand (do not use pliers).
1. Unscrew the screw
C
using a screwdriver and remove the
spray tube holder
D
.
2. Put the shoulder strap
E
with the elongated hole over the
plastic tube
F
.
3. Reattach the spray tube holder
D
and screw in the screw
C
using a screwdriver.
Mounting the spray tube
in the hand valve:
Attaching the spray hose
to the hand valve:
Installing the filter
and suction pipe:
Attaching the spray hose
to the container cap:
Attaching the shoulder strap:
2 6 4 5
8
7
5
0
A
B
1. 2.
F
E
C
D
8
9
2
1
3
Art. 880
