SPARE PARTS LIST GPCS 42cc
NR. DESCRIPTION
NR. DESCRIPTION NR. DESCRIPTION
14
GB GB
1. With a basic understanding of kickback, you can
reduce or eliminate the element of surprise. Sudden
surprise contributes to accidents.
2. Keep a good firm grip on the saw with both hands,
the right hand on the rear handle, and the left hand
on the front handle, when the engine is running. Use
a firm grip with thumbs and fingers encircling the
chain saw handles. A firm grip will help you reduce
kickback and maintain control of the saw. Don’t let
go.
3. Make sure that the area in which you are cutting is
free from obstructions. Do not let the nose of the
guide bar contact a log, branch, or any other
obstruction which could be hit while you are operat-
ing the saw.
4. Cut at high engine speeds.
5. Do not overreach or cut above shoulder height.
6. Follow manufacturer’s sharpening and maintenance
instructions for the saw chain.
7. Only use replacement bars and chains specified by
the manufacturer or the equivalent.
NOTE: Low-kickback saw chain is chain that has met the
kickback performance.
Your Gardenline Chain Saw is provided with a safety
label located on the chain brake lever/hand guard. This
label, along with the safety instructions on these pages,
should be carefully read before attempting to operate
this unit.

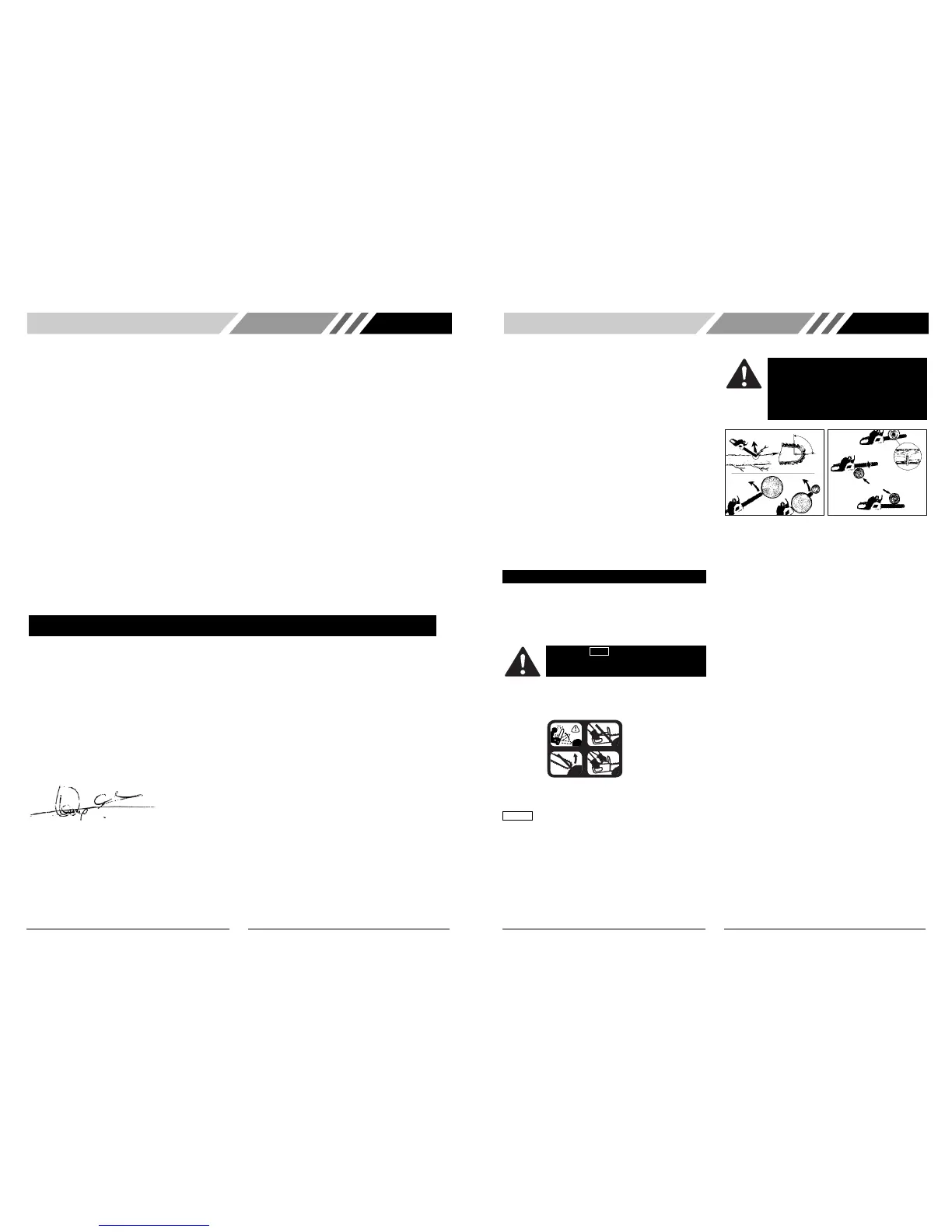

• HOW TO READ SYMBOLS AND COLORS
(FIG. 1)
GREEN RECOMMENDED
Recommended cutting procedure.
WARNING
1. Beware of kick back.
2. Do not attempt to hold saw with one hand.
3. Avoid bar nose contact.
RECOMMENDED
4. Hold Saw properly with both hands.
• DANGER! BEWARE OF KICKBACK!
KICKBACK may occur when the NOSE or TIP of the
guide bar touches an object, or when wood closes in
and pinches the saw chain in the cut.
Tip contact in some cases may cause a lightning-fast
reverse reaction, kicking the guide bar up and back
toward the operator.
PINCHING the saw chain along the BOTTOM of the
guide bar may PULL the saw forward away from the
operator. PINCHING the saw chain along the TOP of
the guide bar may PUSH the guide bar rapidly back
toward the operator.
Any of these reactions may cause you to lose control of
the saw, which could result in serious personal injury.
IMPORTANT SAFETY
WARNING: RED Used to warn that an
unsafe procedure should not be performed.
1
2
3
4
Fig. 1
WARNING: Kickback can lead to dangerous
loss of control of the chain saw and result in
serious or fatal injury to the saw operator or to
anyone standing close by. Always be alert.
Rotational kickback and pinch-kickback are
major chain saw operational dangers and the
leading cause of most accidents.
Fig. 2A
A
A
B
A
A
B
C
Fig. 2B
BEWARE OF:
ROTATIONAL KICK-
BACK (Fig. 2A)
A = Kickback path
B = Kickback reaction
zone
THE PUSH (PINCH
KICKBACK) AND PULL
REACTIONS (Fig. 2B)
A = Pull
B = Solid objects
C = Push
We declare under our sole responsibility that this product is in conformity with the following standards or
standardized documents:
EN ISO 11681-1:2004
in accordance with the regulations:
98/37EEC, 89/336/EEC, 2000/14/EC
from 01-09-2005
ZWOLLE NL
W. Kamphof
Quality department
It is our policy to continuously improve our products and we therefore reserve the right to change the product
specification without prior notice.
Servotool B.V • Lingenstraat 6 • 8028 PM Zwolle • The Netherlands
CE
DECLARATION OF CONFORMITY (UK)
1 CAP, BEARING
2 BEARING
3 CRANK/ROD ASS'Y
4PISTON
5 RING, PISTON
6 ROLLER, PISTON
7 PIN, PISTON
8 RING
9 CASE, CRANK
10 SPARK PLUG
11 CYLINDER
12 RUBBER, ISOLATOR
13 SPACER
14 SCREW
15 ISOLATOR, CARBURETOR
16 SPRING WASHER
17 SCREW
18 SPACER
19 CARBURETOR
20 AIR FILTER ASS/Y
21 NUT
22 SCREW
23 HANDLE, LEFT, 348C GREEN
24 TRIGGER, THROTTLE, 122C YELLOW
25 THROTTLE LATCH, RELEASE, 122C YELLOW
26 SPRING
27 SCREW
28 RUBBER
29 HANDLE, RIGHT, 348C GREEN
30 SWITCH
31 WASHER
32 SCREW
33 HANDLE, FRONT, BLACK
34 STARTER ASS'Y, BLACK+122C YELLOW
35 NUT
36 FLYWHEEL
37 SCREW
38 WIRE ASS'Y
39 IGNITION ASS'Y
40 CONDUCTIVE PLATE
41 OIL CAP ASS'Y, BLACK
42 SPRING ASS'Y
43 PRIMER
44 FUEL CAP ASS'Y, BLACK
45 SPRING
46 SCREW
47 FILTER
48 HOUSING ASS'Y, 348C GREEN
49 HOLDER, CABLE
50 LEVER, CHOKE, 122C YELLOW
51 HOLDER, CHOKE LEVEL
52 SPRING
53 CONNECTOR
54 OIL PIPE
55 PUMP ASS'Y
56 SPACER
57 BAFFLE
58 BAFFLE
59 MUFFLER ASS'Y
60 SCREW
61 CABLE, THROTTLE
62 FUEL PIPE
63 WOODRUFF KEY
64 MESH
65 FILTER, AIR
66 SPIKED BUMPER
67 SCREW
68 SCREW
69 SHROUD, 348C GREEN
70 SCREW
71 NUT
72 FELT
73 WORM
74 CAP, ANTI-DUST
75 SCREW
76 SCREW
77 DRUM ASS'Y
78 CLUTCH ASS'Y
79 CAP, ANTI-DUST
80 NUT
81 BRAKE KIT ASS'Y, BLACK
82 NUT
83 18" BAR, OREGON
84 CHAIN, OREGON 91PJ
85 WASHER
86 SCREW
87 WRENCH
88 BAR SHEATH, 18"
