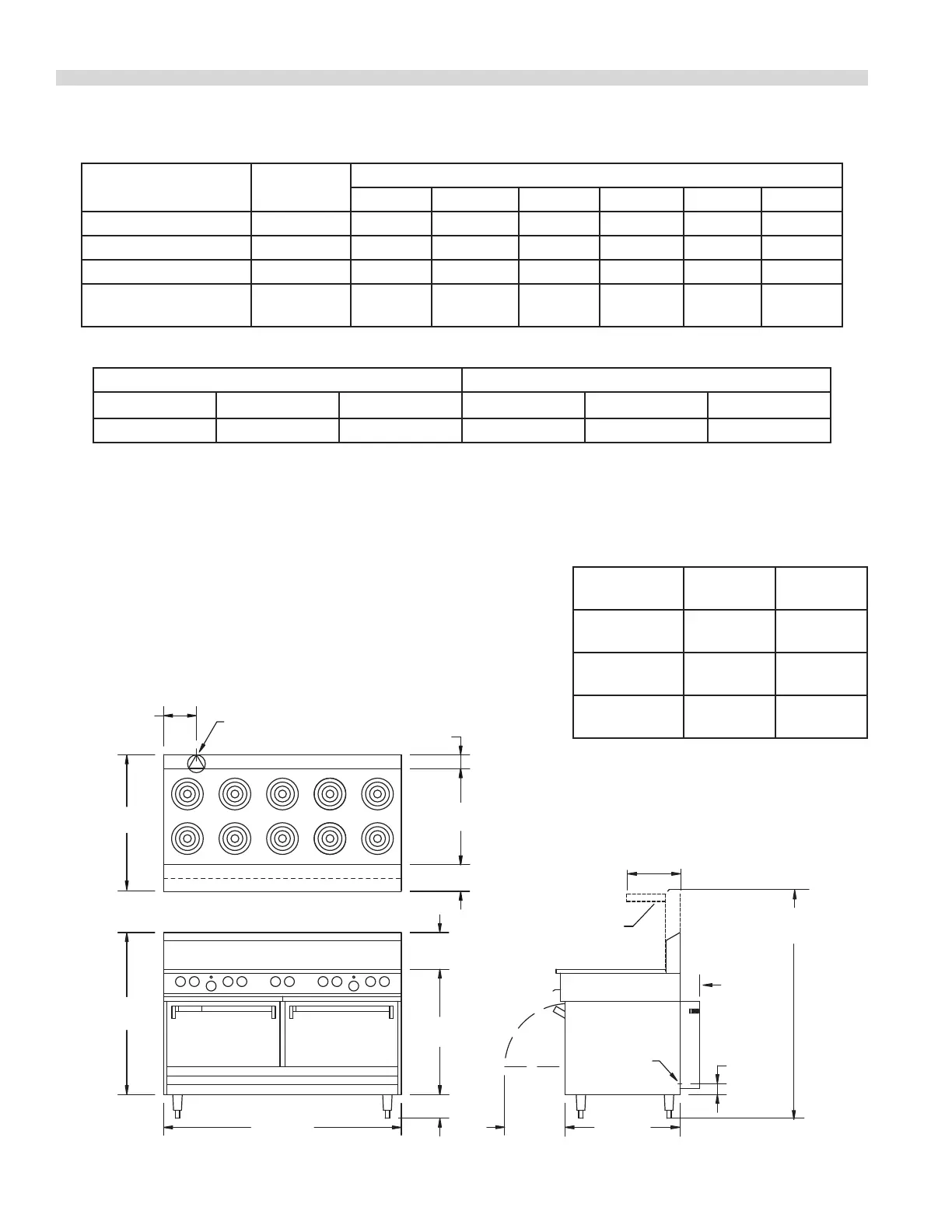

DIMENSIONS AND SPECIFICATIONS, MODELS S,SU & SS684
7-1/2"
[190mm]
REAR CABLE
ENTRANCE
3-1/2"
[829mm]
24-1/2"
[622mm]
34-1/4"
[870mm]
41"
[1041mm]
9-1/4"
[235mm]
31-3/4"
[806mm]
6"
[152mm]
60"
[1524mm]
REAR CABLE
ENTRANCE
15-1/4"
[387mm]
29"
[737mm]
3"
[76mm]
4-3/4"
[121 mm]
W/OPTIONAL
RC MOTOR
6"
[152mm]
OPTIONAL
HIGH SHELF
13-5/8"
[346mm]
57-5/8"
[1465mm]
Model
Total Kw
Load
Nominal Amps
208V/1Ph 208V/3 Ph 240V/1Ph 240V/3 Ph 400 V/3N 415V/3N
S684* 27 127 76 110 66 — —
SS/SU684** 33 157 97 136 84 60 58
SS/SU684RC2*** 34 164 100 142 87 60 58
Salamander
Broiler****
7 N/A***** 23 29 20 4 4
*(All purpose tubular elements) **(Sealed -top elements, Model # SS684 in North America) *** Maximum on any 684 series range.
****Add when wired to range base (SER/SUER-680) *****Note: For 208V/1phase the salamander cannot be wired into the range.
Exterior Dimensions Oven Interior Dimensions
Height Width Depth
†
Height Width Depth
47" (1194mm) 60" (1524mm) 34-1/4" (870mm) 13-1/2" (343mm) 26-1/4” (667mm) 22" (559mm)
† With Front Rail Note: Shipping Cubic Feet is 84.5.
Ratings:
Tubular Elements - Small 6-1/2" (165mm) - 1250 Watts. Large 8-1/2" (216mm) - 2100 Watts
Sealed Elements - Small 7-1/2” (191mm) - 2000 Watts. Large 9” (229mm) - 2600 Watts
Hot Plate - (per 12"/305mm section) - Front and Rear sections each 1675 Watts, (3350 Watts total)
Griddle - (per 12"/305mm section) - 3350 Watts
Standard Oven - 4.85 kW
Convection Oven - 5.0 kW (plus 0.5kW fan motor, for 5.5kW total)
NOTE: Many local codes exist, and it is the responsibility of the Owner
and the Installer to comply with those codes.
Installation
Clearances:
Side Back
Range w/o
Salamander
3” (76mm) 2” (51mm)
Range w/
Salamander
7” (178mm) 2” (51mm)
Hot Plate
10”
(254mm)
—
NOTE: For ranges with convection oven(s), (models with
sux `RC’ or `RC2’), air circulation is required for proper
operation of fan motors. These models must not be dais
mounted or installed without legs.
