3"
[76mm]
REAR CABLE
ENTRANCE
34"
[864mm]
16-1/4"
[413mm]
1-1/8"
[29mm]
18"
[457mm]
34-1/4"
[870mm]
20-1/4"
[514mm]
36"
[914mm]

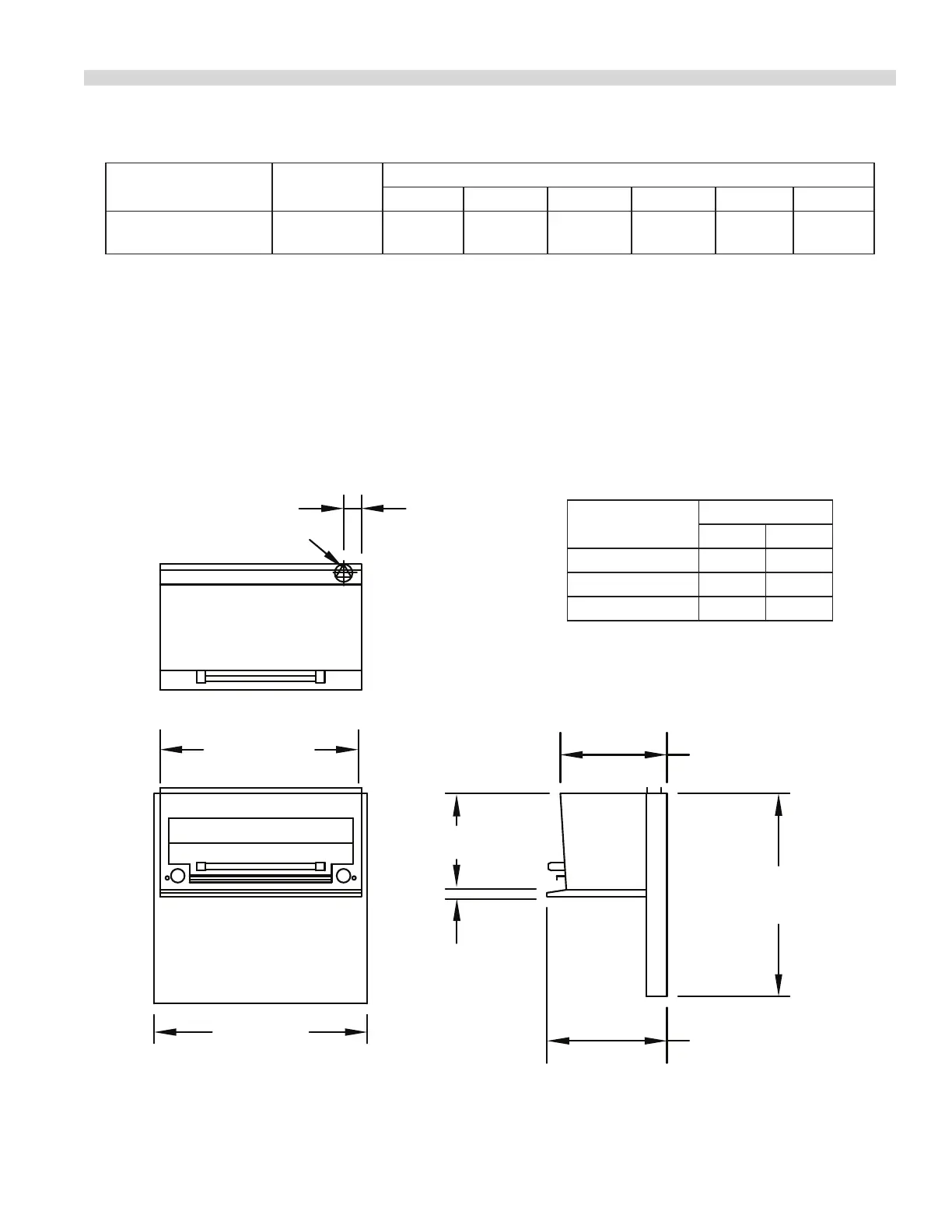

DIMENSIONS AND SPECIFICATIONS, MODELS SERC, SER-680
Model Total Kw Load
TOTAL AMPS
208V/1Ph 208V/3 Ph 240V/1Ph 240V/3 Ph 400 V/3N 415V/3N
SERC, SER-680
wired independently
7 34 29 29 25 15 15
Installation Notes:
Clearances from combustible surfaces should be minimum 7” (178mm) from sides, 2” (51mm) from back.
*Note: 3 phase ratings apply to SERC and SER-680 ordered separately. When a range and salamander are ordered together
it is standard for the salamander to be prewired at the factory to interconnect with the range (single phase). For further
information on ratings and connection options consult the factory.
KW Ratings
Total kW loading is 7.0 kW
Model
Shipping
Cu Ft Lbs/Kg
S/SUERC 11 210/95
S/SUER-686 25 176/80
S/SUER-684 35 209/95
