Garland SS680 SERIES User Manual

Part # 4527853 Rev. 2 (10/18/11) Page 5

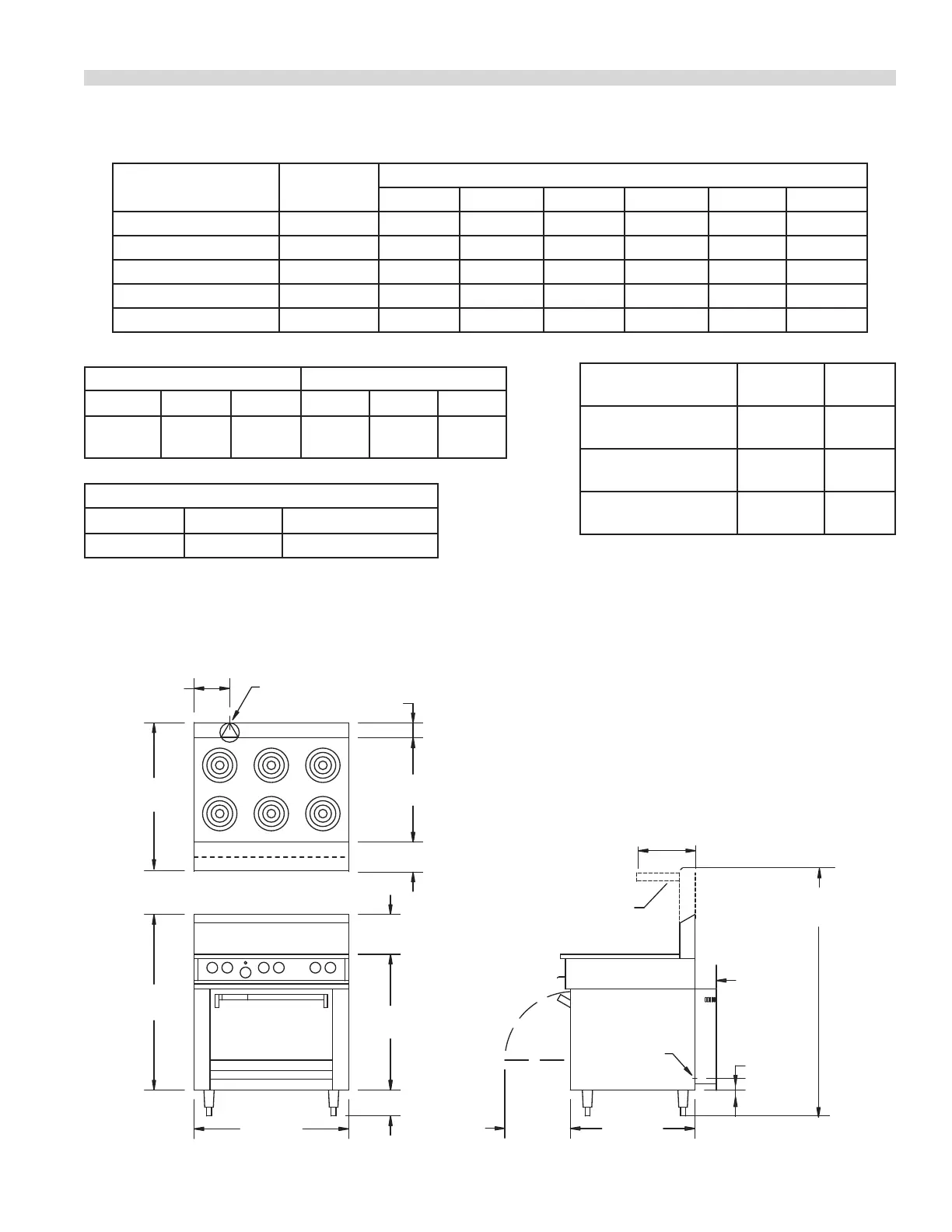

DIMENSIONS AND SPECIFICATIONS, MODELS S,SU & SS686
8-3/8"
[213mm]
34-1/4"
[870 mm]
3-1/2"
[89mm]
24-1/2"
[622mm]
REAR CABLE
ENTRANCE
41"
[1041mm]
9-1/4"
[235mm]
31-3/4"
[806mm]
6"
[152mm]
36"
[914mm]
15-1/4"
[387mm]
29"
[737mm]
3"
[76mm]
4-3/4"
[121mm]
W/OPTIONAL
RC MOTOR
REAR CABLE
ENTRANCE
6"
[152mm]
OPTIONAL
HIGH SHELF
13-5/8"
[346mm]
57-5/8"
[1465mm]
Model
Total Kw
Load
Nominal Amps
208V/1Ph 208V/3 Ph 240V/1Ph 240V/3 Ph 400 V/3N 415V/3N
S686* 15 72 48 62 42 — —
S686RC 16 75 51 64 44 — —
SS/SU686** 19 90 59 78 52 40 38
SS/SU686RC 20 93 62 80 54 40 38
Salamander Broiler*** 7 34 19 29 16 4 4
*Tubular elements; **Sealed -top elements, Model # SS686 in North America; ***Add when wired to range base (SER/SUER-680)
Exterior Dimensions Oven Interior Dimensions
Height Width Depth
†
Height Width Depth
47"
(1194mm)
36"
(914mm)
34-1/4"
(870mm)
13-1/2"
(343mm)
26-1/4"
(667mm)
22"
(559mm)
†
With front rail Note: Shipping Cubic Feet is 58.5
Entry Clearances
Crated Uncrated Uncrated "RC" Model
45" (1143mm) 35" (889mm) 40" (1016mm)
NOTE: Many local codes exist, and it is the responsibility of the
Owner and the Installer to comply with those codes.
Installation
Clearances:
Side Back
Range w/o
Salamander
3"
(76mm)
2"
(51mm)
Range w/
Salamander
7"
(178mm)
2"
(51mm)
Hot Top
10"
(254mm)
—
Ratings:
Tubular Elements: 6-1/2" (165mm): 1250 Watts
8-1/2" (216mm): 2100 Watts
Sealed Elements: 7-1/2" (191mm): 2000 Watts
9" (229mm): 2600 Watts
Hot Tops: (per 12"/305mm section):
Front and Rear sections each 1675 Watts, (3350
Watts total)
Griddle (per 12"/305mm section): 3350 Watts
Standard Oven: 4.85 kW
Convection Oven: 5.0 kW (+0.5kW fan motor; for 5.5kW total)
NOTE: For ranges with convection oven, (models with sux `RC’),
air circulation is required for proper operation of fan motors. These
models must not be dais mounted or installed without legs.
